Crestron DigitalMedia Room Controller DM-RMC-100 User Manual

DigitalMedia™ Room Controller, CAT Crestron DM-RMC-100
Use the following procedure to install the DM-RMC-100.
1. Attach supplied connector plugs to the appropriate cables. Refer to
“Hardware Hookup” which starts on page 21.
2. Attach the included metal mounting plate (2019091) to the
mounting surface using four screws (not supplied).
3. Attach the DM-RMC-100 to the mounting plate using the four
included #06-32 x 1/4" Phillips screws (2007215), as shown in the
illustration below.

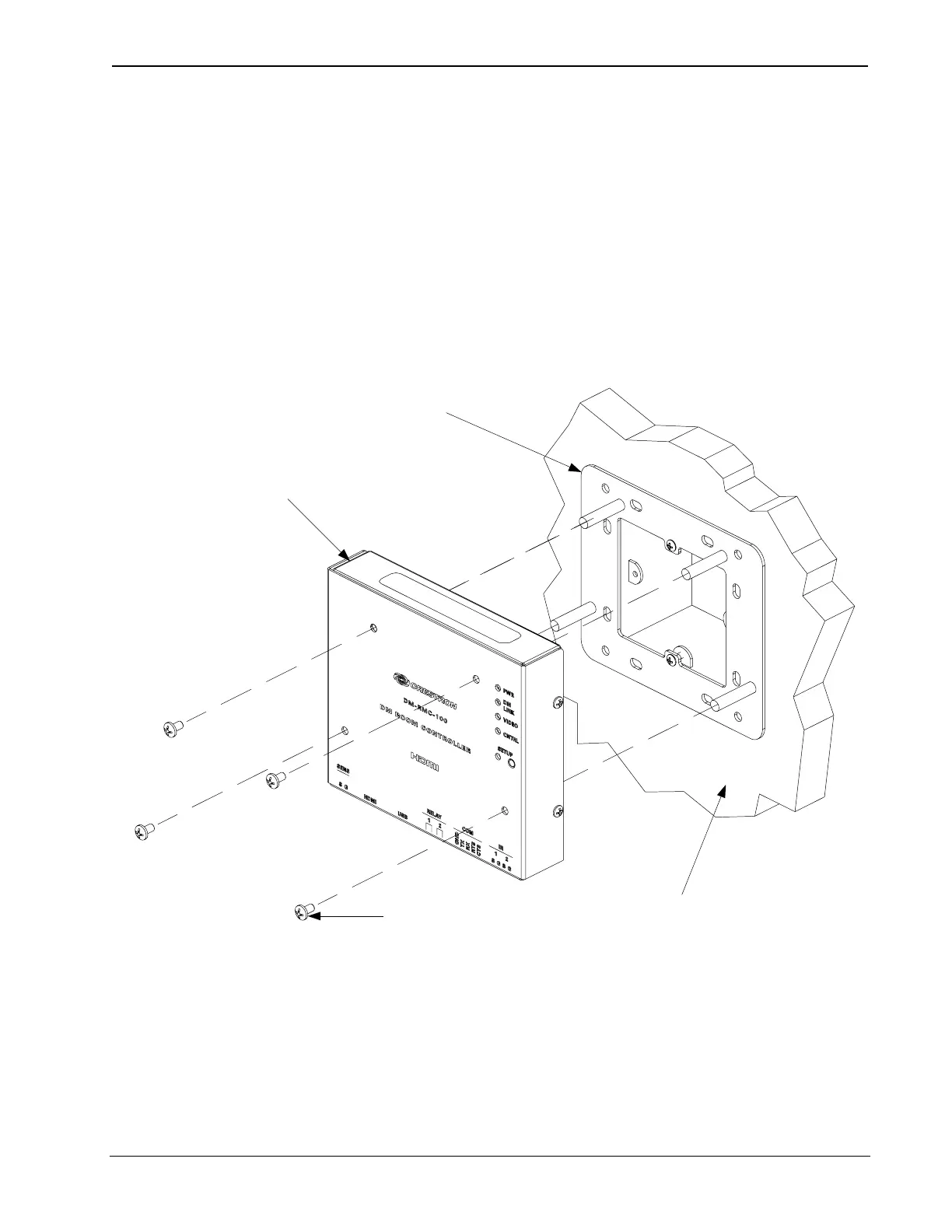

Mounting DM-RMC-100 to Electrical Box
DM-RMC-100
Metal Mounting Plate
(2019091)
Drywall
Screws (4) #06-32 X 1/4"
(2007215)
20 • Room Controller, CAT: DM-RMC-100 Operations & Installation Guide – DOC. 6743-1F

Crestron DigitalMedia Room Controller DM-RMC-100 Specifications

General

Category	Controller
Type	DigitalMedia Room Controller
HDMI Output	1 HDMI output
Ethernet	10/100 Mbps; auto-switching
Control System	Crestron
Operating Temperature	32° to 104° F (0° to 40° C)
Humidity	10% to 90% RH (non-condensing)
IR/Serial	Yes
Relay	Yes
USB	Yes
DM 8G+ Input	1 DM 8G+ input
Analog Audio Output	1 analog stereo output
IR/Serial Port	1 IR/Serial port
Relay Port	1 relay port
USB Port	1 USB port
Input Connectors	DM 8G+
Output Connectors	HDMI, Analog Audio, IR/Serial, Relay
Audio Support	Stereo
Storage Temperature	-4°F to 140°F (-20°C to 60°C)
