Crestron DigitalMedia Room Controller DM-RMC-100 User Manual

DigitalMedia™ Room Controller, CAT Crestron DM-RMC-100
Configuration
Manager
Configuration Manager is the view where programmers “build” a
Crestron control system by selecting hardware from the Device Library.
1. To incorporate the DM-RMC-100 into the system, drag the
DM-RMC-100 from the DigitalMedia | DM Receivers folder of the
Device Library and drop it into either of the following System
Views:
• A compatible output card of a DM switcher
• Directly to a card in the Ethernet slot of the control system
(used without a DM switcher)

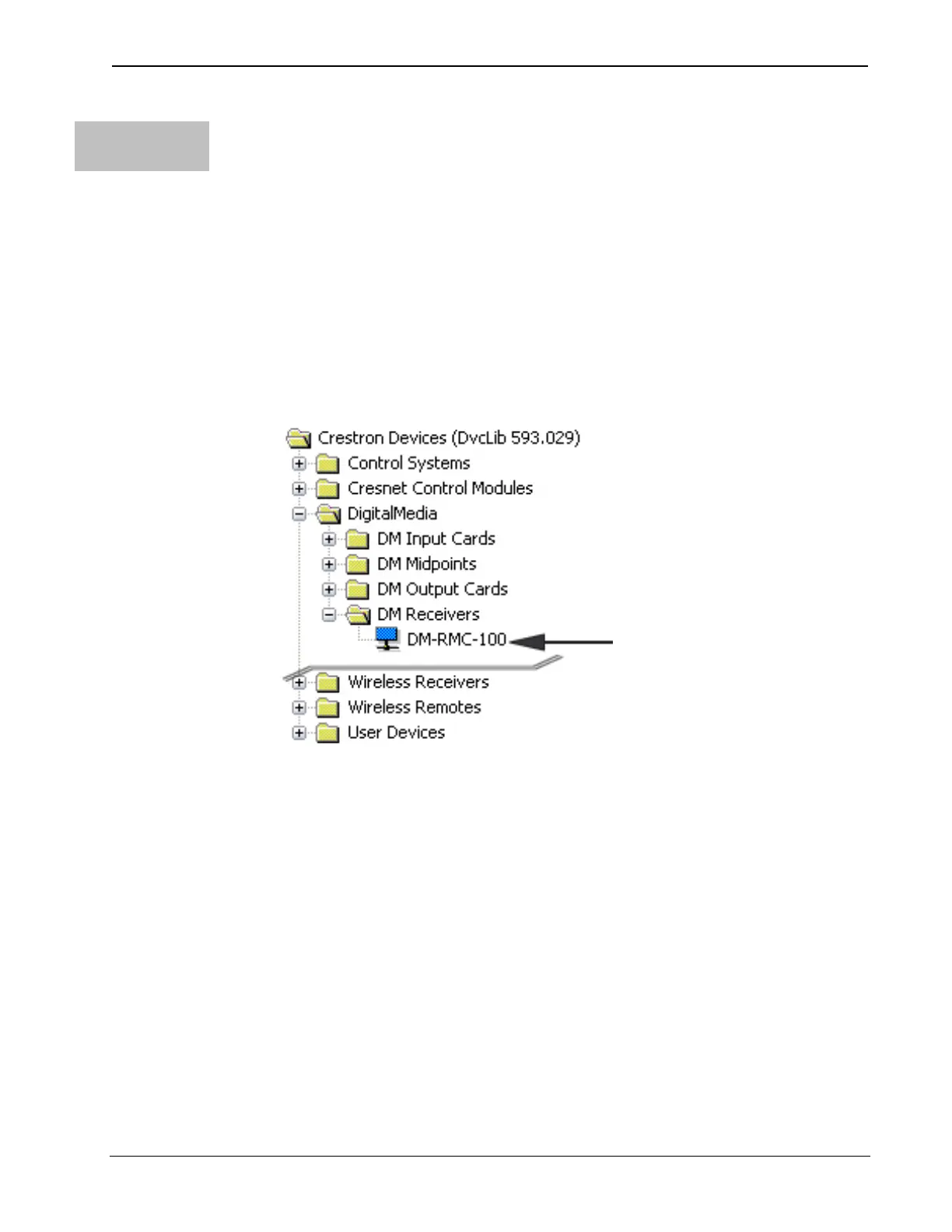

Locating the DM-RMC-100 in the Device Library
The system tree of the control system displays the
DM-RMC-100 in the appropriate slot with a default IP ID or IP ID
as shown in the following illustrations. In the first example, the
DM-RMC-100 is used with the DMCO-22 output card in a
DM-MD8X8 switcher (both sold separately). In the second
example, the DM-RMC-100 is used with the C2ENET-2 card (sold
separately) in an Ethernet slot on the control system.
24 • Room Controller, CAT: DM-RMC-100 Operations & Installation Guide – DOC. 6743-1F

Crestron DigitalMedia Room Controller DM-RMC-100 Specifications

General

Category	Controller
Type	DigitalMedia Room Controller
HDMI Output	1 HDMI output
Ethernet	10/100 Mbps; auto-switching
Control System	Crestron
Operating Temperature	32° to 104° F (0° to 40° C)
Humidity	10% to 90% RH (non-condensing)
IR/Serial	Yes
Relay	Yes
USB	Yes
DM 8G+ Input	1 DM 8G+ input
Analog Audio Output	1 analog stereo output
IR/Serial Port	1 IR/Serial port
Relay Port	1 relay port
USB Port	1 USB port
Input Connectors	DM 8G+
Output Connectors	HDMI, Analog Audio, IR/Serial, Relay
Audio Support	Stereo
Storage Temperature	-4°F to 140°F (-20°C to 60°C)
