Crestron DM-TX-4K-202-C Supplemental Guide

4 • DM-TX-4K-202-C/DM-TX-4K-302-C: 4K DigitalMedia 8G+ Transmitters Supplemental Guide – DOC. 7932A

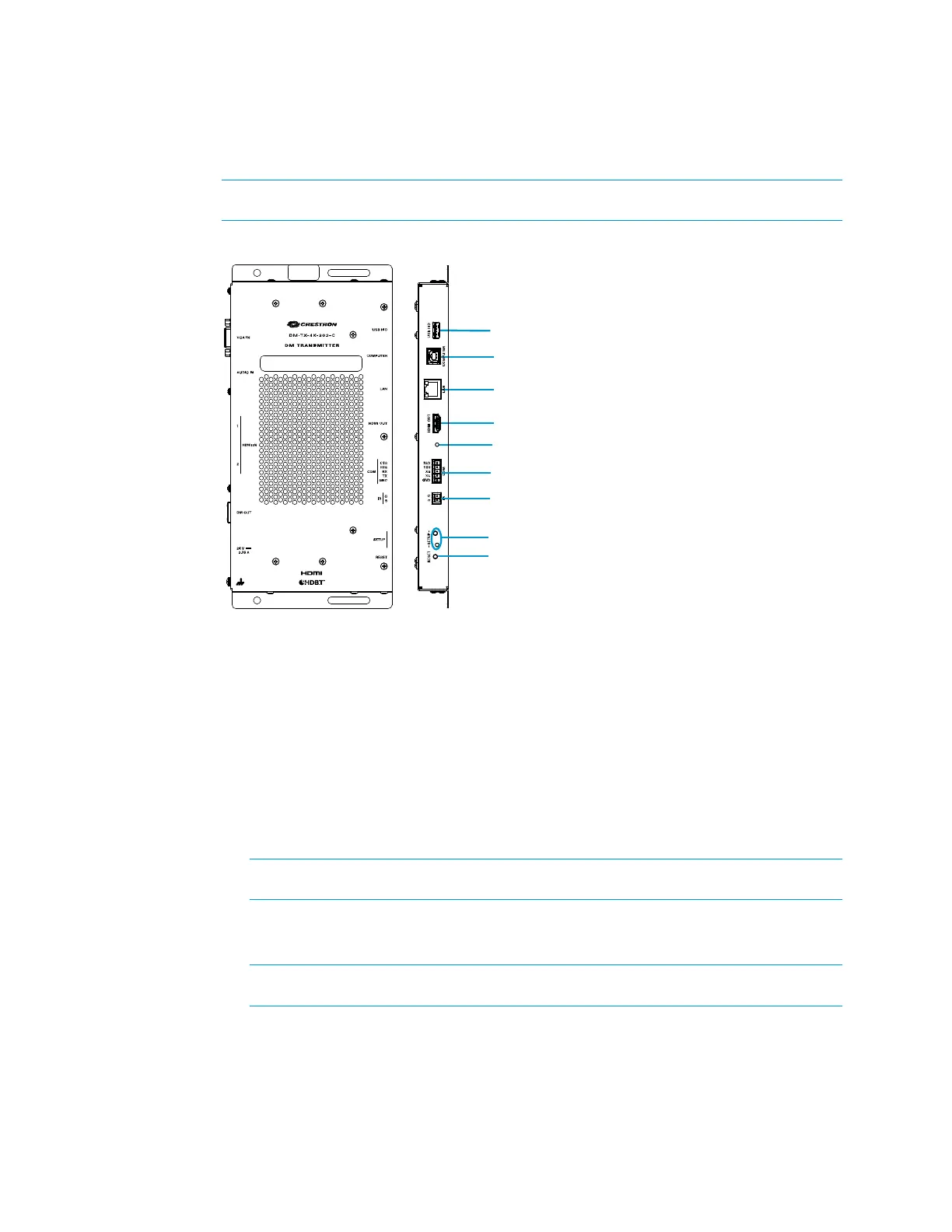

Side View, Right
The following illustration shows the right side of the DM-TX-4K-302-C.
NOTE: The right side of the DM-TX-4K-202-C provides the same connectors, controls, and
indicators as the right side of the DM-TX-4K-302-C.
Side View, Right (DM-TX-4K-302-C Shown)
 USB HID: USB Type A female;
USB 2.0 host port for connection of a mouse, keyboard, or other USB HID compliant
device (USB signal extension and routing), or for connection of a Crestron TT-100 series
device (Crestron Connect It™ Cable Caddy. sold separately)
 COMPUTER: USB Type B female;
USB 2.0 device port for computer console (setup) or for connection to a computer or
other USB HID compliant host (USB signal extension and routing)
 LAN: 8-pin RJ-45 female;
10BASE-T/100BASE-TX Ethernet port;
Green LED indicates Ethernet link status;
Amber LED indicates Ethernet activity
NOTE: Do not connect the LAN port to an Ethernet switch if the DM OUT port
connects to a DigitalMedia™ switcher.
 HDMI OUT: 19-pin Type A HDMI female;
HDMI digital video/audio output (DVI compatible)
NOTE: The HDMI OUT port requires an appropriate adapter or interface cable to
accommodate a DVI signal. The CBL-HD-DVI interface cable is available separately.
 HDMI OUT LED: Green LED, indicates HDMI signal presence at the HDMI output
 COM: 5-pin 3.5 mm detachable terminal block;
Bidirectional RS-232 port;
Up to 115.2k baud, hardware and software handshaking support










Crestron DM-TX-4K-202-C Specifications

General

Brand	Crestron
Model	DM-TX-4K-202-C
Category	Transmitter
Language	English
