Crestron TPS-6L Isys
®
5.7” Wall Mount Touchpanel

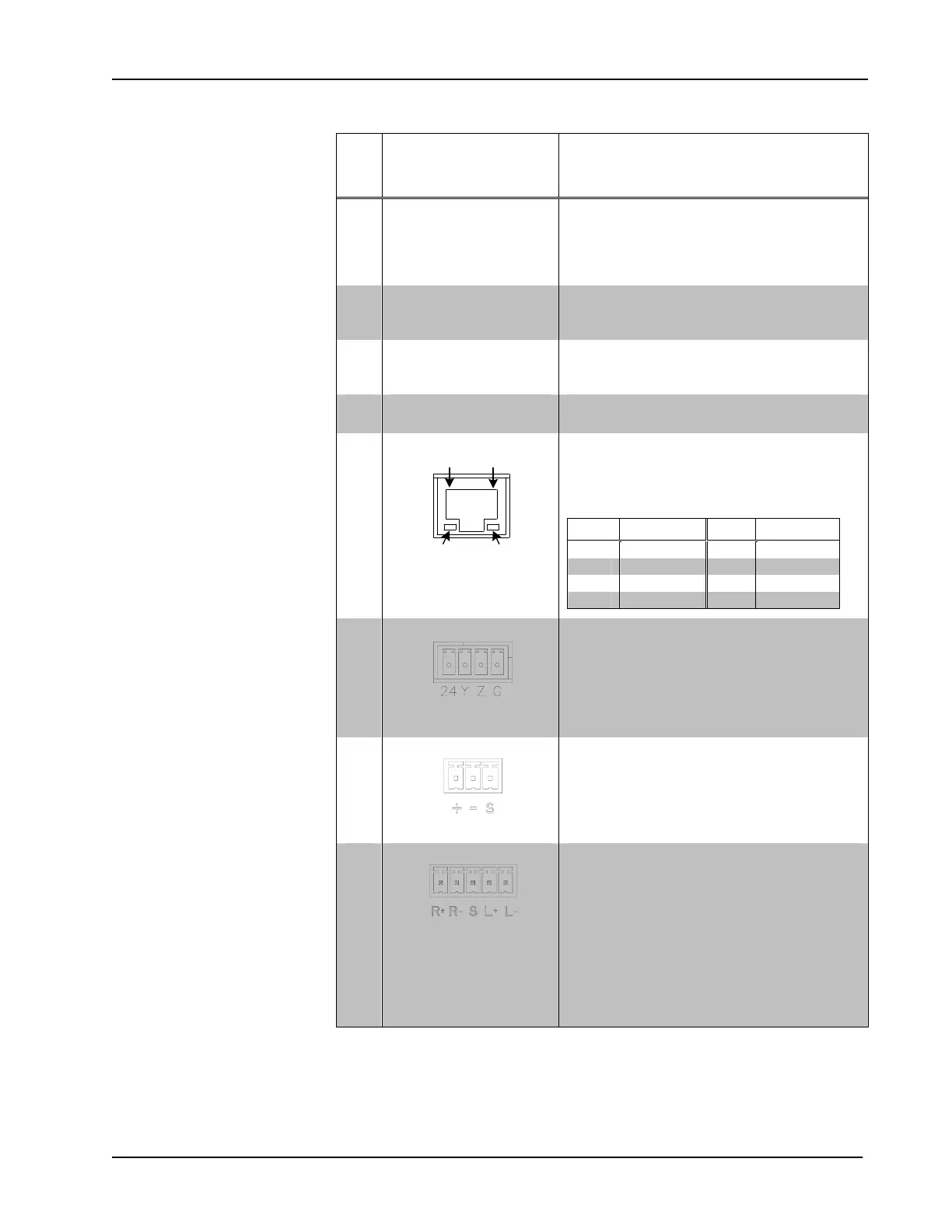

Connectors, Controls & Indicators
#
CONNECTORS
1
,
CONTROLS &
INDICATORS
DESCRIPTION
1 BUTTONS
(12) Optional engravable pushbuttons with
available backlighting. A non-pushbutton
bezel is also provided if the buttons are not
desired. Refer to “Pushbutton Options” on
page 2 for additional details.
2 MICROPHONE
(1) Built-in microphone behind the bezel
supports programmable intercom
functionality.
3 LIGHT SENSOR
Programmable photosensor for automatic
backlight dimming. Refer to “Auto Brightness
Control” on page 25 for additional information.
4 RESET BUTTON
2
(1) Miniature pushbutton behind faceplate,
used to reset the touchpanel.
5
LAN
GREEN
LED
YELLOW
LED
PIN 8
PIN 1
(1) 8-wire RJ-45 with two LED indicators;
10BaseT/100BaseTX Ethernet port;
Green LED indicates link status;
Yellow LED indicates Ethernet activity
PIN SIGNAL PIN SIGNAL
1 TX + 5 N/C
2 TX - 6 RC -
3 RC+ 7 N/C
4 N/C 8 N/C
6
NET
(1) Four-position terminal block connector for
data and power. Connects to Cresnet control
network.
Pin 1 (24) Power
Pin 2 (Y) Data
Pin 3 (Z) Data
Pin 4 (G) Ground
7
MIC OUT
(1) 3-pin 3.5mm detachable terminal block;
Balanced mono line level output;
Output impedance: 600 Ω balanced,
300 Ω unbalanced;
Maximum output level: 2 V
rms
balanced,
1 V
rms
unbalanced
8
AUDIO INPUT
(1) 5-pin 3.5mm detachable terminal block;
Balanced/unbalanced stereo (summed to
mono) line level input (requires SPK-6L
speaker kit, sold separately);
Input impedance: 10 kΩ balanced,
5 kΩ unbalanced;
Maximum input level: 2 V
rms
balanced/unbalanced;
Normally connects to a Crestron CAT5
balanced audio source via CresCAT cable
3
;
Maximum CAT5 cable length: 1000 feet
(Continued on following page)
Operations & Installation Guide – DOC. 6630A Isys
®
5.7” Wall Mount Touchpanel: TPS-6L • 9
