Product Manual — Doc. 8550E TSW-70 Series • 157
The touch screen attempts to connect to the WAP using the provided credentials. If a connection
is established, connection details for the WAPare shown with a green check mark to the left of
Current Connection.

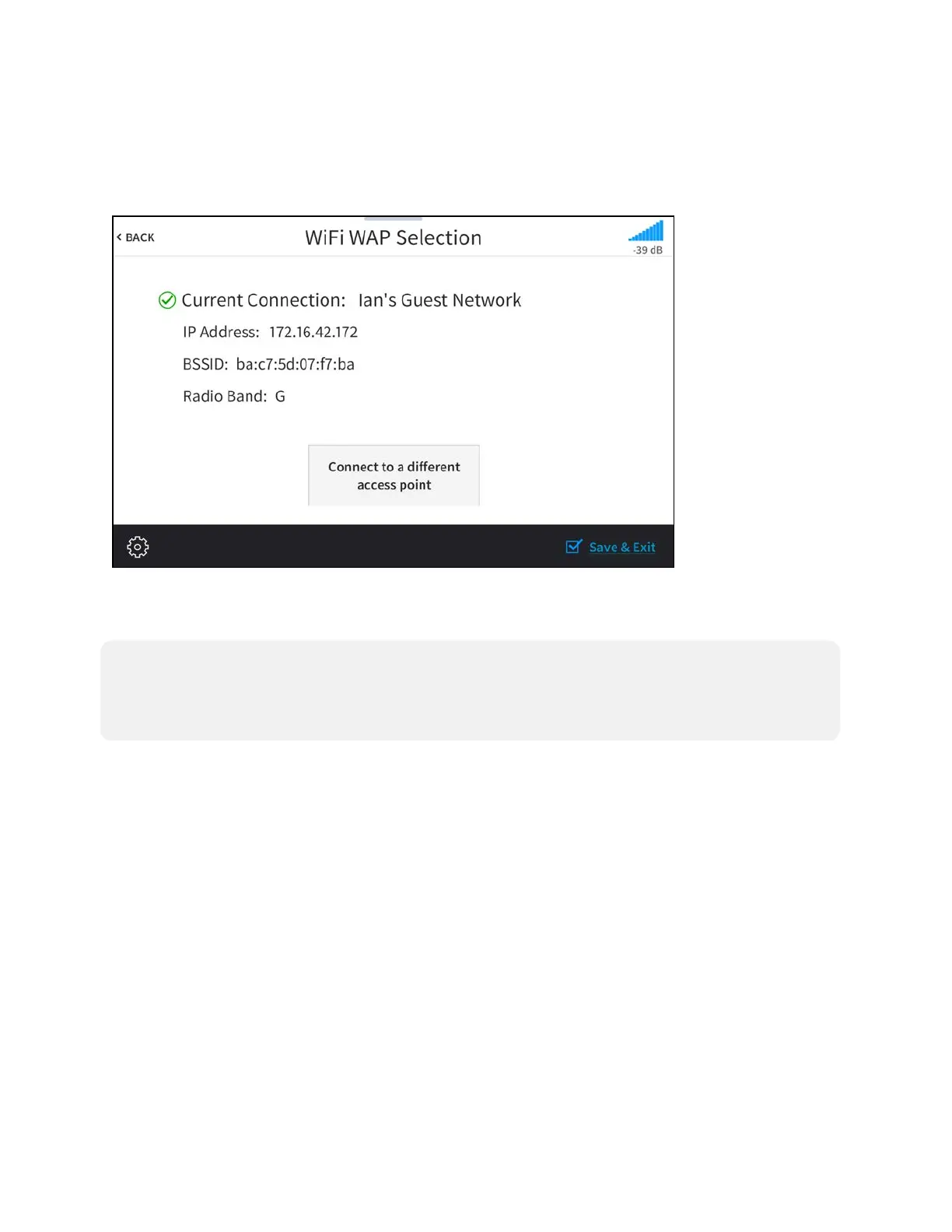

Wi-FiWAPSelection Screen (Connection Successful)
If the connection fails, a failure message is displayed. Tap Connect to a different access point to
return to the Connect to a Wi-Fi Access Point (1-2-3) screen.
NOTE: If four WAPs have already been assigned, the Wi-Fi WAPSelection screen indicates that
the WAP list is full. Tap Delete an access point? to display the Manage Wi-Fi Access Points
screen, where an existing WAP may be deleted, or tap < BACK to cancel adding the new WAP.
For more information, refer to Manage Wi-Fi AccessPoints (on the next page).
Tap < BACK to return to the Wi-Fi Setup screen.
