Isys™ 5.7” Wireless Touchpanels Crestron TPS-6X Series
In VT Pro-e, the Compress checkbox permits the image to be compressed when
compiling. This conversion may cause the loss of some subtle shading. To
compensate for this, use the dithering to simulate the original shading. Check your
image with each of the available dithering types to determine which will deliver the
best quality image.

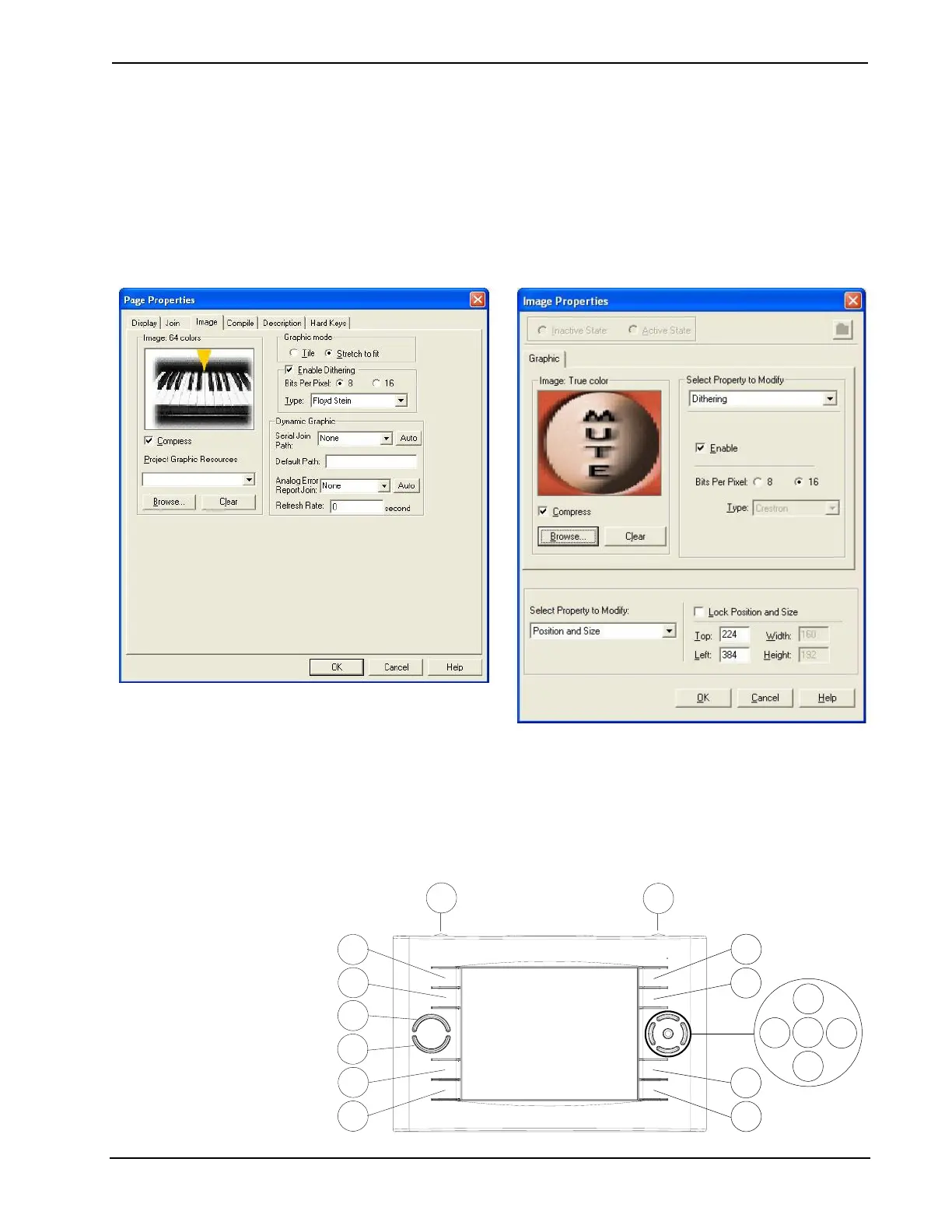

Dithering type selection can be accessed from the “Page Properties” or “Image
Properties” windows in VT-Pro-e. Refer to the following illustrations.
VT Pro-e “Page Properties” Window – Bit Depth Selection VT Pro-e “Image Properties” Window – Bit Depth Selection
Pushbutton Programming
Any of the buttons can be programmed to access any frequently used command.
Each button has a permanently fixed digital join number. Refer to the following
illustration for their assigned join numbers. A description for each button signal is
described in the SIMPL Windows help file (F1).
Pushbutton Layout and Join Number Assignment
7
8
5
6
1
2
3
4
9
10
14
15
11
16
12
13
17
48 • Isys™ 5.7” Wireless Touchpanels: TPS-6X Series Operations Guide – DOC. 6875B
