Isys™ 5.7” Wireless Touchpanels Crestron TPS-6X Series
DIAGNOSTICS
The Diagnostics button on the MAIN MENU should only be used under the
supervision of a Crestron customer service representative during telephone support.

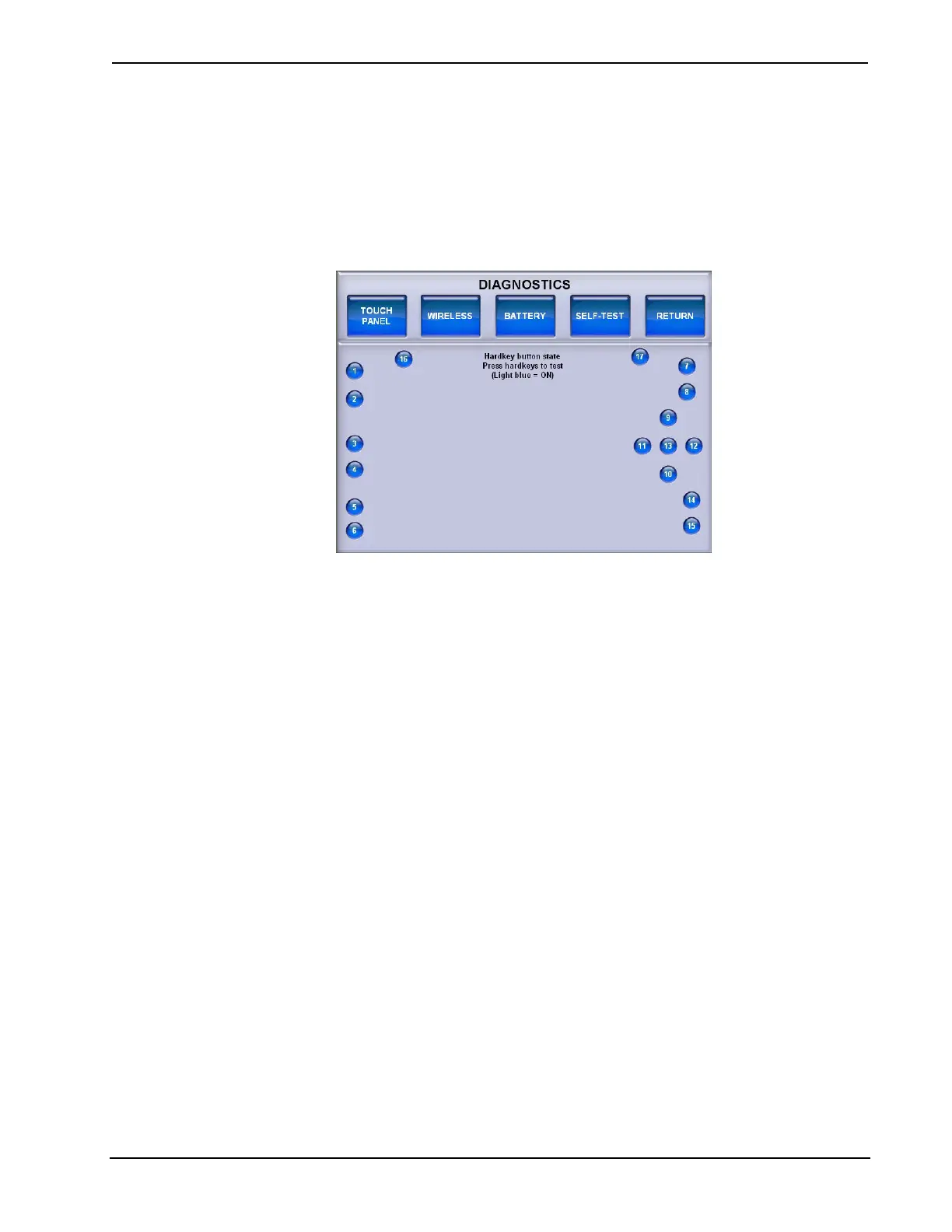

Many options available on the DIAGNOSTICS menu, shown in the following
illustration, are numeric in nature and their interpretation is beyond the scope of this
manual.
DIAGNOSTICS Menu
Hardware Hookup
The TPS-6X comes in a soft felt bag to protect it during shipping.
The TPS-6X does not require any connections for wireless operation but does need
to be acquired by a CEN(I)-HPRFGW gateway (sold separately). Refer to
“WIRELESS” which starts on page 27 and to the “Operation” section of the latest
version of the CEN-HPRFGW High Powered RF Gateway Operations & Installation
Guide (Doc. 6587) for details.
For Cresnet or Ethernet connection or to upgrade touchpanel firmware, the TPS-6X
must be placed on the TPS-6X-DS (or with TPS-6XNL models, the TPS-6XNL-DS)
Docking Station, which must be connected to the TPS-6X IMCW Interface Module
(both included), which in turn must be connected to a control system via Cresnet or
Ethernet. For details, refer to the latest version of the TPS-6X-DS & TPS-6XNL-DS
Operations Guide (Doc. 6876) and the TPS-6X-IMCW Installation Guide
(Doc. 6874).
Make the necessary connections as called out in the illustrations on the following
pages. Refer to “Network Wiring” on page 12 before attaching the 4-position
terminal block connector. Apply power after all connections have been made.
When making connections to the TPS-6X-IMCW, use Crestron power supplies for
Crestron equipment.
To mount the TPS-6X, the touchpanel must first be positioned onto the docking
station at a slight angle to latch the top portion of the docking station onto the
touchpanel. Magnets on the TPS-6X-DS (and TPS-6XNL-DS) attach to metal plates
installed on the TPS-6X to secure the touchpanel in place (refer to the following
illustration).
36 • Isys™ 5.7” Wireless Touchpanels: TPS-6X Series Operations Guide – DOC. 6875B
