Crestron TPS-6X Series Isys™ 5.7” Wireless Touchpanels

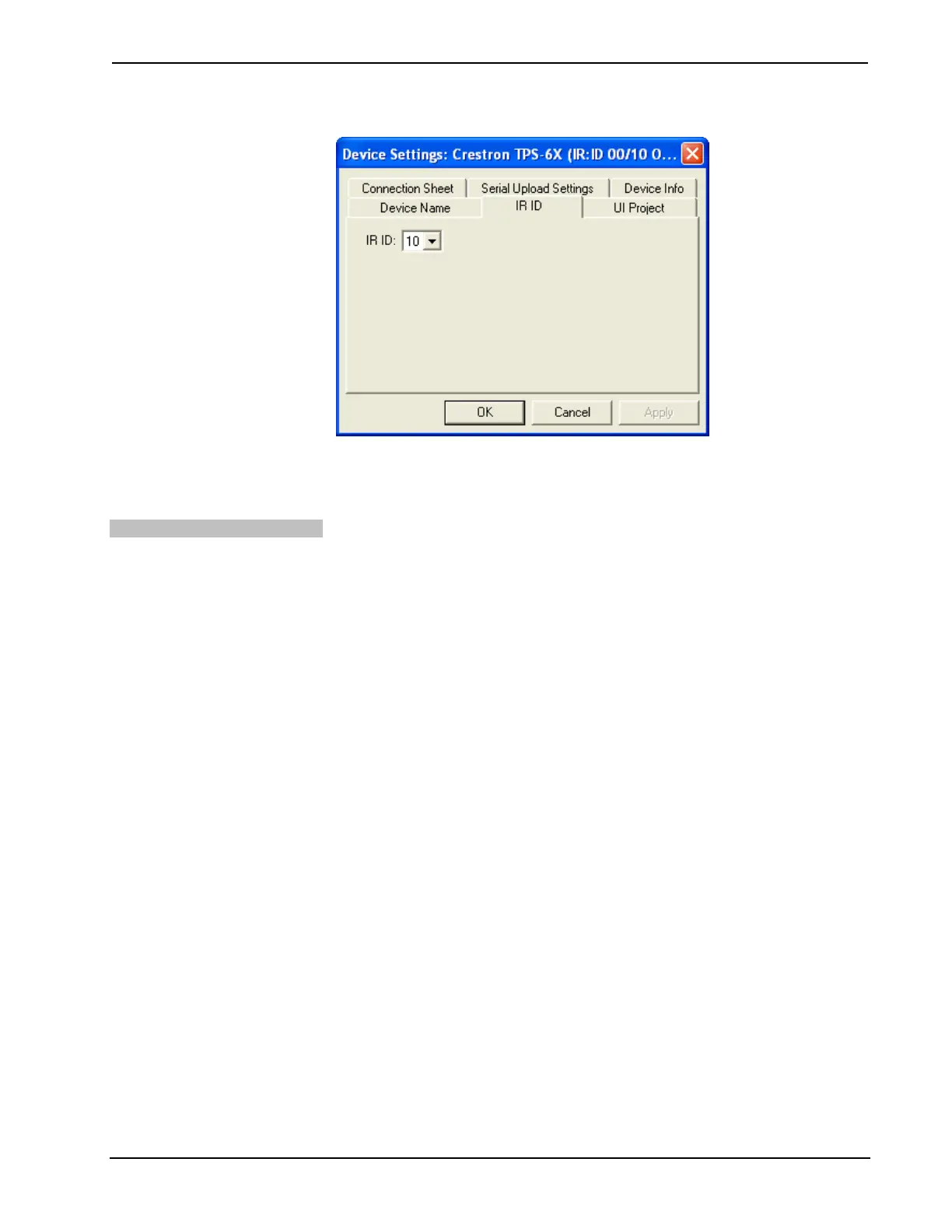

“TPS-6X (IR) Device Settings” Window
5. The ID code specified in the SIMPL Windows program must match the Net
ID, IP ID, RF ID or IR ID of each unit. Refer to “Identity Code” which
starts on page 12.
Program Manager
Program Manager is the view where programmers “program” a Crestron control
system by assigning signals to symbols.
The symbol can be viewed by double clicking on the icon or dragging it into Detail
View. Each signal in the symbol is described in the SIMPL Windows help file (F1).
Programming with VisionTools Pro-e
Touchpanel screens should be created in VisionTools Pro-e (VT Pro-e) to allow
switching of source signals to desired outputs as well as selection of the system
mode. There are no special programming requirements to use the functions of the
TPS-6X in a room control system.
RF or IR Operation
Using VT Pro-e, the TPS-6X can be set to communicate via either RF or IR. This
selection is made using the Panel Type drop down menu at the time a new TPS-6X
project is created, as shown in the following illustration.
Operations Guide – DOC. 6875B Isys™ 5.7” Wireless Touchpanels: TPS-6X Series • 45
