114 • TS-70 Series Product Manual — Doc. 8555F
Wi-Fi Test
Tap Wi-FiTest on the Diagnostics & Advanced screen to display the Wi-FiDiagnostics screen.

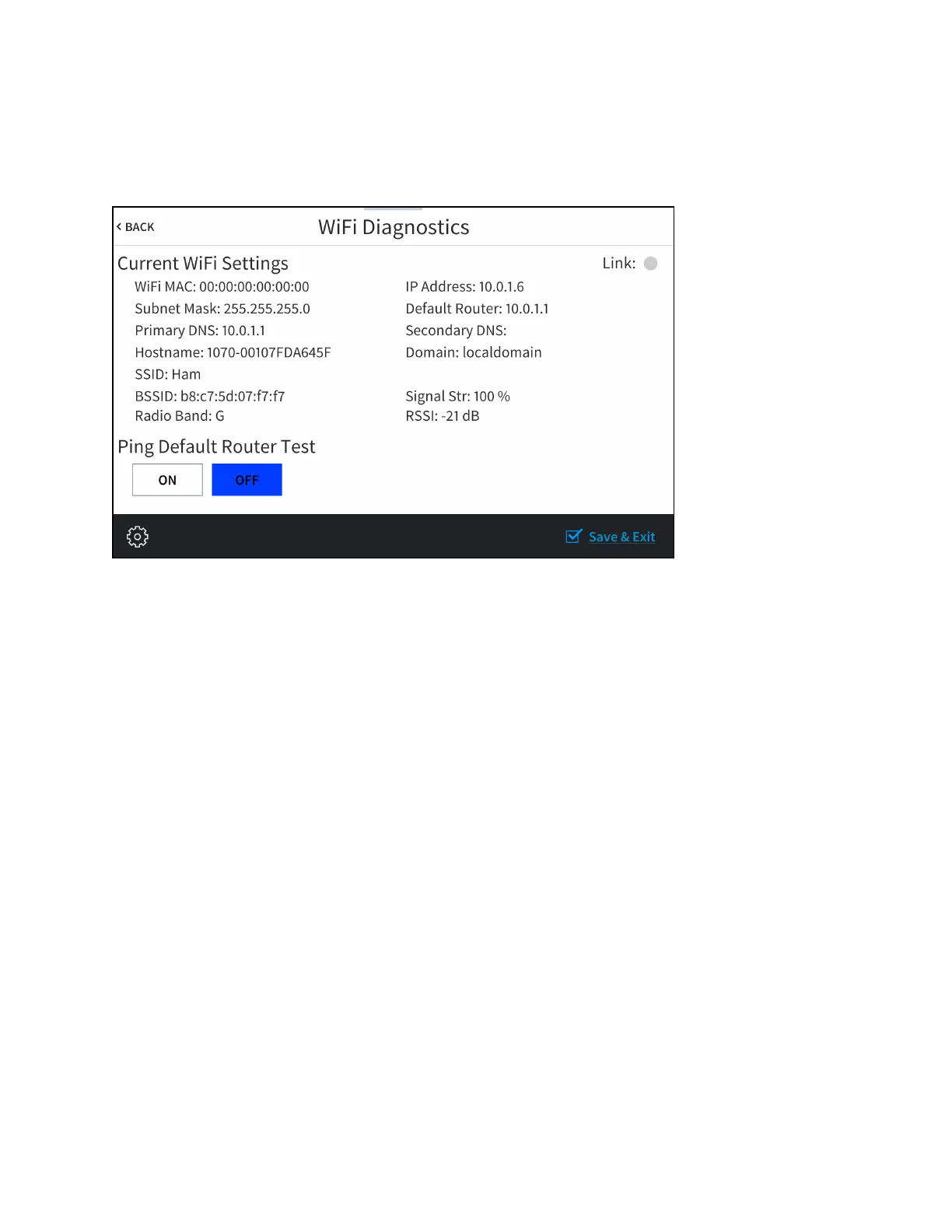

Wi-Fi Diagnostics Screen
Use the Wi-Fi Diagnostics screen to view and test the Wi-Fi network connection. The Ethernet
Diagnostics screen displays the Wi-Fi network MAC and IP addresses, subnet mask address,
default router address, primary and secondary DNS addresses, host name, and domain name. A
Link indicator is provided to indicate the status of the Wi-Fi network connection. (Green
indicates that the Wi-Fi network connection is active.)
The Wi-Fi Diagnostics screen also provides controls to test the connection to the default router.
Tap On to begin the test and Off to end the test.
During the router test, the touch screen pings the default router. If the router is communicating
with the touch screen, connection data is displayed below the ping test controls within five
seconds. The connection data updates after every successive ping.
Tap < BACK to return to the Diagnostics & Advanced screen.

Crestron TS-1070 Specifications

General

Resolution	1280 x 800 pixels
Touch Technology	Projective capacitive
Power over Ethernet	Yes
Wi-Fi	Yes
Camera	No
Microphone	Dual, front-facing
Ethernet	10/100/1000 Mbps
Bluetooth	No
Speakers	Yes
Operating System	Android™ 9
Processor	Quad-core
Memory	2 GB RAM
Storage	16 GB Flash
Connectivity	Ethernet, Wi-Fi
Display Size	10.1 inches
Mounting	Wall or Tabletop
Power Supply	PoE
