Product Manual — Doc. 8555F TS-70 Series • 121
Status
Select the Status tab on the top left of the configuration interface to display selections for
viewing the status of device, network, and control system settings.
Select on a selection name to expand the selection. If the selection is expanded, select the
selection name again to collapse the section.

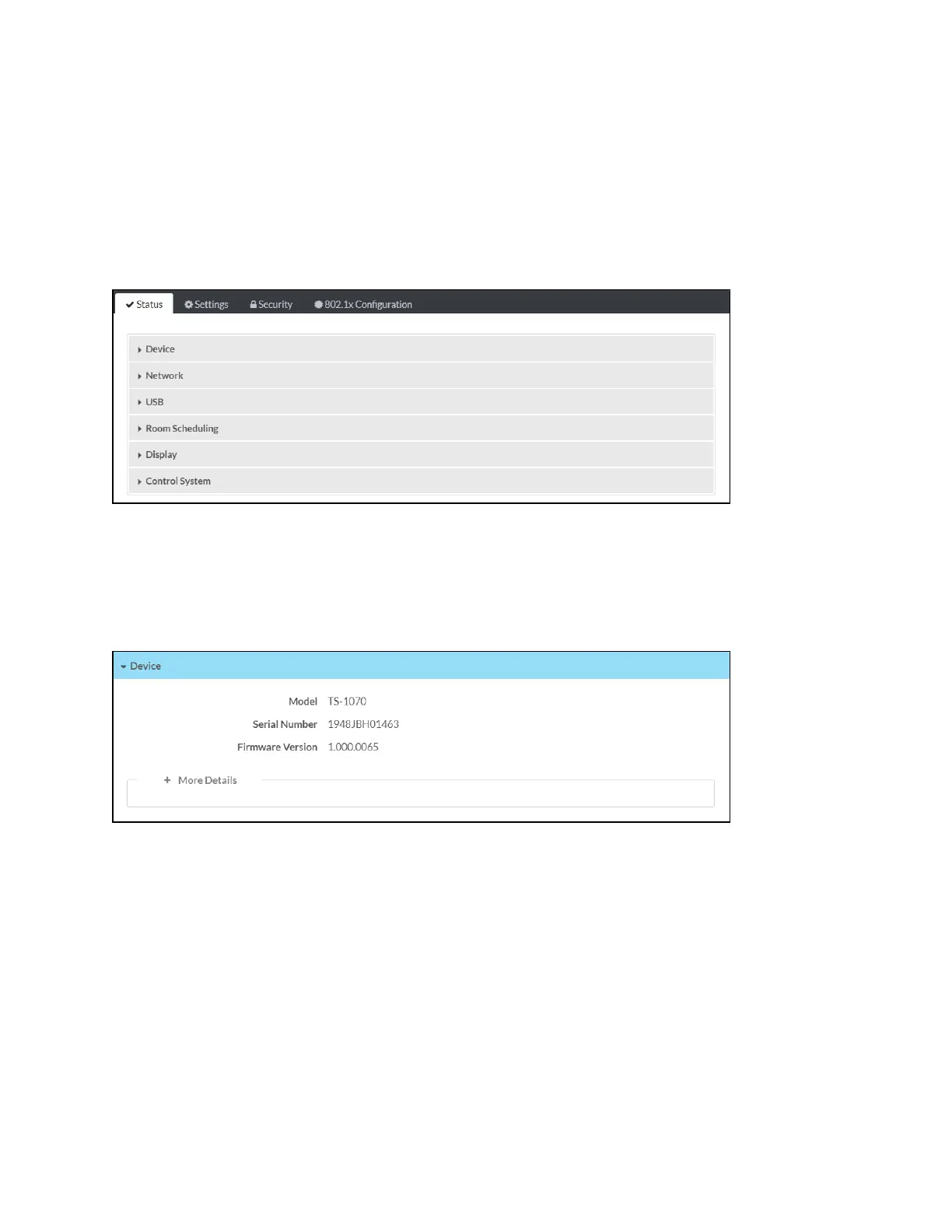

Status Tab Selections
Each selection is described in the sections that follow.
Device
Select Device to view general device information.
Status Tab - Device
The following Device information is displayed:
l
Model: The touch screen model name
l
Serial Number: The touch screen serial number
l
Firmware Version: The firmware version loaded onto the touch screen
Select + More details at the bottom of the Device tab to display an expanded section that shows
additional touch screen information. If + More Details is selected, select - Less details to collapse
the section.
