Crestron UC-SB1 User Manual

Mount on a Wall
The soundbar includes anchors that are suitable for mounting it on sheetrock walls up to 1/2 in. (13 mm) thickness. Masonry and other materials may
require additional installer-supplied mounting hardware.
NOTE: When mounting on a wall beneath a display device, leave 3/4 in. (minimum) clearance above the top of the soundbar. Use the included template
to allow for sufficient clearance between the soundbar and display device.
The following tools are required to mount the soundbar:
l Drywall saw (not included)
l Drill with 5/16 in. bit (not included)
A template is included to provide drill hole locations for the included mounting hardware.
1. Attach the template to the desired mounting location with the template's center reference line at the center of the desired location.
NOTE:Use the center reference hole of the template as a guide to attach the template.

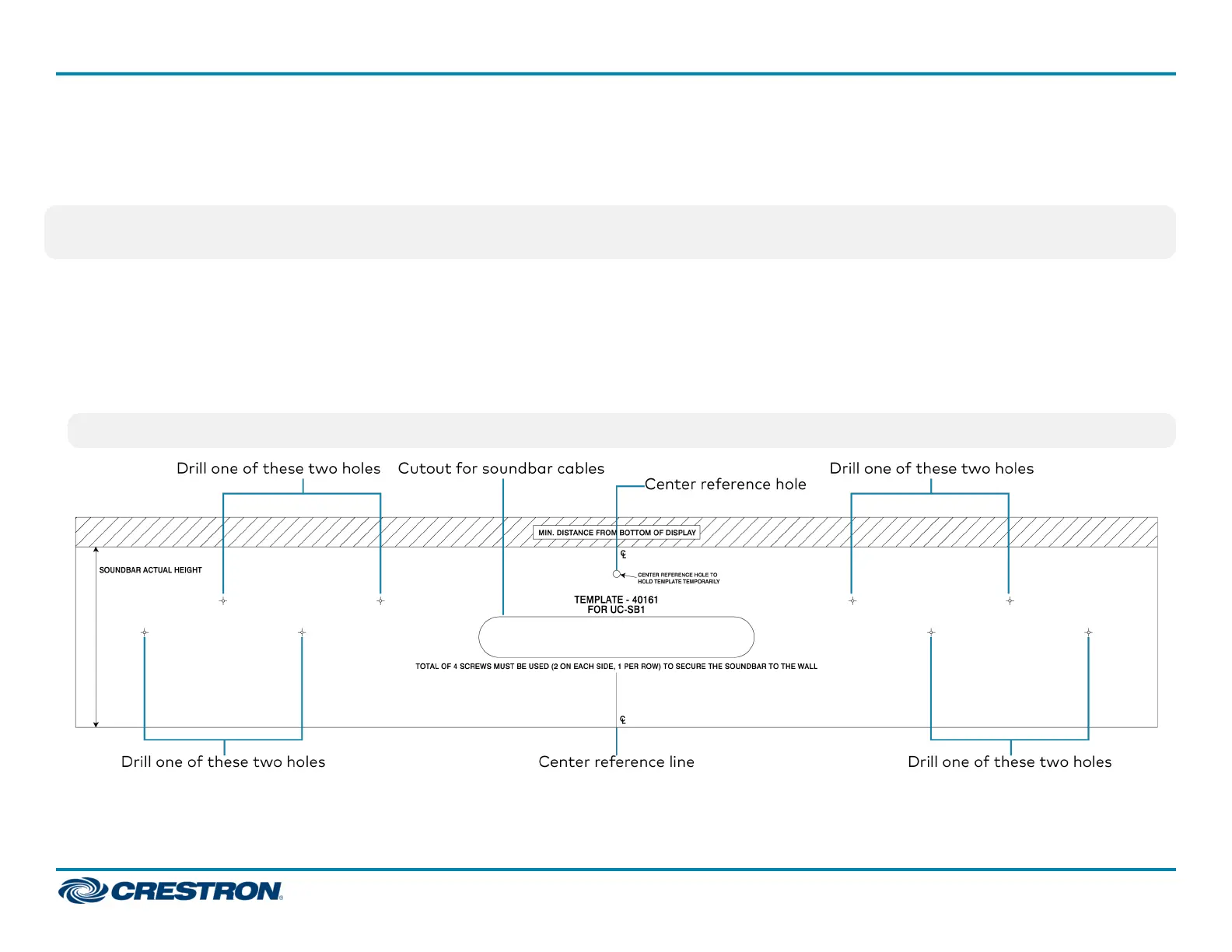

2. Drill two pilot holes on each side of the center reference line as shown in the previous diagram. Each side should have one pilot hole drilled in each row
of the template.
3
UC-SB1
QuickStart
UC Video Conference Smart Soundbar

Crestron UC-SB1 Specifications

General

Product type	Speaker
Certification	CE, IC, UL 62368‑1, CSA C22.2 62368‑1, EN 62368‑1, IEC 62368‑1, FCC Part 15 Class B, ICES‑003 Issue 5 Class B, EN55022:2010 Class B, AS/NZS CISPR22:2010 Class B, AS/NZS CISPR 22:2010 Class B, EN55024:2010, EN61000‑3‑2:2014, EN61000‑3‑3:2013, RoHS compliant
Product color	Black, Grey
Placement supported	Desk
Operating temperature (T-T)	5 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
AC input voltage	100‑240V V
AC input frequency	50 - 60 Hz
Heat dissipation	66 BTU/h
USB port	Yes
Bluetooth	No
HDMI ports quantity	-
Connectivity technology	Wired
Woofer diameter (subwoofer)	3 \
Woofer diameter	76 mm
Tweeter diameter	25 mm
Number of tweeter drivers	2
Soundbar speaker RMS power	- W
Woofer diameter (imperial)	2 \
Signal-to-Noise Ratio (SNR)	91 dB
Tweeter diameter (imperial)	1 \
RMS rated power	20 W
Audio output channels	- channels

Weight and Dimensions

Depth	100 mm
Width	1108 mm
Height	118 mm
Weight	6800 g
