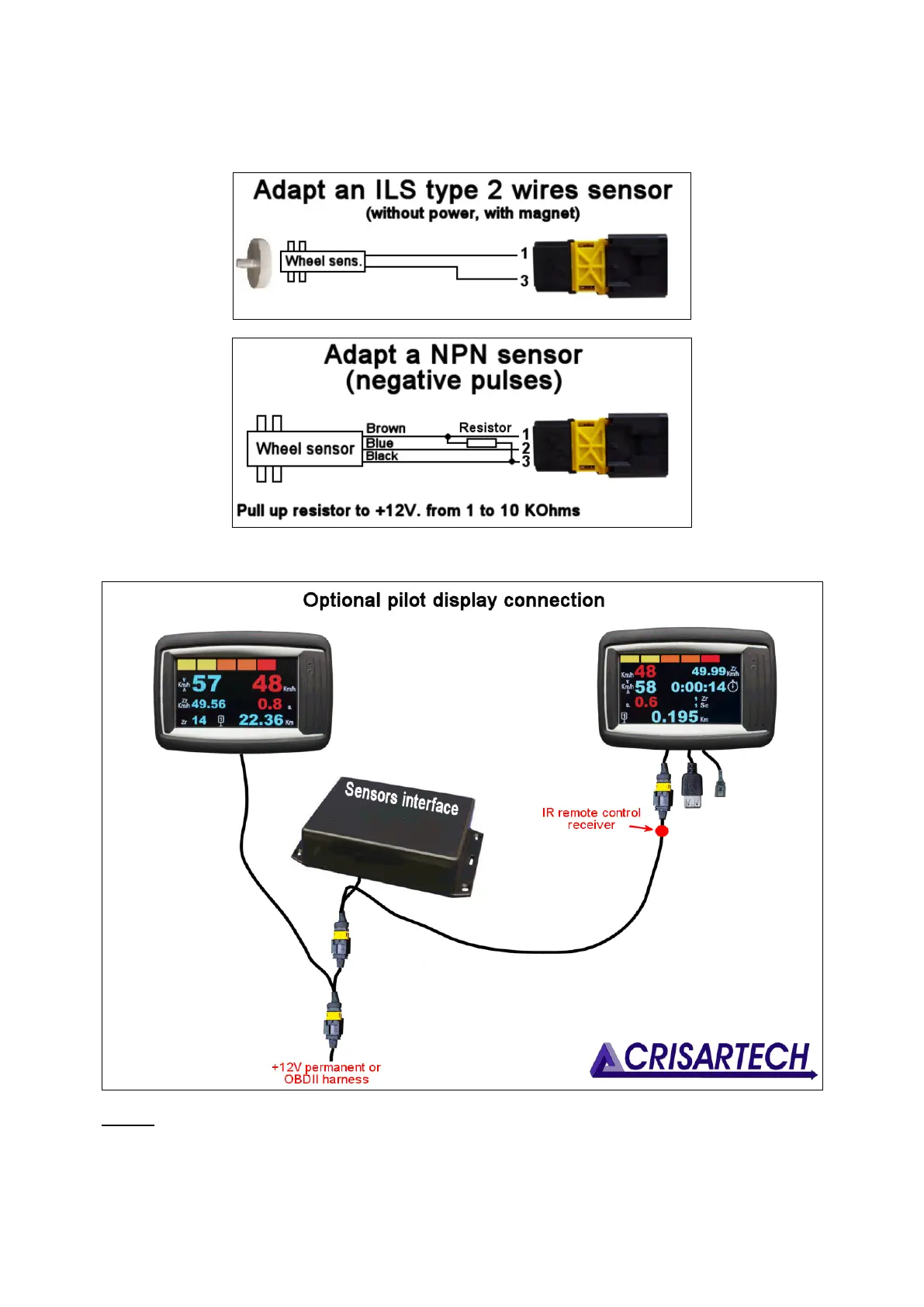

The resistance to put between the blue wire and the mass is 750 Ohms 1/4 watt for the sensors:
- Blunik Carlo Gavazzi inductive,
- Inductive Terratrip T005 ...
The optional "pilot" display connects to the 4-pin connector located to the power supply:
Caution: the infrared receiver for remote control is placed on the harness, just below the display connector.
It must be ensured that lens is not masked and turned towards the co-pilot so that the infrared remote
control is fully operational.
