The bob tilt

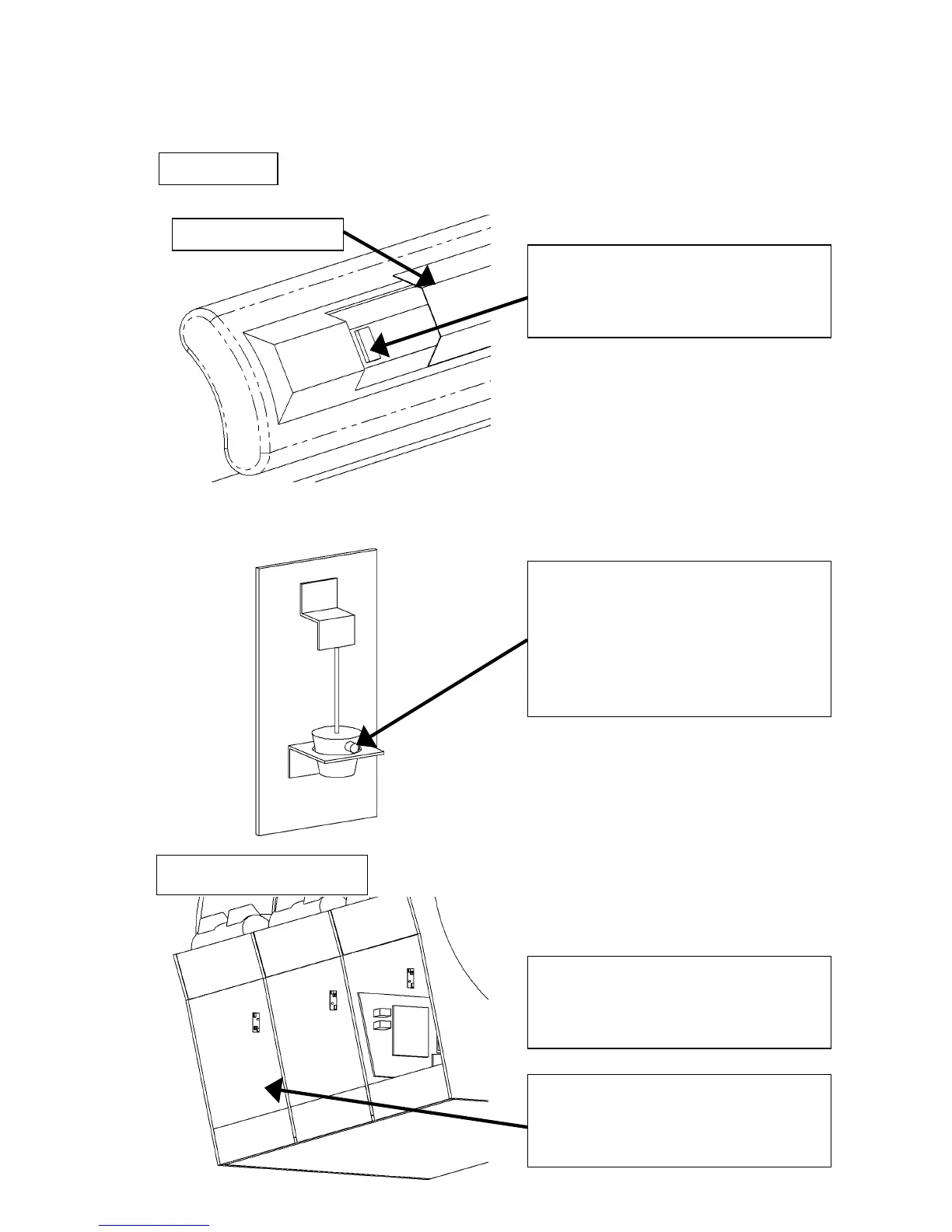

The bob tilt is housed in the top sign as
shown and can be reached by removing
the access panel on the rear of the top
sign.
To adjust the bob tilt setting, loosen the
locking screw on the side of the bob
which will allow it to be slid up the
shaft to decrease sensitivity or down
the shaft to increase sensitivity. Ensure
that the locking screw is tightened after
any adjustment.
The intelligent tilt
Piezo-electric sensors are fitted either
underneath the win chute or on special
detector plates below the playfield
riser.
The sensors are connected to small
driver P.C.B’s sited on the LH
bulkhead of each section behind the
payout door as shown.
Topsign access door
