Spinna Winna Operators Manual Part No. 990xxx Issue 1
Page 21 of 31
5.7 Replacing a halogen fuse or mains supply fuse.
You will need…….
• Payout door access door keys.
• Halogen fuse part No. FU100XXX.
• Mains supply fuse part No. FU100049.
Note: use only replacement parts of the correct rating specified by Cromptons. Using
parts of the wrong type could cause damage.

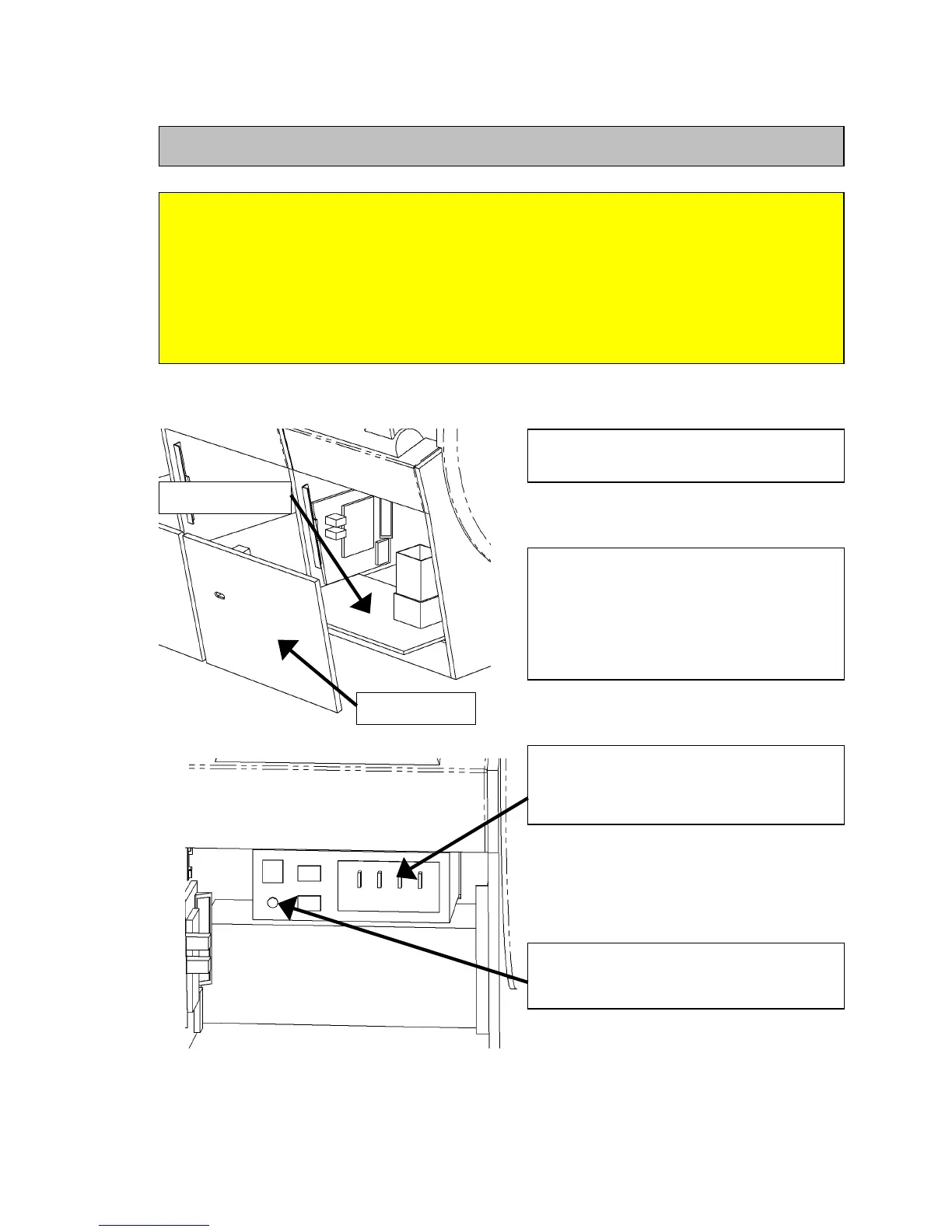

Open the payout door to the RH section.
Disconnect and slide out the payout
module to gain access to the fuses
mounted on the power box at the back of
the cabinet.
Disconnect the machine from the mains
supply before starting this procedure.
Payout door
Payout module
The fuses shown here are the halogen
fuses which are mounted in sockets fitted
onto a PCB.
The fuse shown here is the mains entry
fuse and is fitted inside a screw-in holder
To Next Page
