Cromptons Spinna Winna - Replacing a Playfield Fluorescent Lamp

Spinna Winna Operators Manual Part No. 990xxx Issue 1
Page 18 of 31
3.4 Replacing a playfield florescent lamp.
You will need…………
• A Philips screwdriver
• A 13mm open end spanner
•
Disconnect the machine from the mains
supply before starting this procedure.

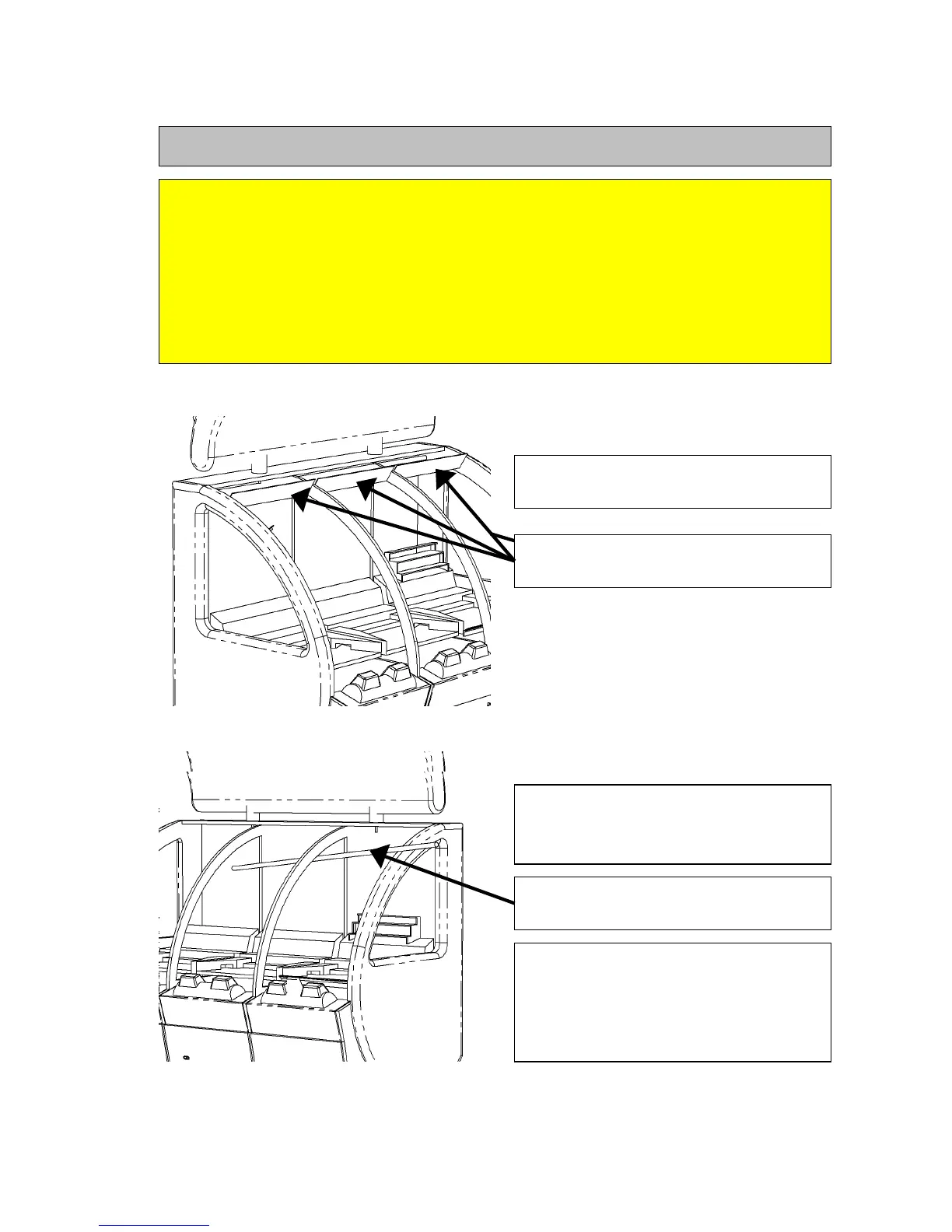

Open the playfield glass doors and
remove all three lamp diffusers.
Remove the lamp from the supporting
clips and disconnect the connections to
the lamp.
Feed the lamp out through either of the
end section openings as shown.
Feed the new lamp back into position, re-
attaching the end cable connections and
clipping the lamp back into place.
Replace the lamp diffusers.
5.4 Replacing a playfield florescent lamp.
You will need…………
• Playfield access door keys
• A Philips screwdriver
• Florescent lamp part No. S100176
