2.12
Pinto BT-POM 1212 - Revision 5
Pre-OperationHook-up

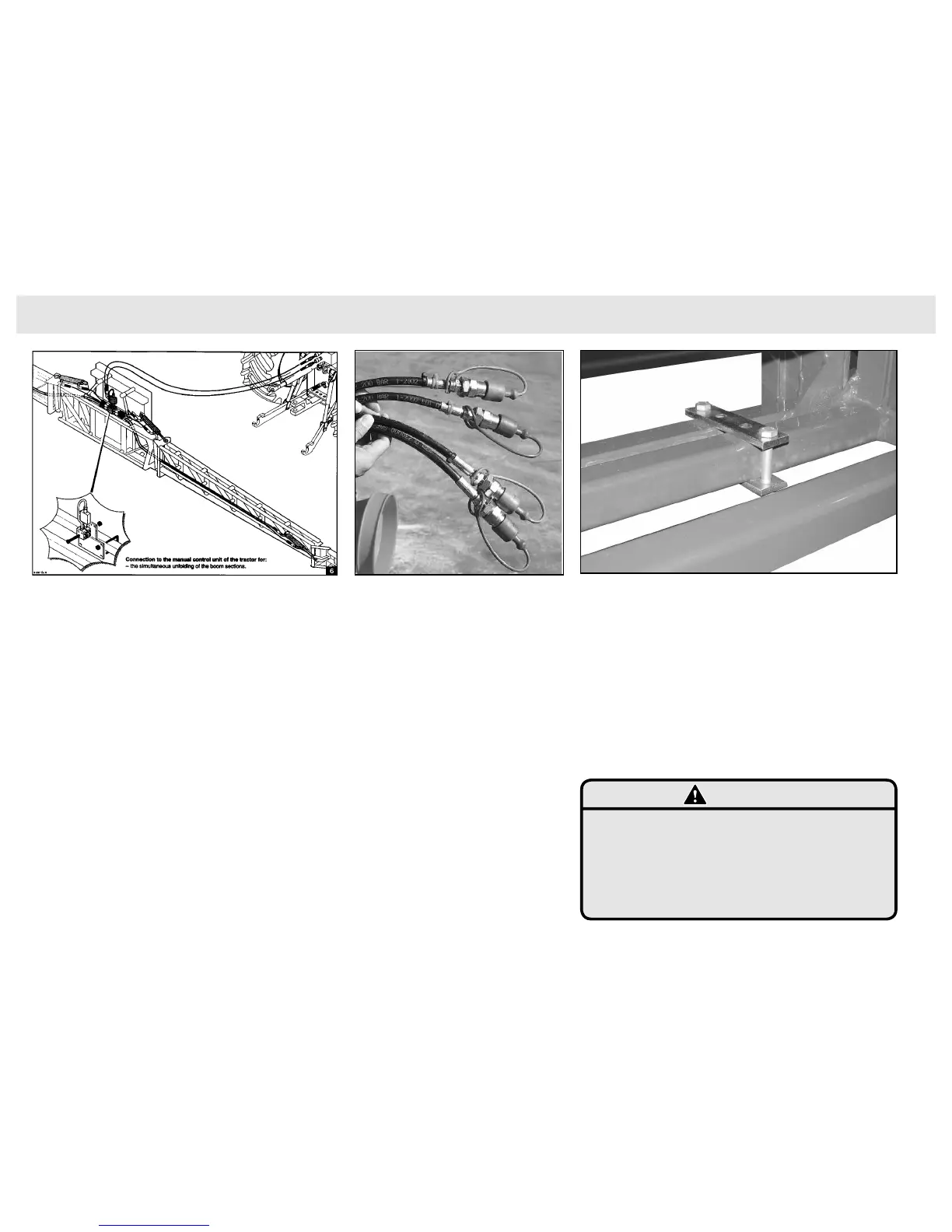

Standard hose connectors for boom lift and fold.
Boom
fold/unfold
hoses
Boom lift hoses
3 Connect Hydraulic Hoses to the
Trac tor
The standard Pinto Boom provides simultaneous unfolding of
boom sections and hydraulic lift adjustment of boom height.
Prior to connecting your boom hydraulic hoses, remove the
boom lock-plate (see pic). This plate is in place for transport to
your dealer from the Croplands' factory.
Connect the boom hydraulic hoses to the
tractor, namely:
a) Boom fold hoses.
b) Boom parallelogram lift hoses.
c) If fi tted, connect the hoses for the
wing lift (optional) - see following
pages.
d) If fi tted, connect the hoses for the
hydraulic pump drive (optional) -
see following pages.
Boom fold hose connection.
Prior to operating the boom hydraulics, remove the boom lock-plate as
shown above.
WARNING
Ensure the boom lock-plate is removed prior to operation.
