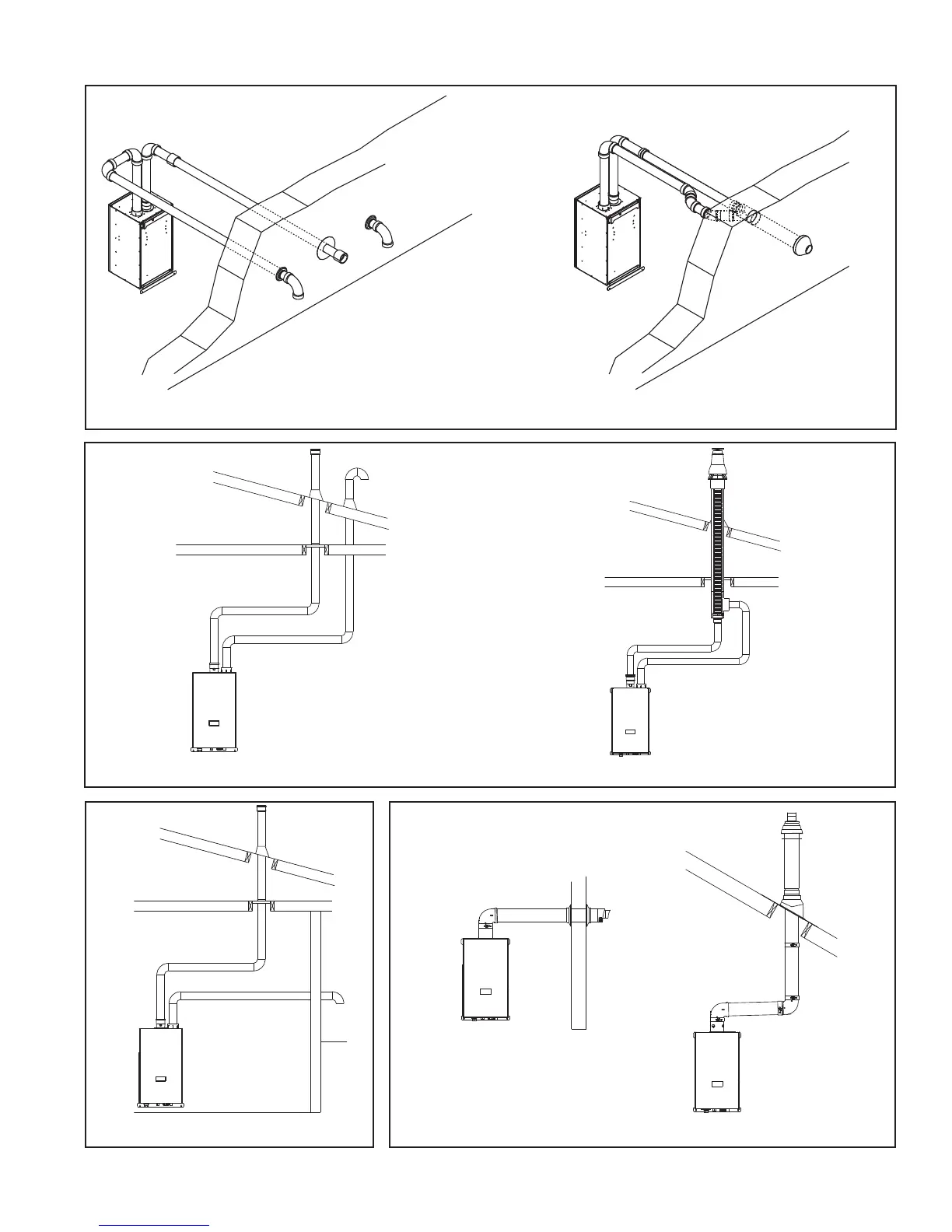

FIGURE 7.0 BASIC VENT OPTIONS
FIGURE 7.0a: HORIZONTAL TWIN PIPE
FIGURE 7.0b: VERTICAL TWIN PIPE
FIGURE 7.0c: SPLIT VENTING
FIGURE 7.0d & e: HORIZONTAL & VERTICAL CONCENTRIC VENTING
