22

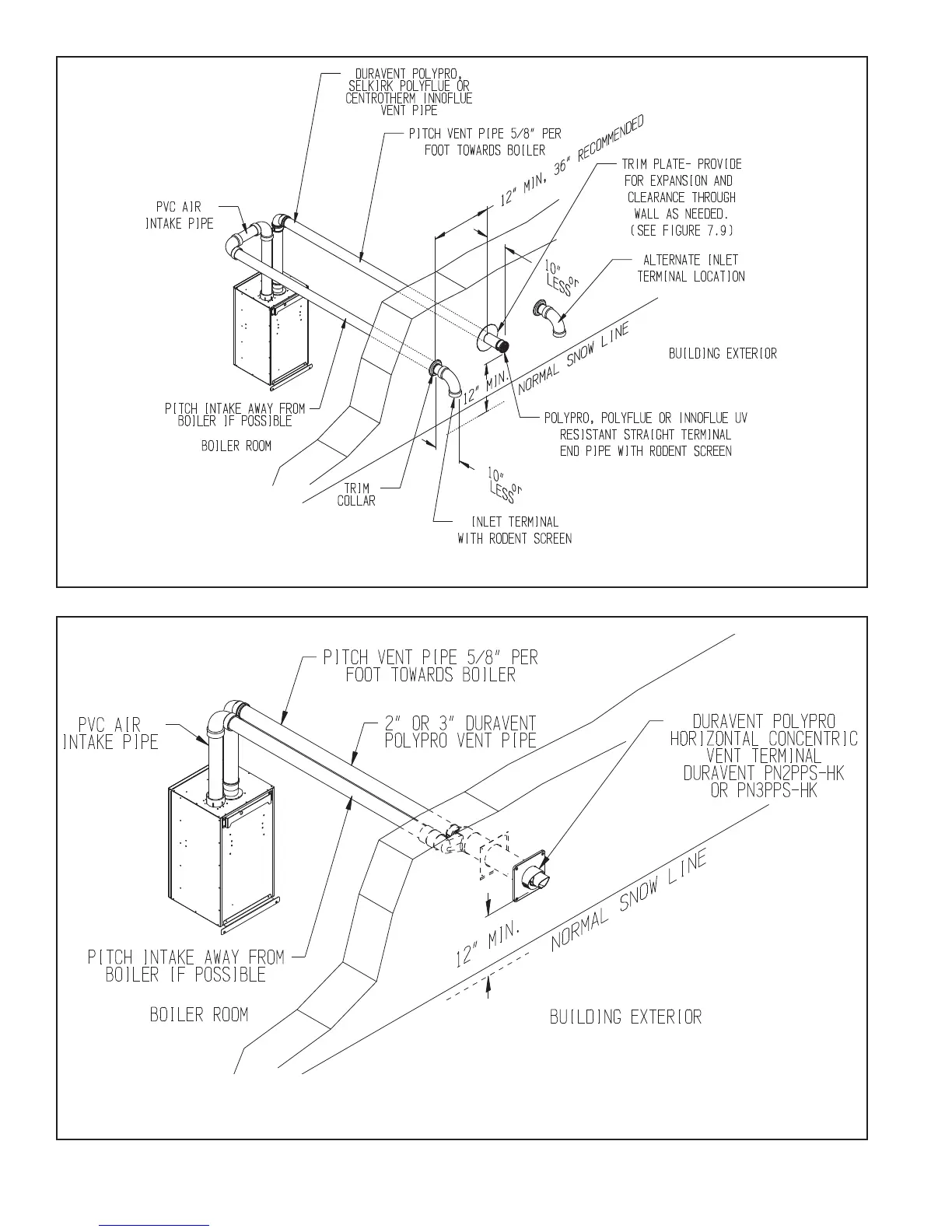

FIGURE 7.9: DURAVENT POLYPRO, SELKIRK POLYFLUE OR CENTROTHERM INNOFLUE HORIZONTAL
VENTING, (VENT OPTIONS #3 - 8, TERMINAL OPTION A)
FIGURE 7.10: DURAVENT POLYPRO HORIZONTAL VENTING WITH CONCENTRIC TERMINAL,
(VENT OPTIONS #3 & 4, TERMINAL OPTION F)
To Next Page
