Crown Vrack 4x3500 - System Diagrams; 3-Way System Diagram (VT4889); 3-Way System Diagram (VTX V25)

Operation Manual

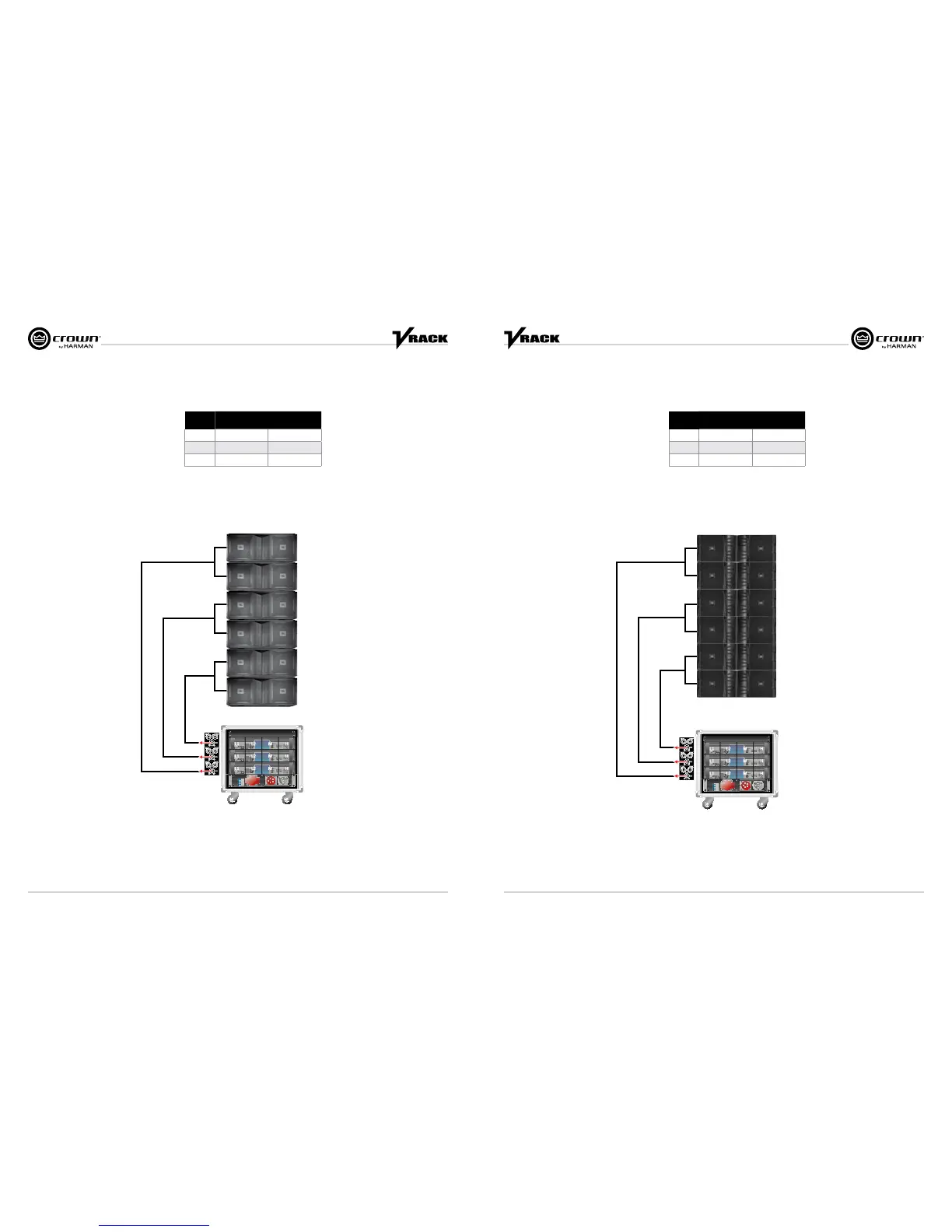

page 42 page 43
Operation Manual
VT 4889/4888
No. Section Load
2 HF 8 ohm
2 MF 4 ohm
2 x 2 LF 2 x 4 ohm
On Each Amplifier
3 Way
6 x VT4889
System Diagrams
LMH(B)
LMH(A)
S1 + S2
LMH(B)
LMH(A)
S1 + S2
1/2
3/4
1 2 3 4
1/2
3/4
1 2 3 4
1/2
3/4
1 2 3 4
3 Way
6 x VTX V 25
System Diagrams
LMH(B)
LMH(A)
S1 + S2
LMH(B)
LMH(A)
S1 + S2
1/2
3/4
1 2 3 4
1/2
3/4
1 2 3 4
1/2
3/4
1 2 3 4
VTX V25
On Each Amplifier
No. Section Load
2 HF 8 ohm
2 MF 4 ohm
2 x 2 LF 2 x 4 ohm
