Accessories
AC adapter kit
P/N 2984: Permits operation of an XP2 from an AC supply of 90 - 264 VAC and 47 - 63 Hz.
Includes interchangeable international plugs (for USA, Europe, U.K., and Australia). Adapter
will not charge batteries, but in the event of AC power loss, XP2s will automatically revert to
battery operation.
Plastic Carrying Case
P/N 3009, 35.6 cm (14″)L x 27.9 cm (11″)W x 8.3 cm (3¼″)H with egg-shell foam interior.

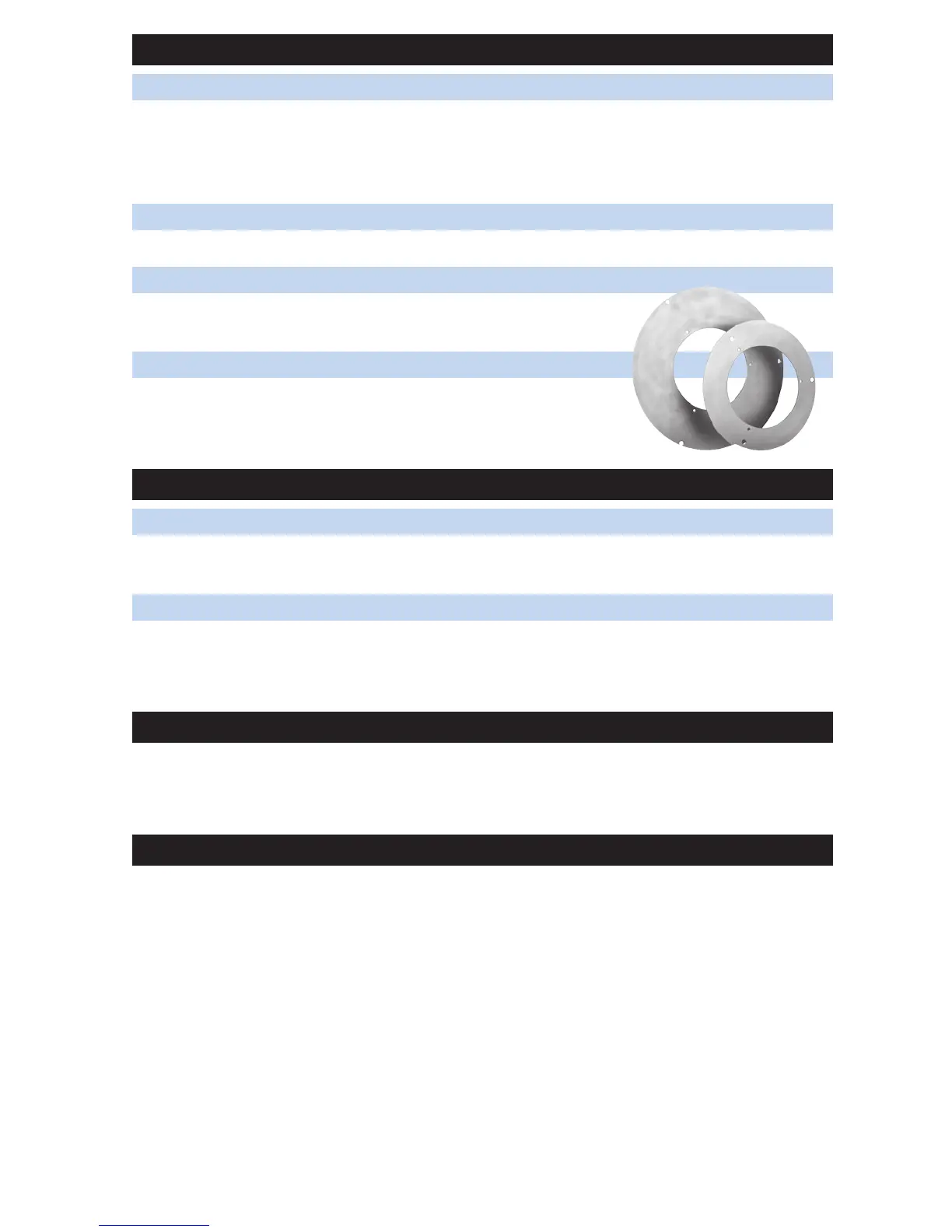

6″ Gauge Adapter Kit
P/N 2955: Adapts the 4½″ Panel Mount (F4 option) to fit into a 6″
gauge cutout.
8½″ Gauge Adapter Kit
P/N 2956: Adapts the 4½″ Panel Mount (F4 option) to fit into an
8½″ gauge cutout.
Software
LabVIEW™ drivers
Control and communicate with XP2s using National Instrument’s LabVIEW. Integrate XP2s
into your test environment!
WinXP2 Configuration Software
WinXP2: Disable unwanted pressure units, set default pressure units, change water density,
disable Peak button and adjust calibration, via the RS-232 interface.
Replacement Parts
The only user-replaceable parts are the batteries and the
1
/
16
″ NPT stainless steel filter (Filter
Replacement Kit P/N: 3002).
Trademarks
This manual contains the following third-party trademarks, both registered and unregistered.
All marks are the property of their respective companies.
LabVIEW™ . . . . . . . . . . . . . . . . . . . . . . . . . . National Instruments
“Pressure is Our Business™” is a registered trademark of Crystal Engineering Corp.
European Community Declaration of Conformity
EC Declaration of Conformity
I/We
Crystal Engineering Corporation
of
720 Aerovista Place, Suite B
San Luis Obispo, CA, 93401
USA
declare that
Digital Pressure Gauge
XP2 Series (Battery or DC Power Supply Accessory)
In accordance with the following directives
89/336/EEC The Electromagnetic Compatibility Directive
and its amending directives
has been designed and manufactured to the following specifications
EN 61326-1:2002 Conducted Emissions Class A Pass
EN 61326-1:2002 Radiated Emissions Class A Pass
EN 61000-3-2:1995 Current Harmonic Emissions Class A Pass
EN 61000-3-3:1995 Voltage Variations & Flicker N/A Pass
EN 61000-4-2:2002 Electrostatic Discharge Exceptions (1)
EN 61000-4-3:2002
Radiated EM Field Pass (2)
EN 61000-4-4:2002
Electrical Fast Transient/Burst
Pass
EN 61000-4-5:2002
Surge Immunity
Pass
EN 61000-4-6:1994
RF Conducted Disturbances
Pass
EN 61000-4-8:1994
Power Magnetic Field
Pass
EN 61000-4-11:1994
Voltage Dips and Interruptions
Pass
(1) System meets requirements for Vertical Coupling Plane and Horizontal Coupling Plane; Air and Contact meets performance
criteria B when referenced to ground, criteria C when no ground reference present.
(2) Unit performs as advertised for standard battery configuration. Unit when attached to RS232 cable performs to performance
criteria B. Improved performance observed using L-Com Capacitive Filter (EMC) Adaptor, DB9 male/female, part number
DGFC9MF.
I hereby declare that the equipment named above has been designed to comply with the
relevant sections of the above referenced specifications. The unit complies with all essential
requirements of the Directives
David K. Porter, P.E.
(NAME OF AUTHORIZED PERSON)
Director of Engineering
(TITLE OF AUTHORIZED PERSON)
16 July 2003
(SIGNATURE OF THE AUTHORIZED PERSON) (DATE OF ISSUE)
