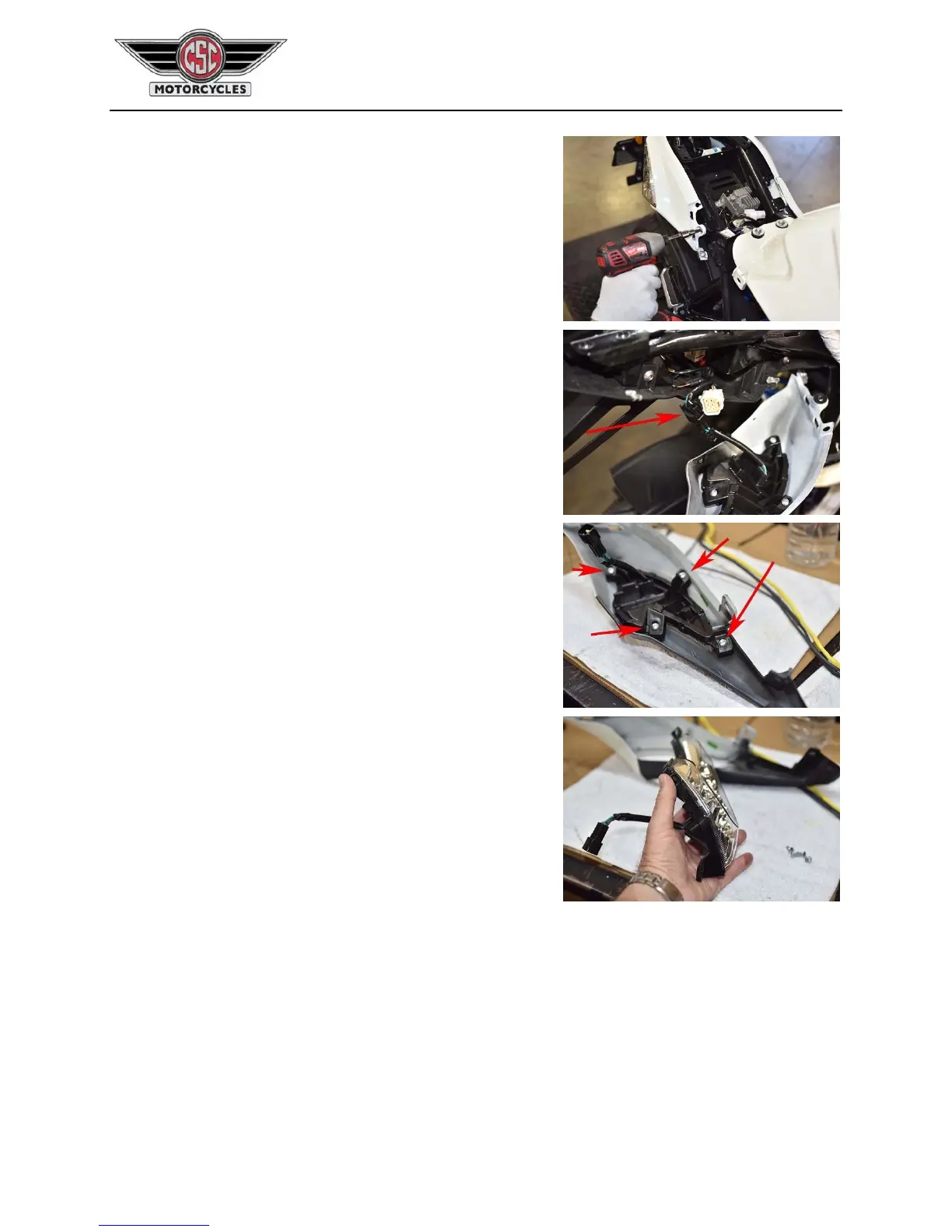

RemovetheAllenboltsecuringtheLEDsubassemblybody
paneltothemotorcycleframe.

Disconnecttheelectricalconnector.

UnscrewthefourPhillipsheadscrewssecuringtheLED
subassemblyfromthebodypanel.

RemovetheLEDsubassemblyfromthebodypanel.TheLED
subassemblyisanon‐repairableunit;itmustbereplacedas
asubassemblyifdefective.

TheprocedureforremovalandreplacementofthefrontturnsignalLEDsubassembliesismuchmore
straightforward.Unbolttheaffectedturnsignal,disconnecttheconnectorplug,andreplacethe
component.
Assemblyisreverseofdisassembly.
CSCstocksfrontandrearturnsignal/brakelightsubassemblies.Ifyouneedreplacementcomponents,
pleasecontactCSCat9094450900.

