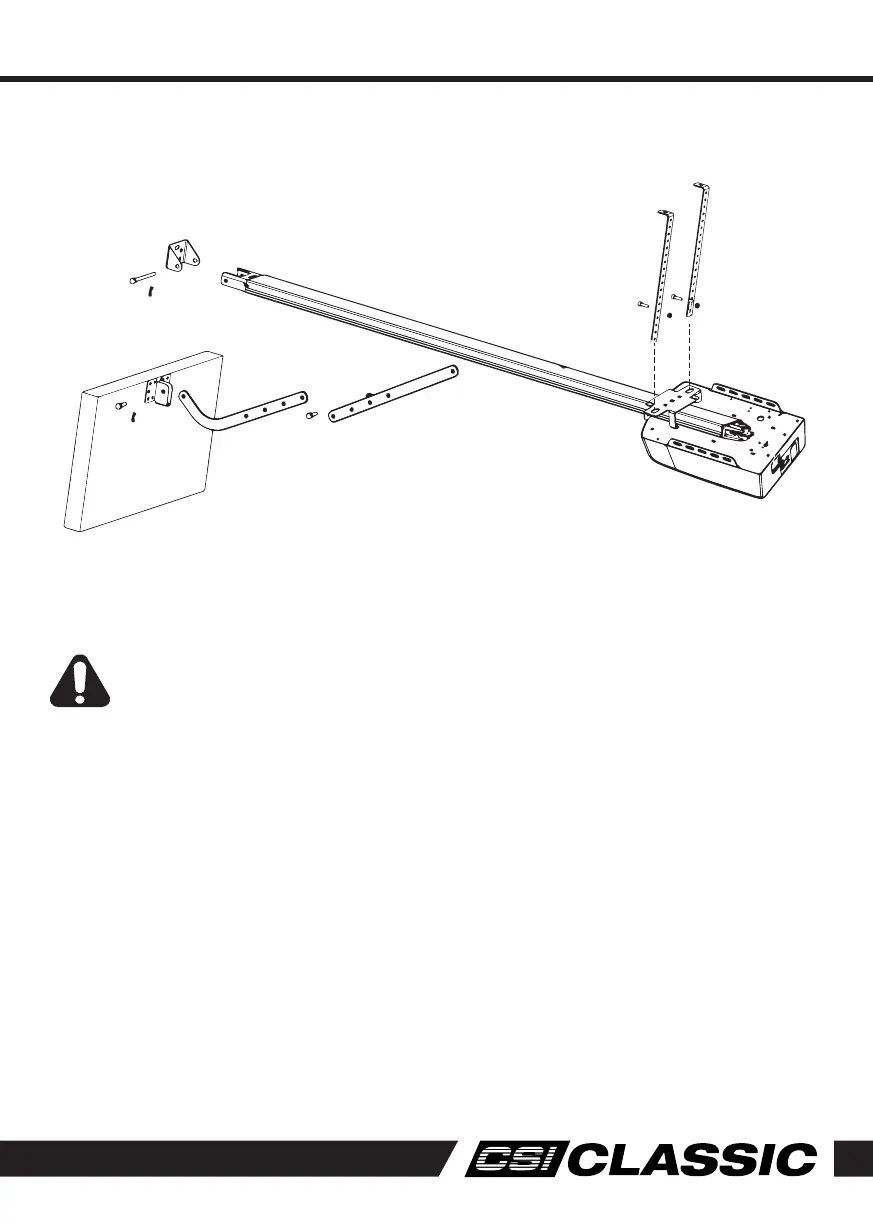

3. Place the steel track and opener head assembly centrally on the garage floor, with the open
head furthest away from the door. Lift the front of the track up to the door bracket. Insert
the pivot pin and secure it with the clevis pin supplied.
WARNING: Do not allow children around the door, opener or supporting ladder
serious injury and/or damage may result from failure to follow this warning.
4. Install the mounting brackets to the ceiling.
5. Lift and support the opener head (with a ladder) so it is positioned centrally and level. Fix
the opener and track to the mounting brackets.
6. Connect the straight arm to the bent arm with the bolt. Position and bolt the arms to the
top edge of the door using the bolt supplied.
7. Lift the garage door until the shuttle locks into the drive chain/belt. Now, ready to program
the openers
Mount Wall & Door Bracket
Attach Opener to Track
Install Steel Track
