SIGNATURE 2 SERIES

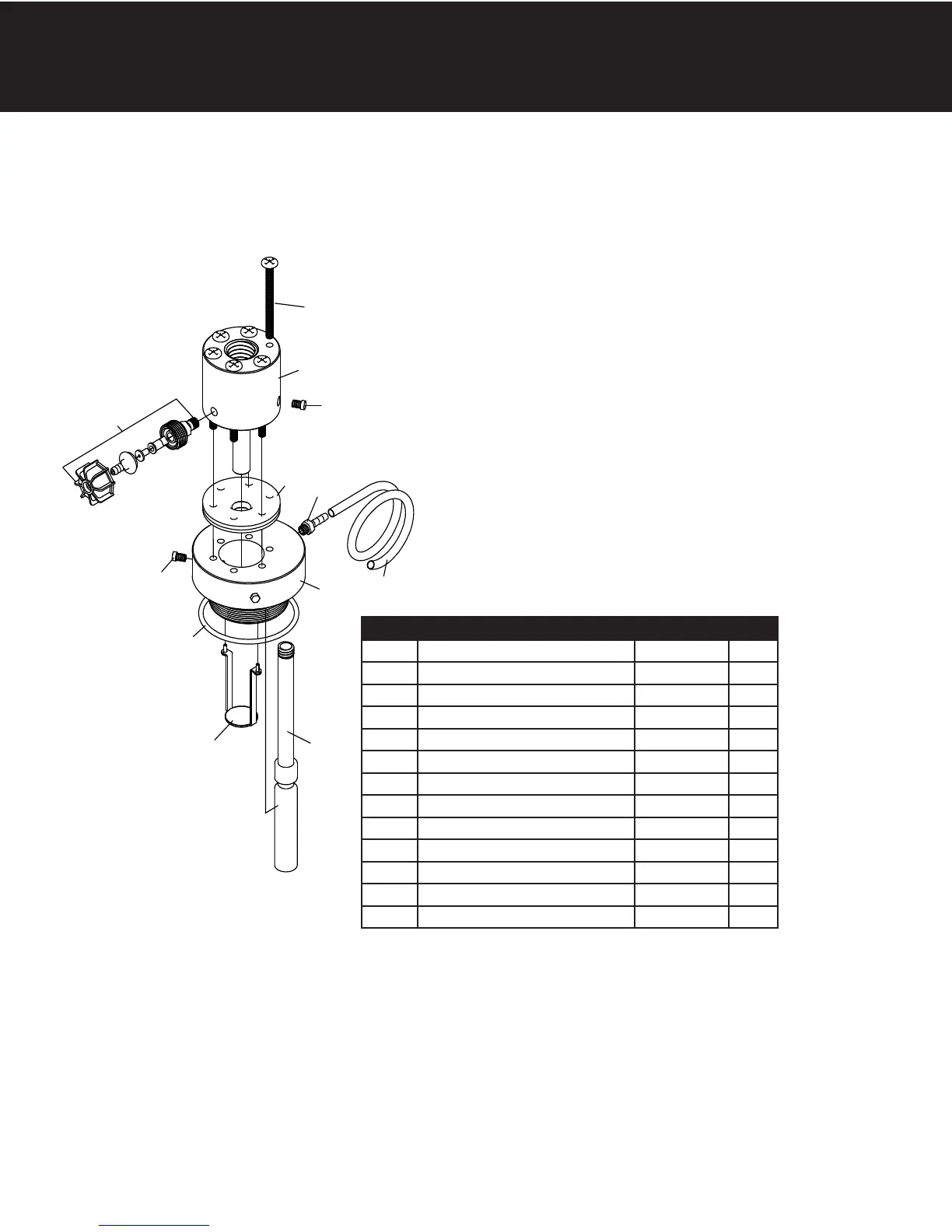

Manifold Breakdown
13
REF. PART # DESCRIPTION
QTY.
1
65555X221
SCREW; 1/4"-20 x 3-1/2" SS pHILLIPS
6
2
65555X205 BODY W/ NOZZLE & THROAT
1
3 69000B110
HOSE BARB: 1/4" x 1/4" NPT 1
4
65555X250
AIR INLET CHECK VALVE ASSY. 1
5 65555X213
1/8" PLASTIC PIPE PLUG 1
6 65555X219 DIAPHRAGM 2
7 65555X208 MANIFOLD 1
8 65555X009 MANIFOLD O-RING
1
9 65555X212
DIFFUSER W/ SCREWS 1
10 65555X223
FLOAT ASSY. HYDROXR 1
11
65555X216
3/8" OD x 1/4" ID x 12' VENT TUBE 1
12 65555X230 1/4" NPT PLASTIC PIPE PLUG 2
1
2
5
4
6
11
10
9
8
12
3
7
Ref Description Part Number Qty
0 Complete Manifold Assy w/ Float 65555X330 1
1 Screw: 1/4” X 3-1/2” SS Phillips 65555X221 6
2 Body with Nozzle & Throat 65555X205 1
3 Hose Barb: 1/4 x 1/4” NPT 6900B110 1
4 Air Inlet Check Valve Assembly 65555X250 1
5 1/8” Plastic Pipe Plug 65555X213 1
6 Diaphragm 65555X219 2
7 Manifold with O-Ring 65555X208 1
8 Manifold with O-Ring 65555X209 1
9 Diffuser with Screws 65555X212 1
10 Float Assembly 65555X210 1
11 3/8” OD X 1/4” ID X 12 Ft Vent Tubing 65555X216 1
12 1/4” Plastic Pipe Plug 65555X230 2
