SIGNATURE 2 SERIES
Installation Requirements
• A level floor position ahead of piping into water heater.
• Unit must be installed at least 10’ ahead of the inlet to a water heater to prevent damage due to
back-up of hot water.
• DO NOT install the unit in an area of direct sunlight or where freezing temperatures may occur!
(See Installation Diagrams for proper placement and plumbing connections.)
Installation

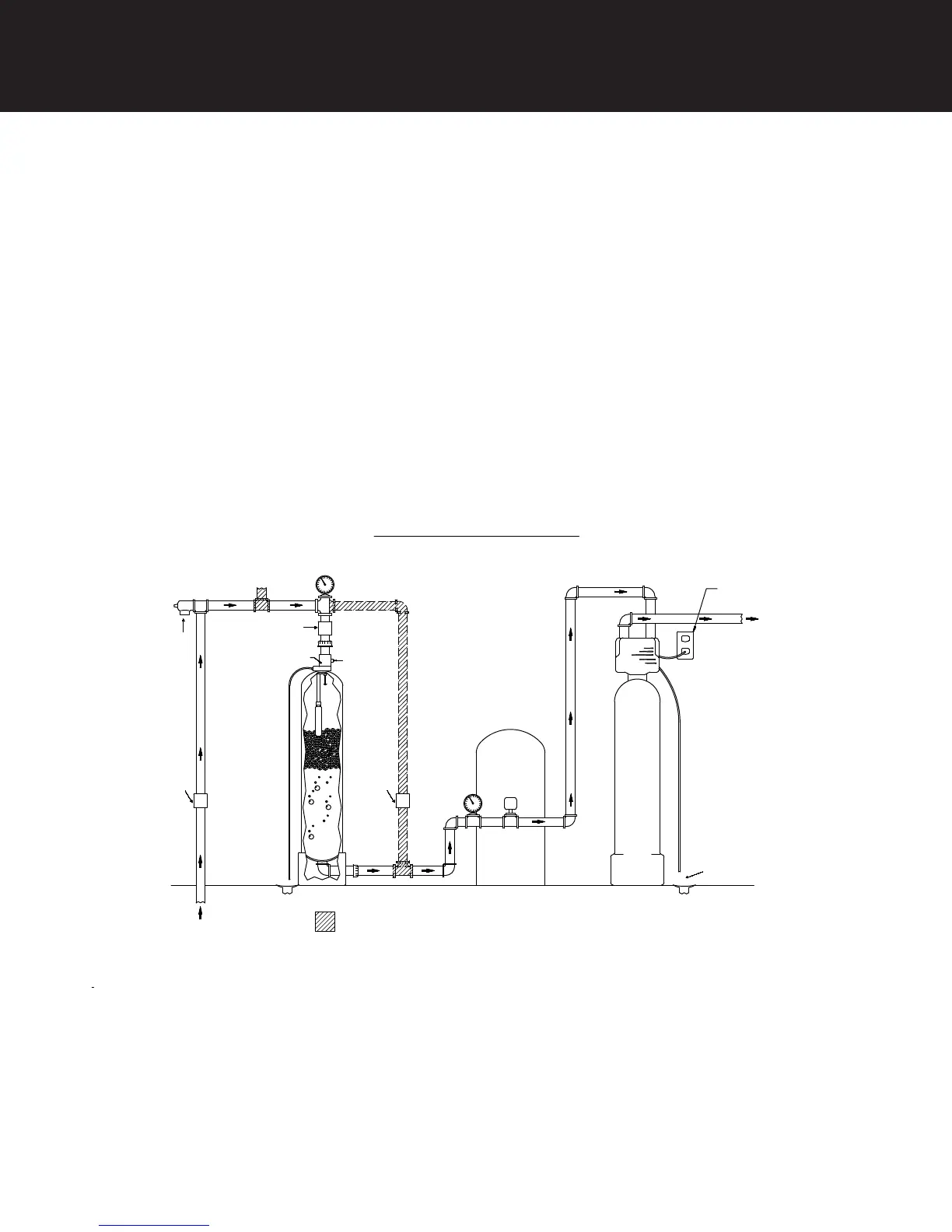

4
GROUNDED & UNSWITCHED
115- VOLT OUTLET
AIR INLET
AIR EXHAUST TO DRAIN
OXYCLEAN FEED
PORT
PRESSURE
TANK
CHECK VALVE
RELIEF VALVE
MUST BE
INSTALLED
"RF" SERIES REACTR
REACTR
FILTER
DRAIN LINES
SERVICE
RAW SERVICE
FROM WELL
-UNTREATED SECONDARY SERVICE LINE (If needed)
CHECK VALVE
CHECK VALVE
REQUIRED
4" GAP
