CSI SK25 - Valve Body Assembly

18

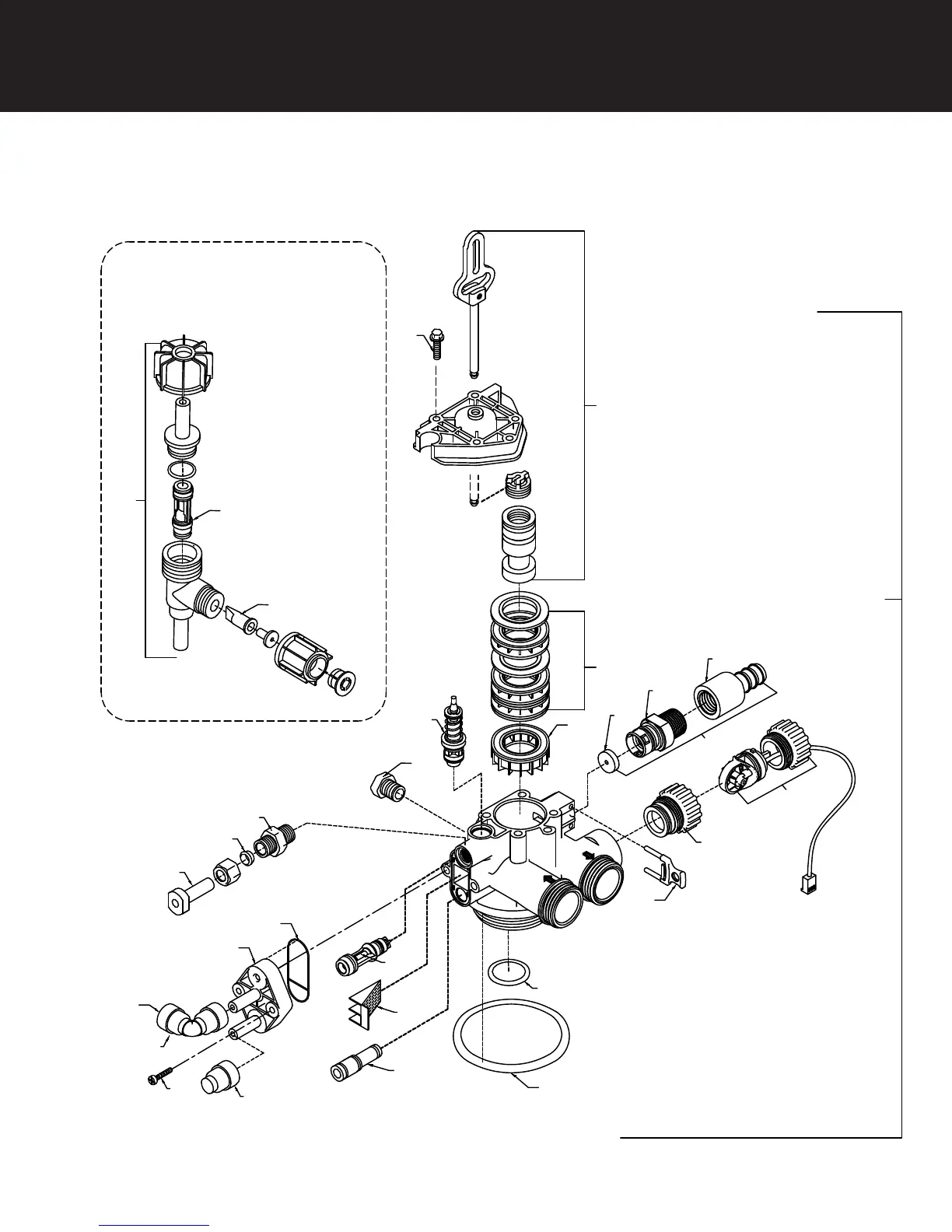

Sidekick Valve Body Assembly
2
9
1
3
20
21
28
15
16
25
24
AIR INJECTION ASSEMBLY
(Located near base of tank)
To Air Injection
Assembly
4
5
6
7
8
22A
10
11
12
13
18
19
17
14
23
27
22B
6A
Signature III, D15 Valve Assembly
26
No. Part No. Name
Qty
1
20009X231
Piston Assembly,
Final Rinse
1
2
20001X226
10-24 x 11/16" Screw
5
3 20561X253
Seal & Spacer Stack
1
4 N/A
Bottom Spacer
1
5
20251X272
DLFC Button,
5.0 GPM
1
20251X273
DLFC Button,
7.0 GPM
6
20017X262
DLFC Assembly,
5.0 GPM
1
20017X264
DLFC Assembly,
7.0 GPM
6 22001X100
Drain Line Flow Control (DLFC)
1
7
20017X255
DLFC Hose Barb, Straight
1
8 22001X002
DLFC Clip
1
9 20009X225 Brine Valve
1
10 20009X228
Brine Line Flow Control (BLFC), Stainless
1
11 20251X305 BLFC Ferrule 1
12
20009X005
3/8" Plug
1
13 20001X226
10-24 x 13/16" Screw 2
14 20009X010
3/8" Push Lock Plug
1
15 20009X001
Injector Cap
1
16 20001X224
Injector Cap Seal
1
17 20017X219
Injector w/ Check Ball
1
18 20001X222
Injector Screen
1
19 20001X217
Injector Plug
1
20 20561X205
Tank O-Ring
1
21
20561X204
Distributor Tube O-Ring
1
22
20017X203 Flow Meter
1
20017X201
Flow Meter Plug
1
23
GA-Q0620626BV
3/8" Push Lock 90 Elbow 1
24
20015X032
External Air Injection Assembly
1
25 20001X219-1
Injector w/o Check Ball
1
26 20009X022
Duckbill Assembly
27 .20018X035
1/4" NPT Plug
1
28
VH2-A-BT-SK-D15
Sidekick Valve Complete
