3.1.1 DEVICE MS -39 AS-OCT

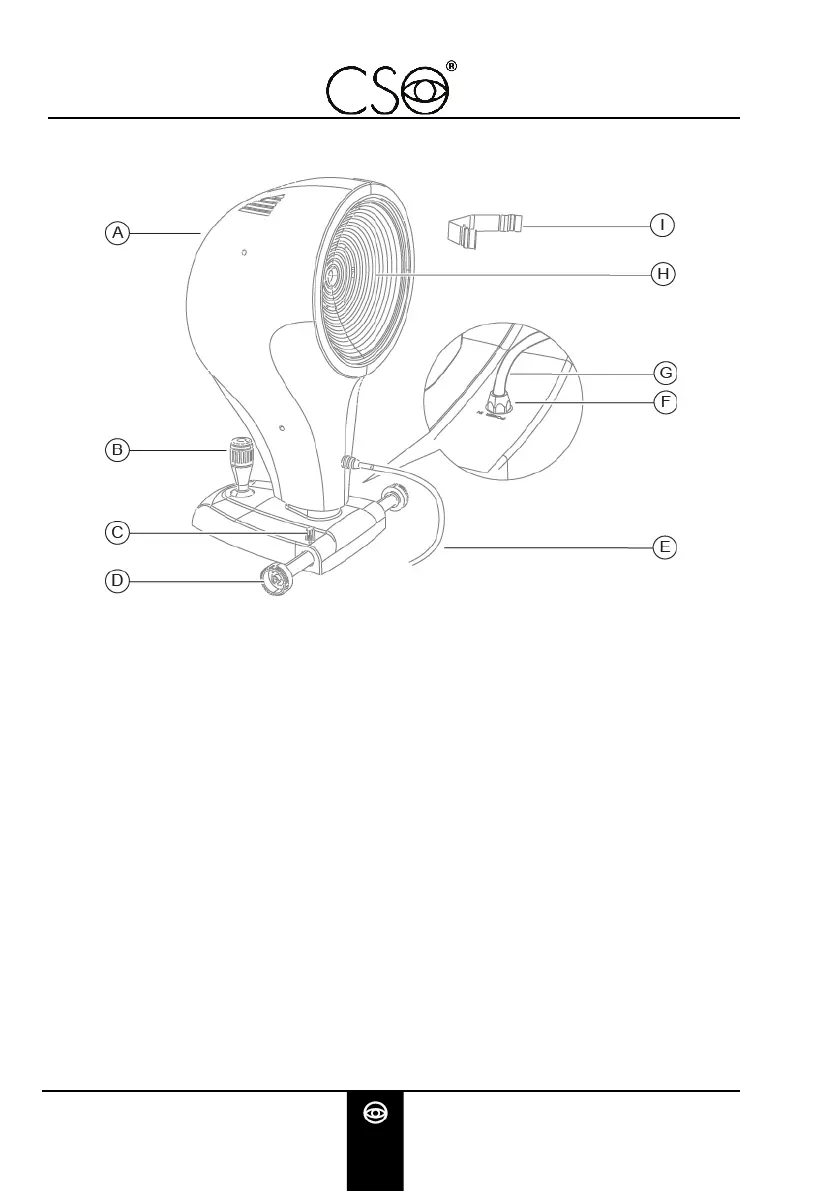

Fig 6 - Device MS-39 AS-OCT
Pos
Description
A
Device MS-39 AS-OCT
B
Joystick
C
Device blocking knob
D
Cogged wheels
E
USB connection cable between device and computer
F
Power port
G
Device power cable
H
Shooting channel
I
Calibration rod
