INSTRUCTIONS FOR USE
MS-39 AS-OCT| IFU302EN00 - 03/2019
This document is the property of
CSO Costruzione Strumenti Oftalmici srl.
Any reproduction, even partial, it is prohibited.
34/52
4
Verify the sticker position respectively to the central axis (A).
5
Remove the protection film. Place the sticker pad between
the two cogged wheels and the scrolling plate.

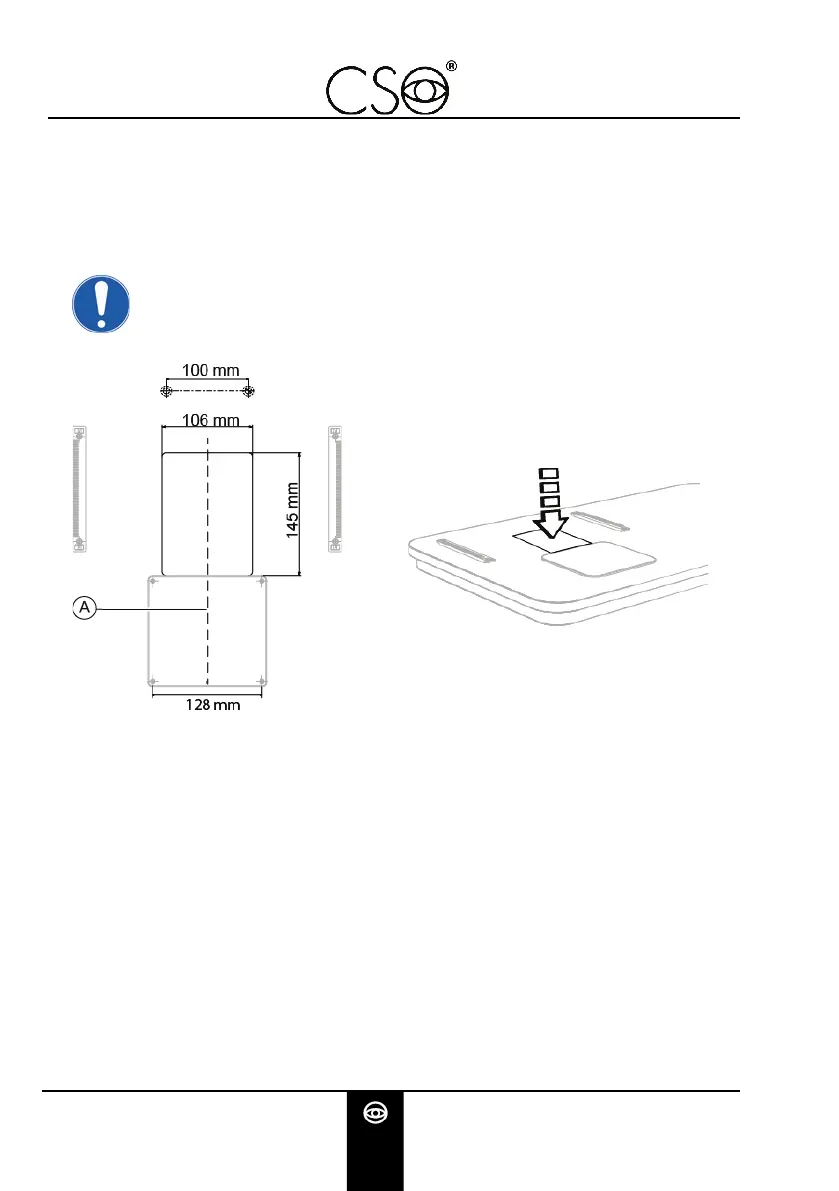

Respect the indicated distances while placing the sticker pad (for
right/left identification) on the table top.
Fig 13 – Distances
Fig 14– How to place the sticker pad
