6
Remove the joystick protection (A) placed under the device
base.

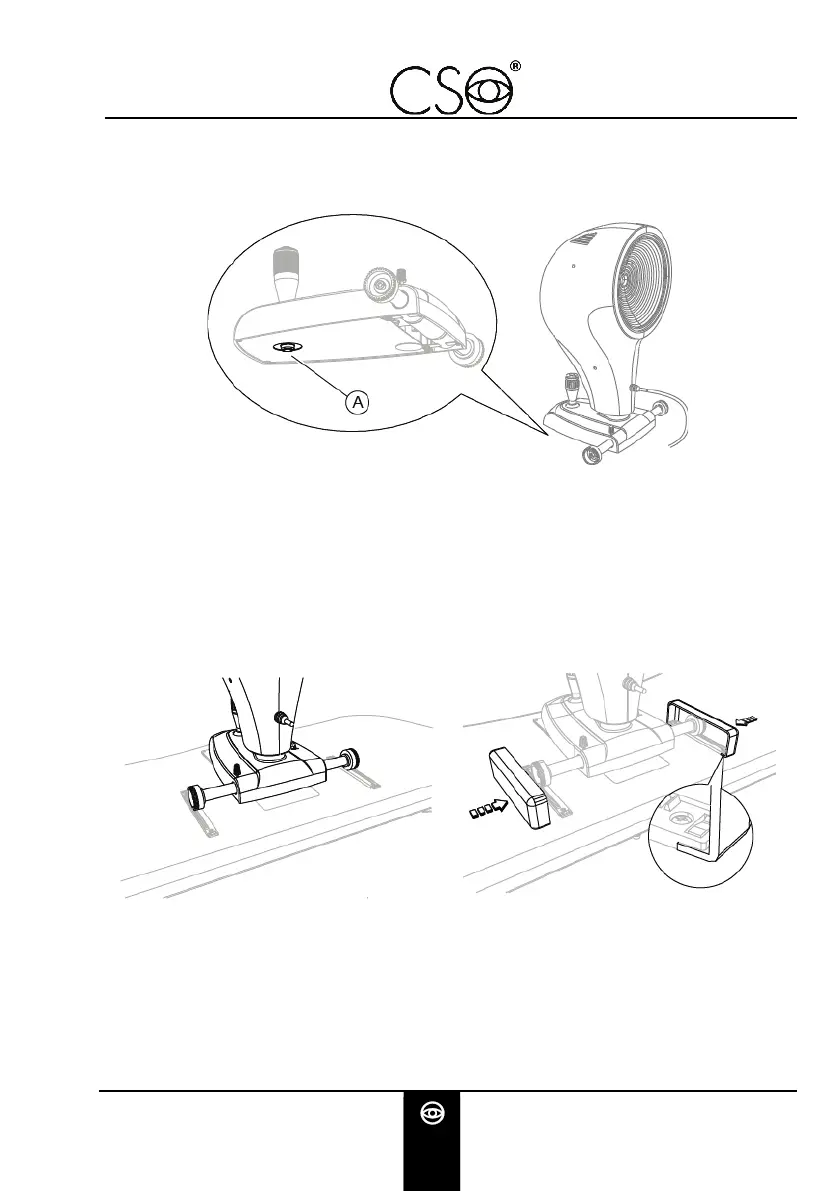

Fig 15 – Protection removal
7
Place the device on the support plane and align the cogged
wheels on the cogged guides.
8
Block the two protection carters to the cogged wheels on the
support plane.
Fig 16 - Placing the device Fig 17 - Placing protection carters
9
Install the chin rest. Under the support plane, there are two
screws to block the chin rest support to the support plane.
