CSZ MicroClimate Series - Figure 5. Main Power Wiring, MCBH

INSTALLATION
Page 4-6

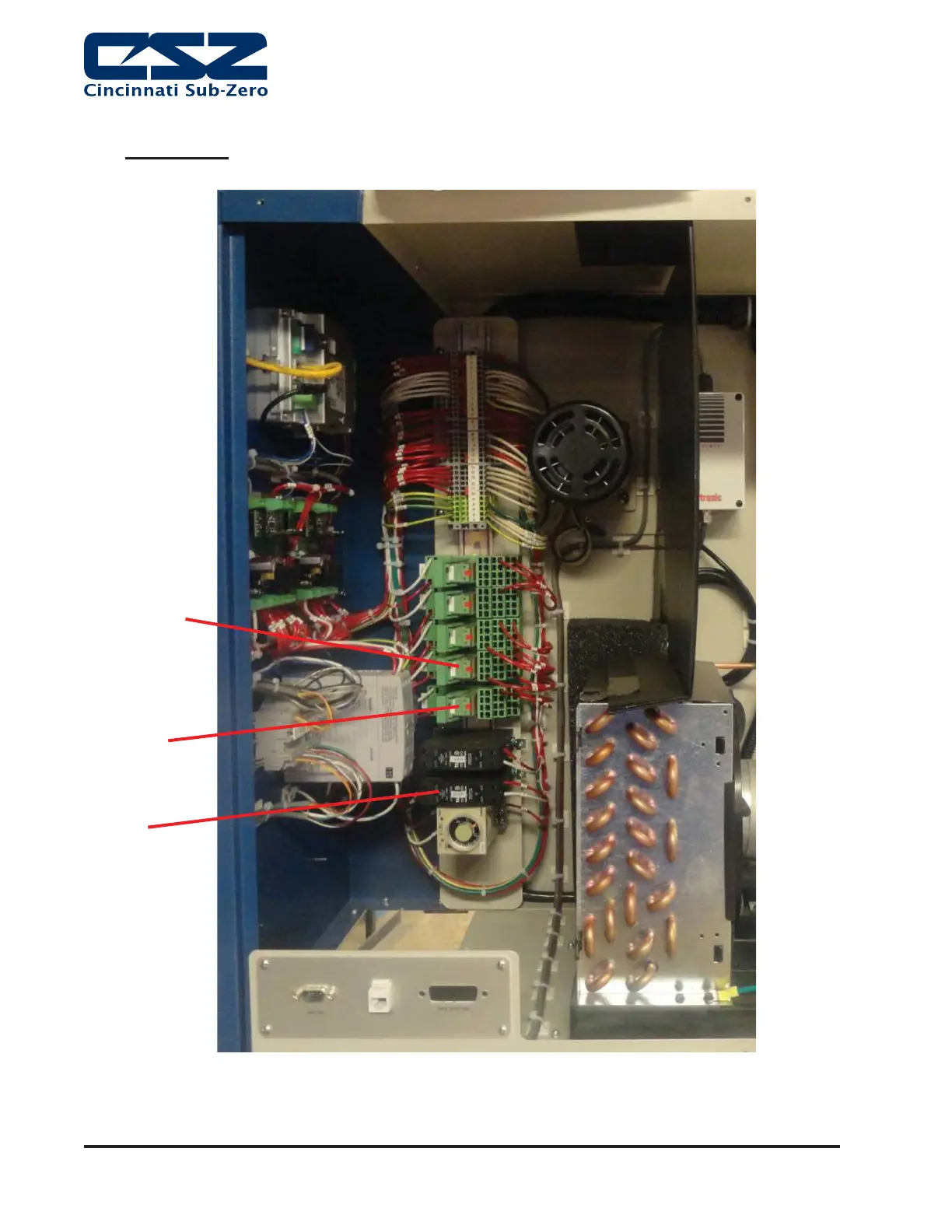

Figure 5. Main Power Wiring, MCBH
Contactor
R-404A
Compressor
MCBH-1.2
Contactor
R-508B
Compressor
Humidity
Solid State
Relay
Note: CSZ is continuously upgrading the components used
in its equipment. Consequently, the physical appearance of
certain components may vary from that shown.
