CONSOLE Port
The RJ-45 port labeled “CONSOLE” is an RS-232 terminal port for local
management. These models use a “light” CLI (Command Line Interface)
in addition to a user friendly Web interface and industry standard SNMP.
One RJ-45 to DB-9 cable is provided with this device. CONSOLE port
pinouts and RS-232 DB-9 connector are illustrated below together with
RJ-45 to DB-9 signal mapping information. Use the supplied cable to
connect the RJ-45 CONSOLE port to a console PC.

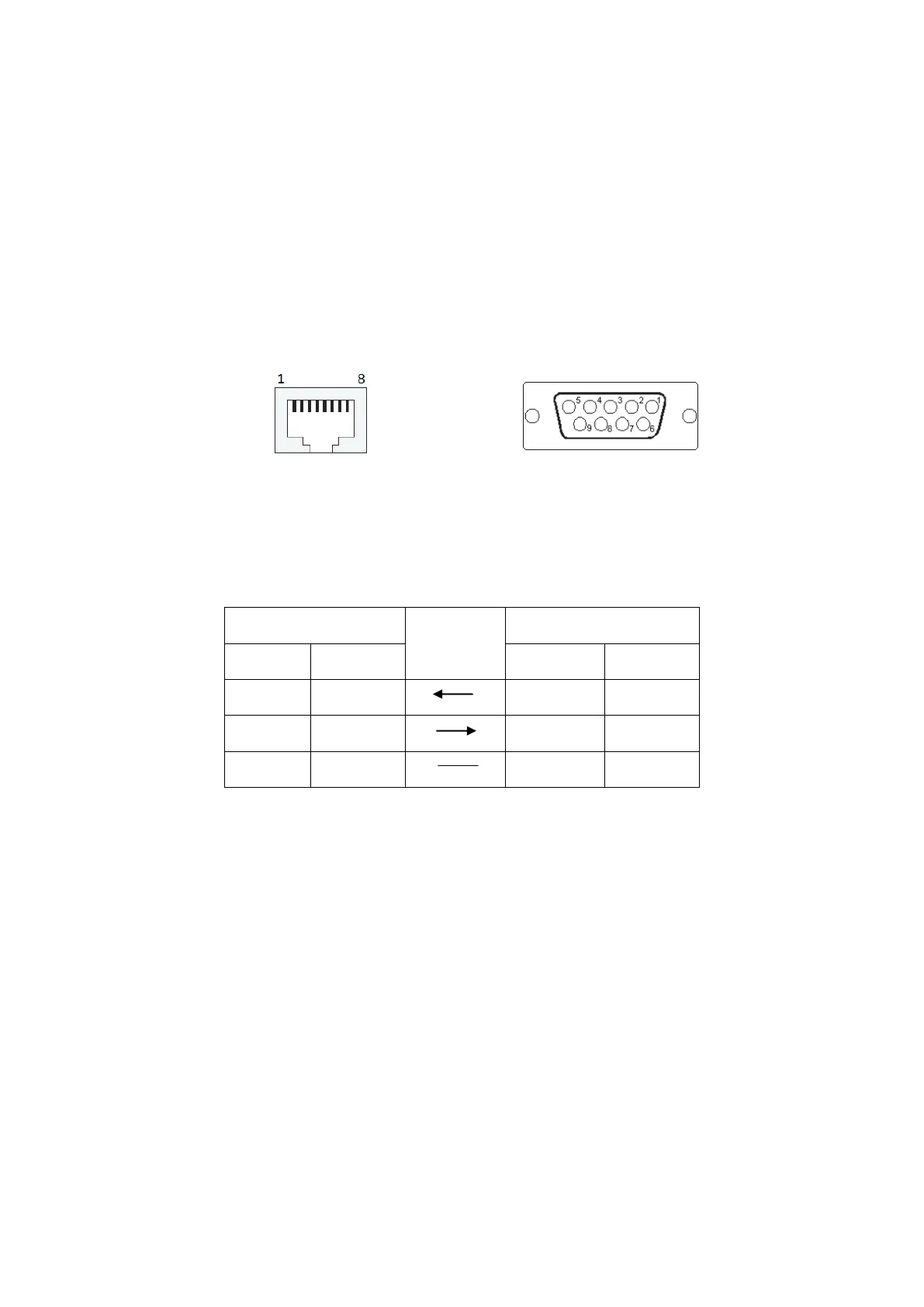

Figure 3. CONSOLE Port Pinout Figure 4. RS-232 (Female) Pinout
RJ-45 to DB-9 Signal Mapping
DB-9 (Female)
Direction
RJ-45
Signal
Pin
Pin
Signal
RXD
2
3
TXD
TXD
3
6
RXD
GND
5
5
GND
