17
Installation
The switch can be mounted on the wall or installed in DIN rail
depending on your installation needs. When installing the wall-mounting
bracket (optional accessory) and DIN rail bracket, be sure to correctly
align the orientation pin.

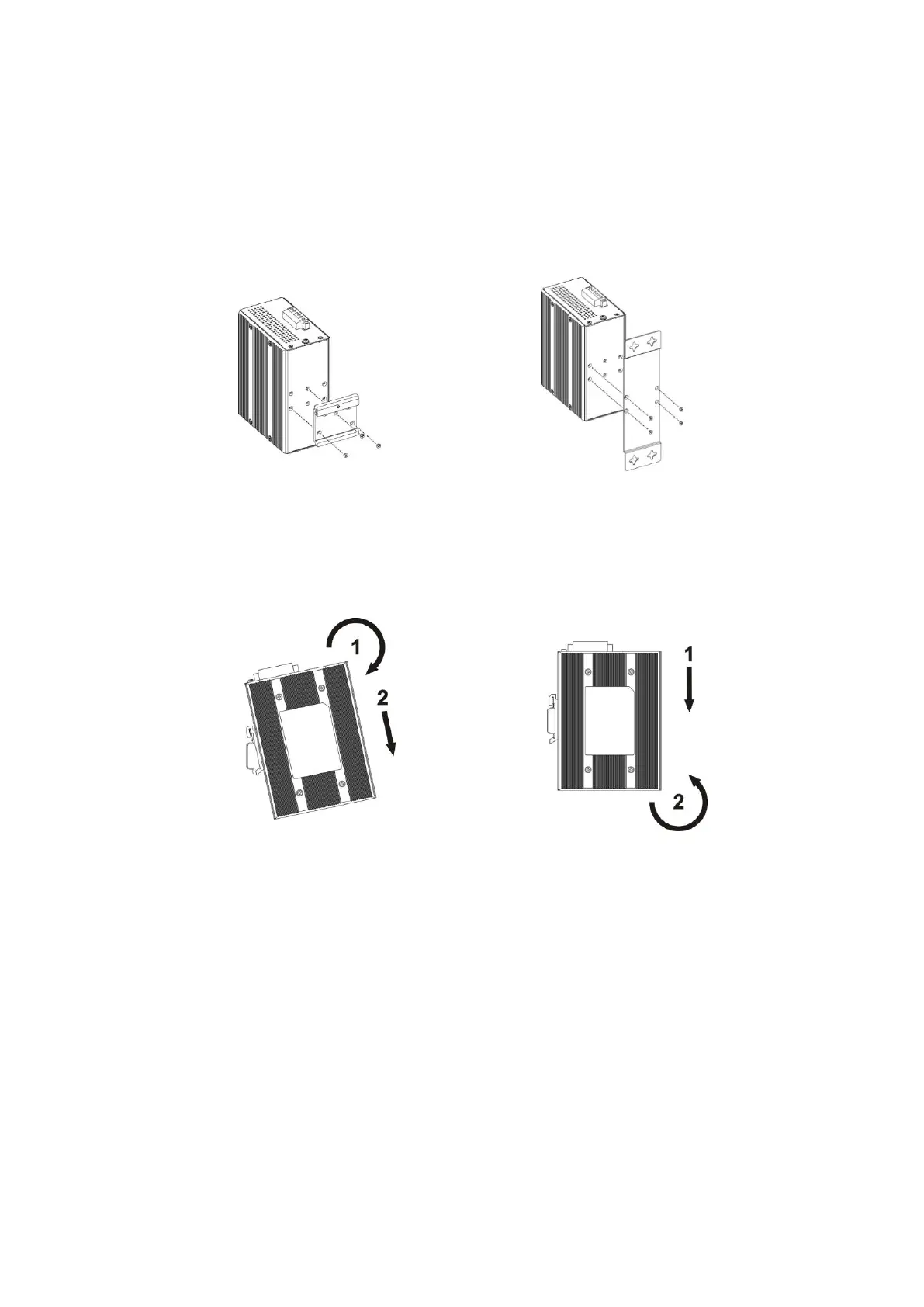

Figure 10. DIN Rail Figure 11. Wall Mount
The switch with DIN Rail bracket has a steel spring in the upper rail of
the bracket. This spring is compressed for mounting and un-mounting by
applying downward force.
Figure 12. Mounting Figure 13.Un-mounting
