3.6.7.2VLANPerPortConfiguration
Within the IMC-1000MS there are actually three different ports, the external copper and fiber ports, plus the internal CPU port

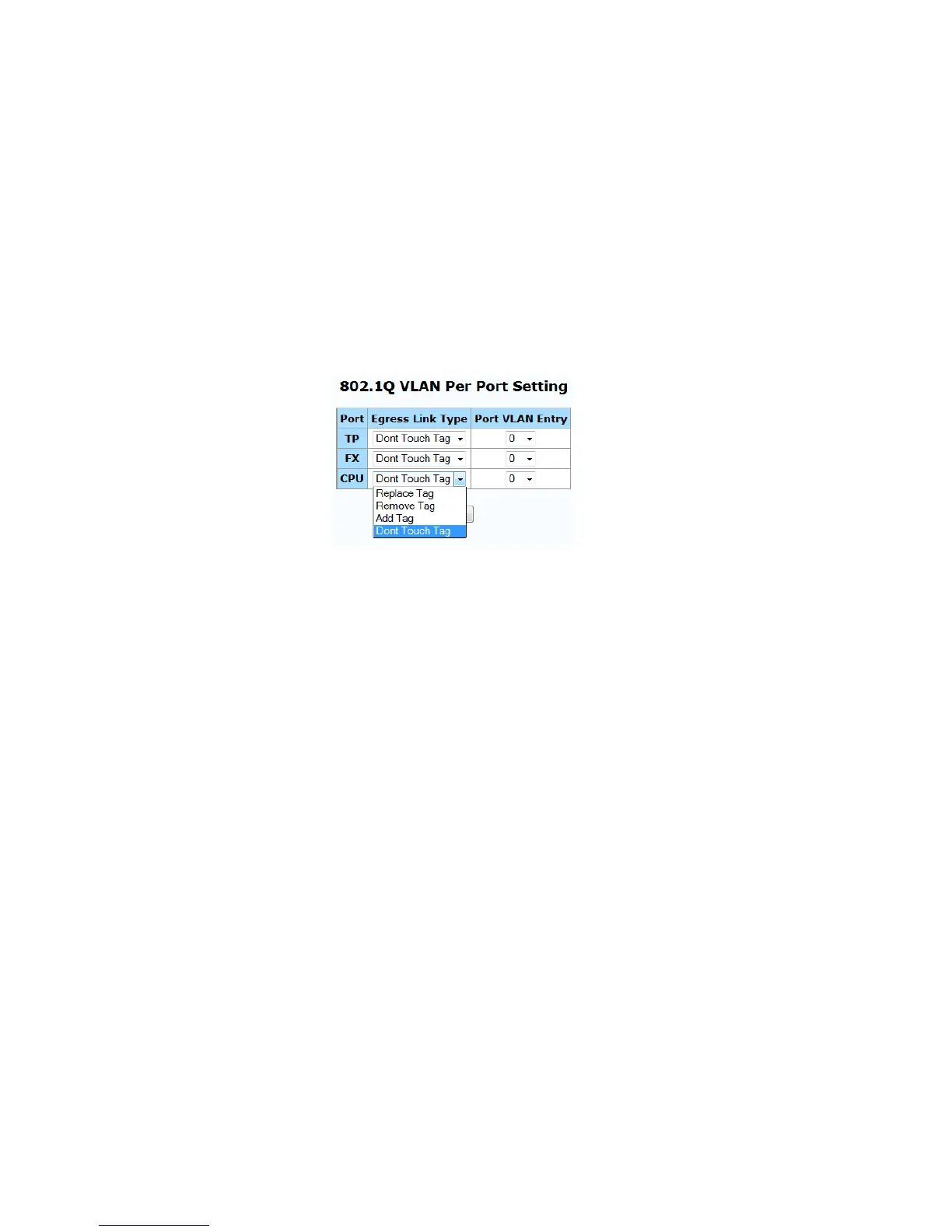

(management). The VLAN Per Port Setting page deals with how frames exit (egress) the copper, fiber and CPU (management). These are the
Frame Egress Type. The following operations may be performed to the outgoing frames: <1>: Replace Tag The switch will remove VLAN
tags from packets then add new tags to them. The inserted tag is defined in ”Port VLAN Entry”. <2>: Remove Tag The switch will remove
VLAN tags from packets, if they are tagged. The switch will not modify packets received without tags <3>: Add Tag The switch will add VLAN
tags to packets, if they are not tagged when these packets are output on this port. The switch will not add tags to packets already tagged. The
inserted tag is defined in ”Port VLAN Entry”. <4>: Don't Touch Tag Do not insert or remove VLAN tags to/from packet which is output on this
port.
28
