CTC Union IMC-1000M - IMC-1000 M(S) Installation Guide

Chapter 2 Installation

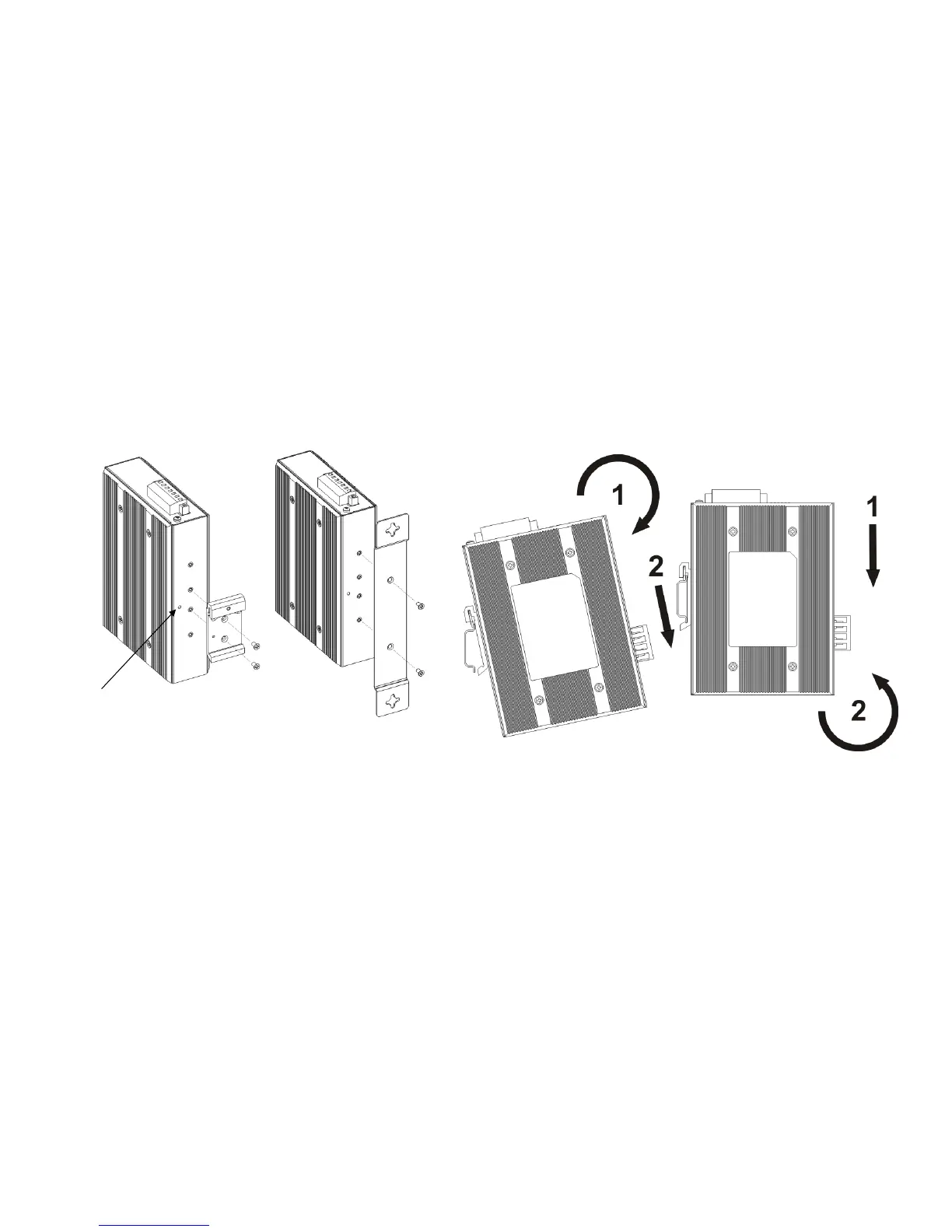

2.1 Mounting Options
IMC-1000M(S) comes with both wall mount and DIN rail hardware brackets. When installing the DIN rail bracket, be sure to correctly align
the orientation pin.
Pin hole
DIN Rail Wall Mount
mounting un-mounting
IMC-1000M(S) with DIN Rail bracket has a steel spring in the upper rail of the bracket. This spring is compressed for mounting and un-
mounting by applying downward force.
