•After Step 5 the black washer may be stick to the inside of the wheel hub
or on the axle. Make sure it does not get lost. Keep the washer and the
key safely aside for reuse because these parts are not provided with a new
tire or wheel assembly.
250+-25kgf-cm
SERVICE - 5

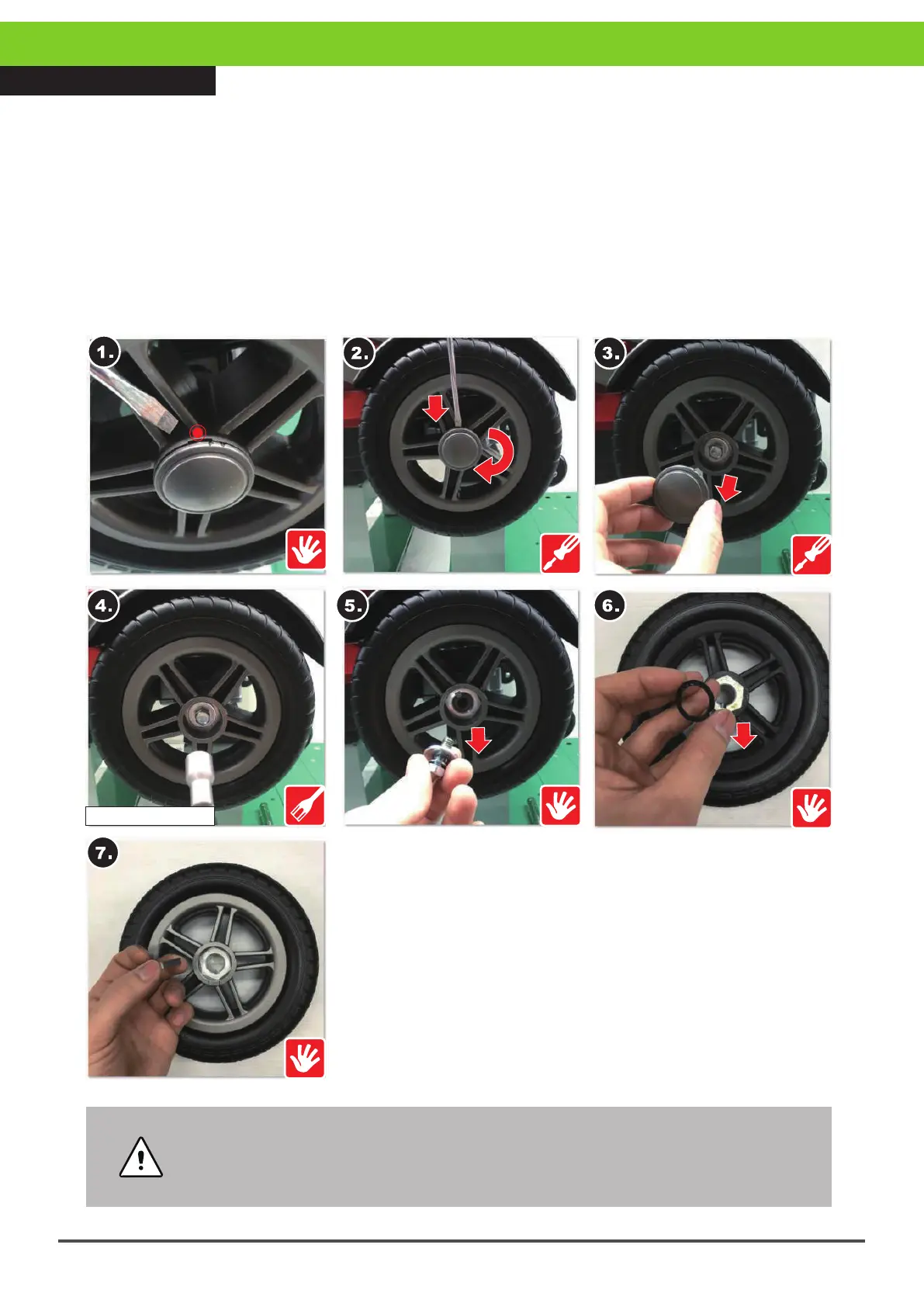

Rear Wheel Repair :
1.Rotate the wheel to find the notch on the wheel cap.
2.Insert a flat screwdriver into the notch and.
3.Lift the wheel cap off to expose the hub.
4.Remove the hexagonal headed bolt (#12) and washer in the center of the axle.
5.Take off the wheel, and remove the black washer at the back.
6.Turn the wheel around and remove the key in the center to complete the action.
※After the replacement of parts or re-installation, please follow the exact reverse sequence
for reassembly.
