150+-15kgf-cm 150+-15kgf-cm

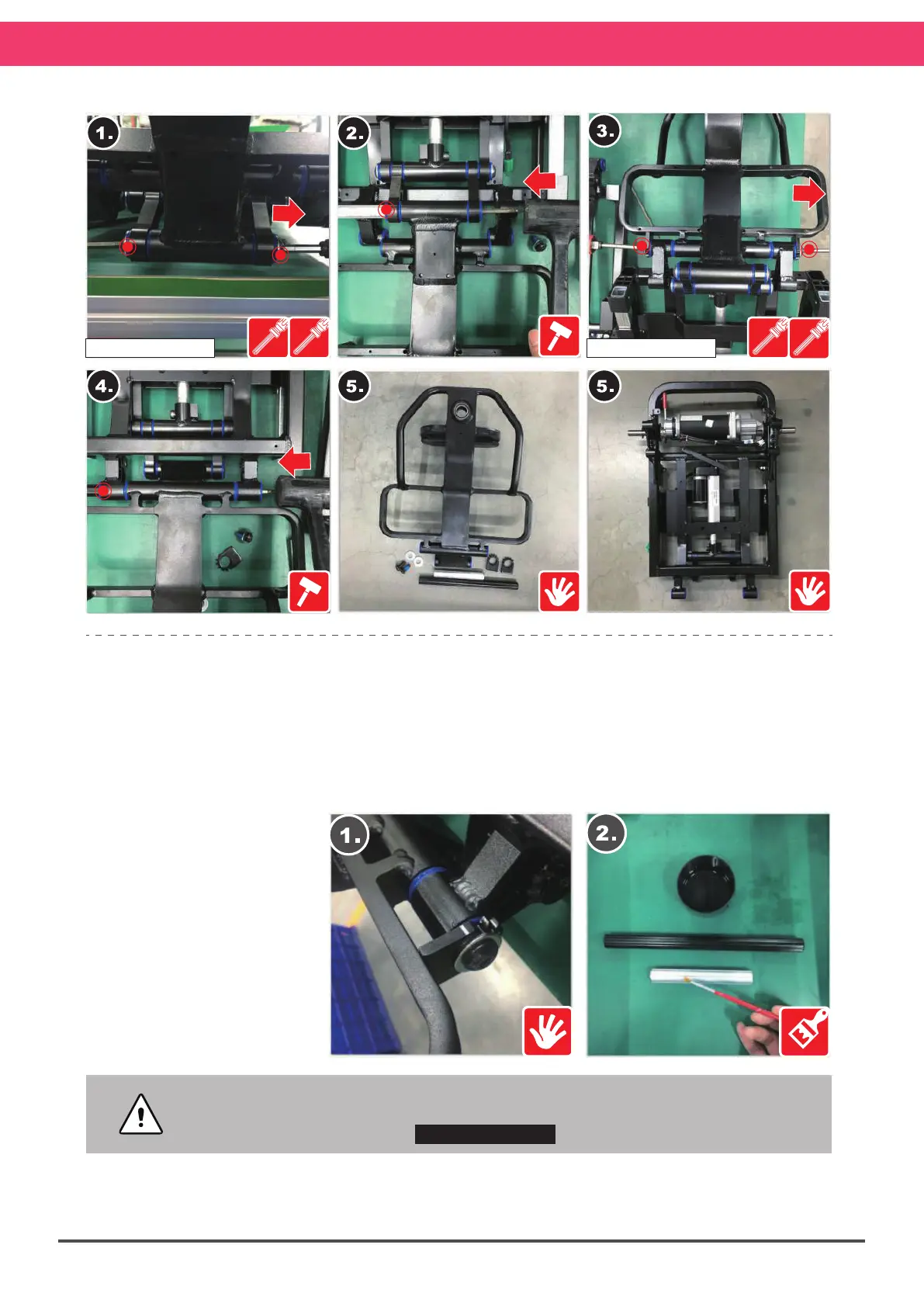

•Step 5.Front frame can be replaced with a new one and can also be repaired.
•Step 6.If the rear frame is not separated completely, and it needs to be.
replaced, please refer to SERVICE-13-6 Sliding Base Repair.
Re-installation Instructions :
※During re-installation of the screws and washers, please be careful about the placement
of the gears on each side. The flat side of the gear must be flush with the front frame
and the white dot must face upwards. An incorrect installation can result in a failure
and will damage the scooter. See Figure 1 on the right for the correct arrangement.
※When re-installing the small and large metal rods apply some silicon oil to make installation
easier (see Figure 2 on the right).
