66
100+-10kgf-cm
100+-10kgf-cm

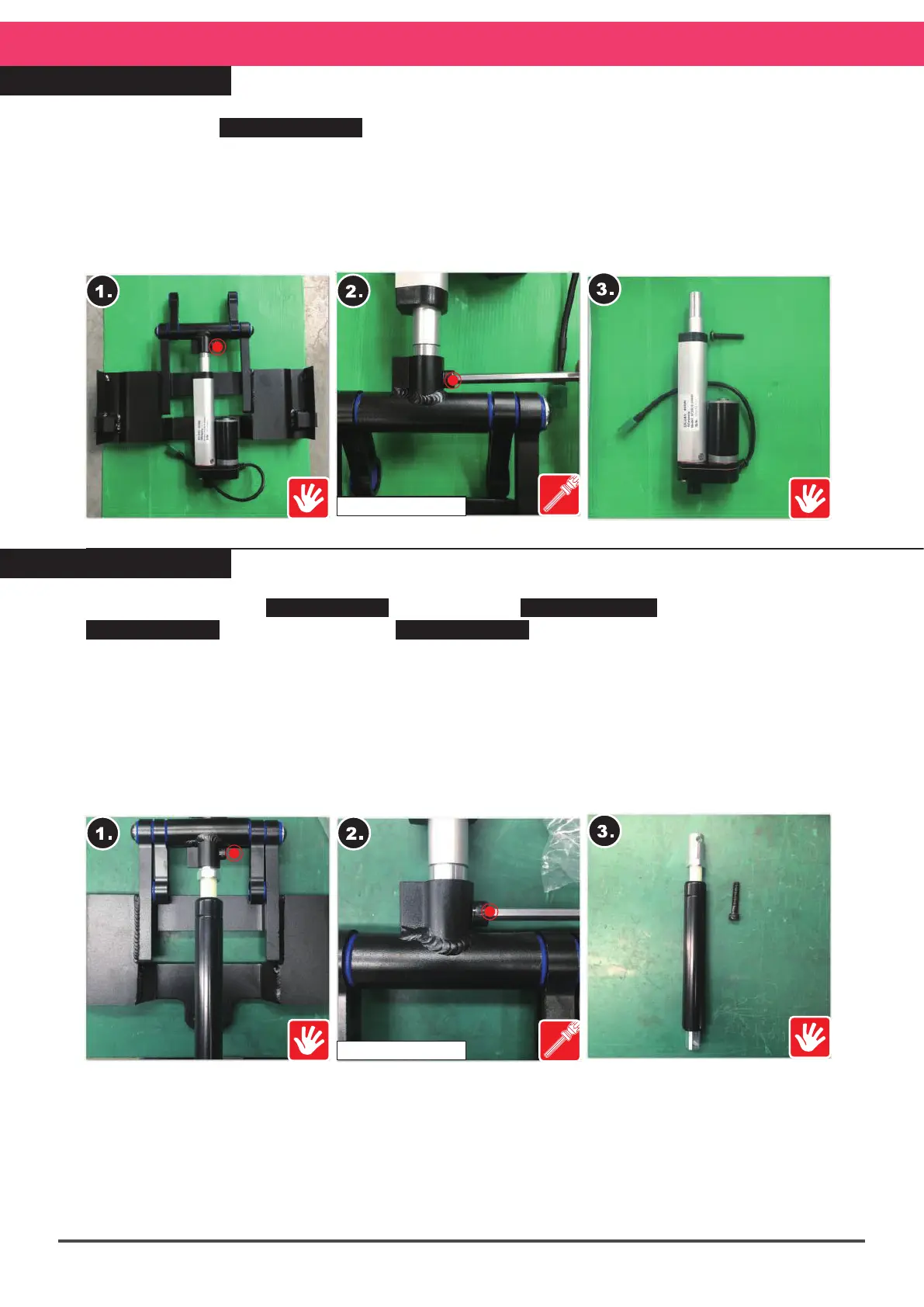

SERVICE - 13 - 7
Linear Actuator Repair :
Please refer to SERVICE-13-6 Sliding Base Repair.
1.The linear actuator and sliding base fastening point is located at the side of the top end
of the gas spring.
2.Use an Allen driver (#5) to remove the holding screw (40mm, 1pc).
3.The linear actuator can then be separated from the sliding base.
※When replacing the unit, follow the same sequence of steps in reverse.
SERVICE - 13 - 8
Gas Spring Repair: ( manual version only )
Please carry out the SERVICE-13 Frame Repair SERVICE-13-1 Folding Unit Repair
SERVICE-13-2 Sliding Track Repair SERVICE-13-6 Sliding Base Repair steps and then :
1.Locate the gas spring and sliding base at the top end of the gas spring.
2.Use an Allen driver (#5) to remove the holding screw (40mm, 1pc).
3.The gas spring can then be separated from the sliding base.
※When replacing the rod, follow the same sequence of steps in reverse.
※To install a new gas spring, the rubber sleeve on top of the gas spring needs to be
removed to prevent abnormal actuation during folding or unfolding.
*Subject to change without notice. ( Rev. 0, 2019/08/20 )
