2-10 Top Assembly To Upper Frame
Assembly Installation

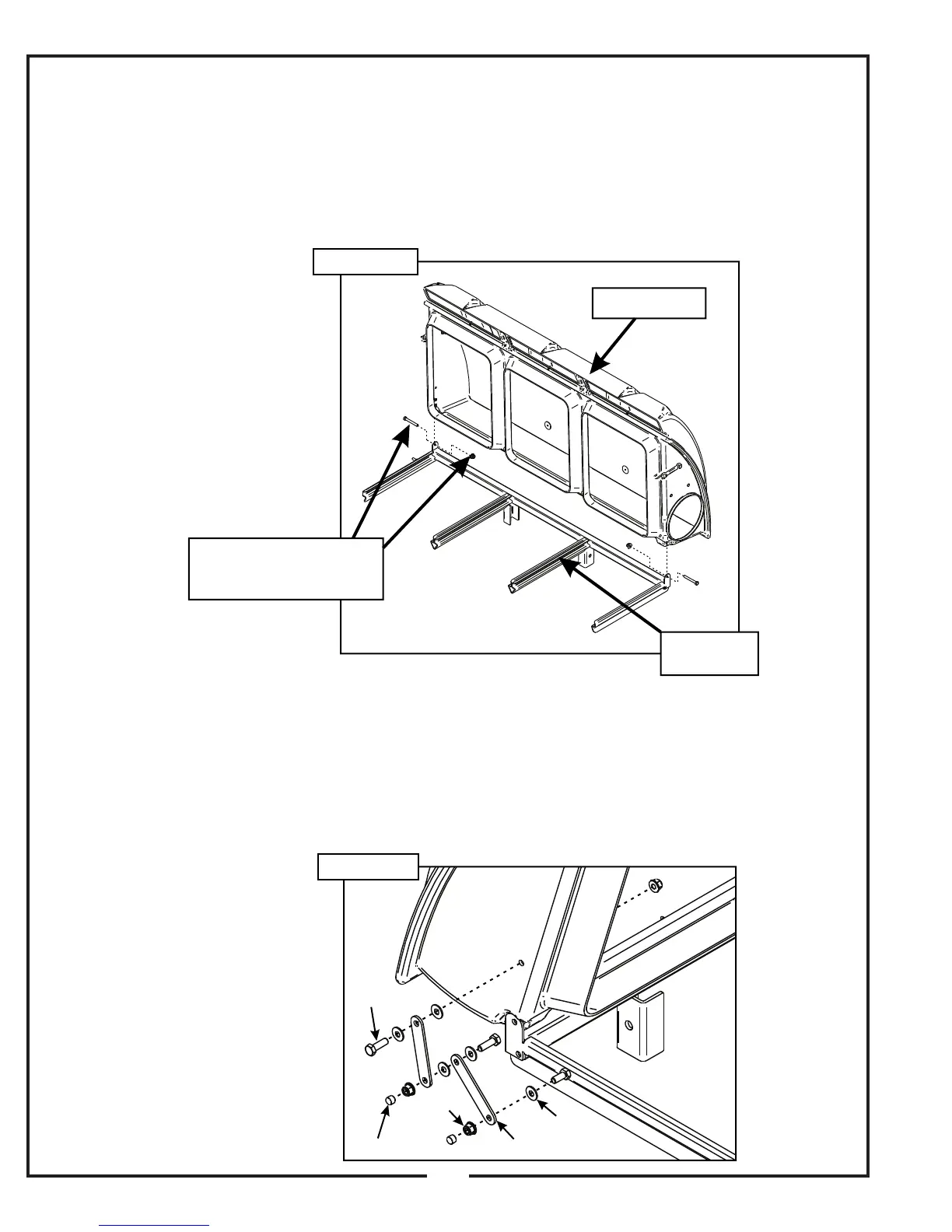

Position the top assembly P#(A1139) above the upper
frame assembly as shown in Figure 2-10. Fasten the top
assembly to the upper frame assembly using (2) 5/16”-
18 x 2-1/2” HHCS P#(K0125) and (2) 5/16”-18 nylon
flange locknuts P#(K2516). Leave the locknuts slightly
loose, to allow the top assembly to open and close
easily. Refer to Figure 2-10 for hardware location.
2-11 Hinge Kit Assembly Installation
Assemble the hinge kit as shown in Figure 2-11, using
(2) 5/16”-18 x 1” HHCS P#(K1154), (3) 5/16”-18 nylon
flange locknuts P#(K2516), (5) 1/4” flat washers
P#(K0037) and (2) swing arm brackets P#(ZT-0004).
Place (1) vinyl cap P#(J0289) on the end of the hex bolts
as shown in Figure 2-11. Leave the nuts loose enough to
allow fluid movement of the top when opening and
closing. When opened, the top should rest on the middle
joint of the hinge allowing it to remain up.
ZT-0004
K2516
K0037
K1154
J0289
Top Assembly
Upper Frame
Assembly
(2) 5/16-18 x 2-1/2” HHCS
(2) 5/16”-18 Nylon Flange
Locknuts
14
Figure 2-10
Figure 2-11
