2-9 Upper Frame Assembly

Installation

NOTE: During this step, it is suggested that two people

install the upper frame to the lower mount tube.

Lift the upper frame assembly P#(A1058) above the

lower mount assembly and lower the top assembly onto

the two vertical tubes. Secure the top assembly to the

lower mount assembly using (2) clevis pins P#(K0133)

and (2) hair pin clips P#(K0088). Refer to Figure 2-9.

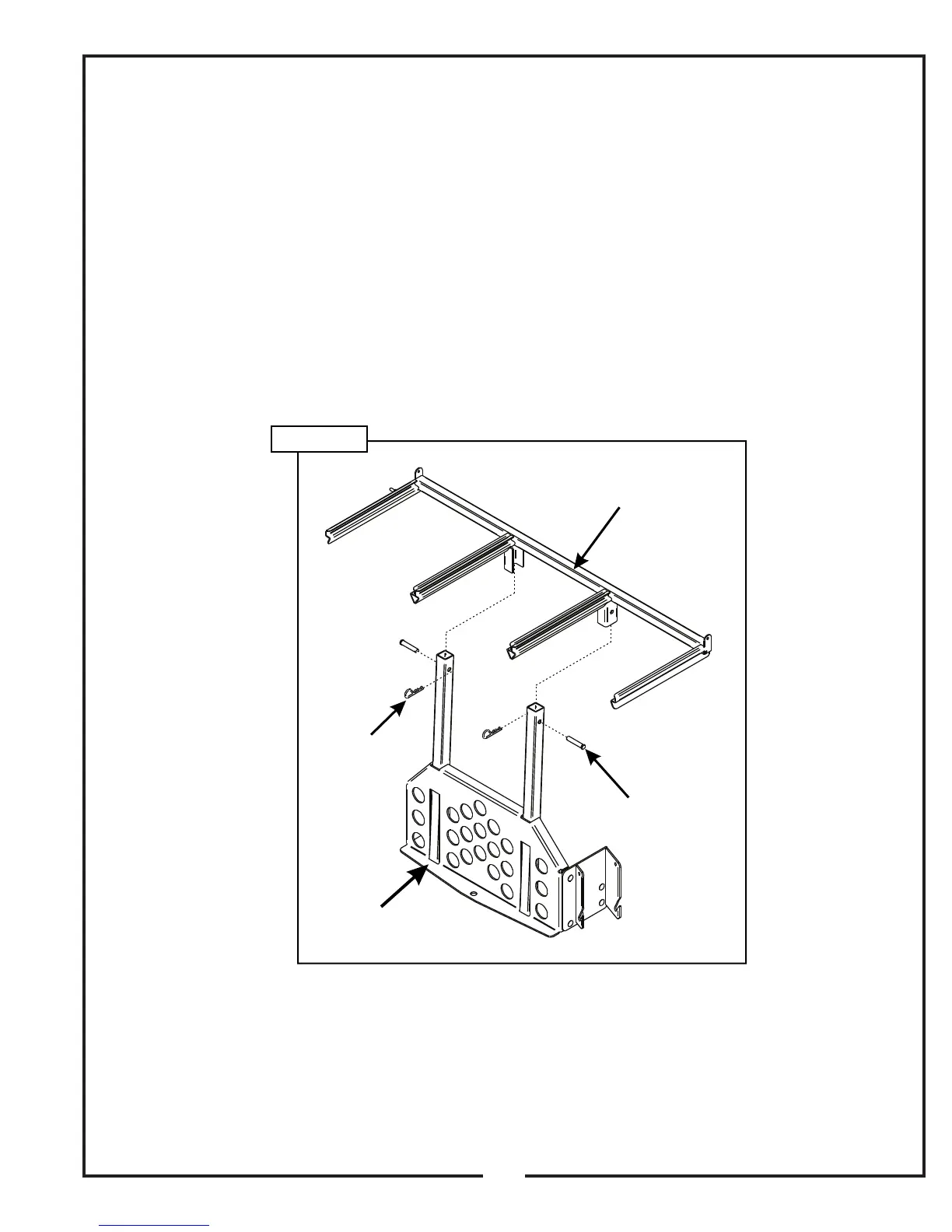

Upper Frame

Assembly

Hair Pin

Clip

Clevis Pin

Lower Mount

Assembly

Figure 2-9

Cub Cadet 59A30033150 User Manual
