Cub Cadet 59A30033150 User Manual

2
9
4
6
7
10
3
5
8
11
1
13
12
14
15
19
18
17
16
Item # Doc # Title Qty
1 V0022 PRO 3 BAGGER TOP 1
2 B0676 Hinge Stop Pl. 1
3 K0114 BLACK PLASTIC RIVET 14
4 C0069 DUST GUARD BRACE 1
5 K1030 1/4"-20 x 1-1/4" CARRIAGE BOLT 2
6 J4009 SHORT RUBBER STRAP W/ S HOOK 2
7 K0037 1/4" FLAT WASHER .75 OD x .314 ID x .060 T 2
8 K1128 1/4"-20 NYLOC NUT 2
9 C0026 GRASS DEFLECTOR 1
10 K0062 3/16" x 1-1/2" FENDER WASHER, Z 4
11 K1265 BLACK PANEL RETAINER 3
12 V1120 SCREEN 1
13 V1118 DUST GUARD 1
14 R0006 CUB CADET LOGO 1
15 R1057 2" x 4" Red Reflector Label 2
16 R1069 Warning - Turn Off Blower Label 1
17 R1065 Made In USA Label 1
18 R1054 Important Check Hoses 1
19 R1051 Warning - Use Hearing Protection 1
31

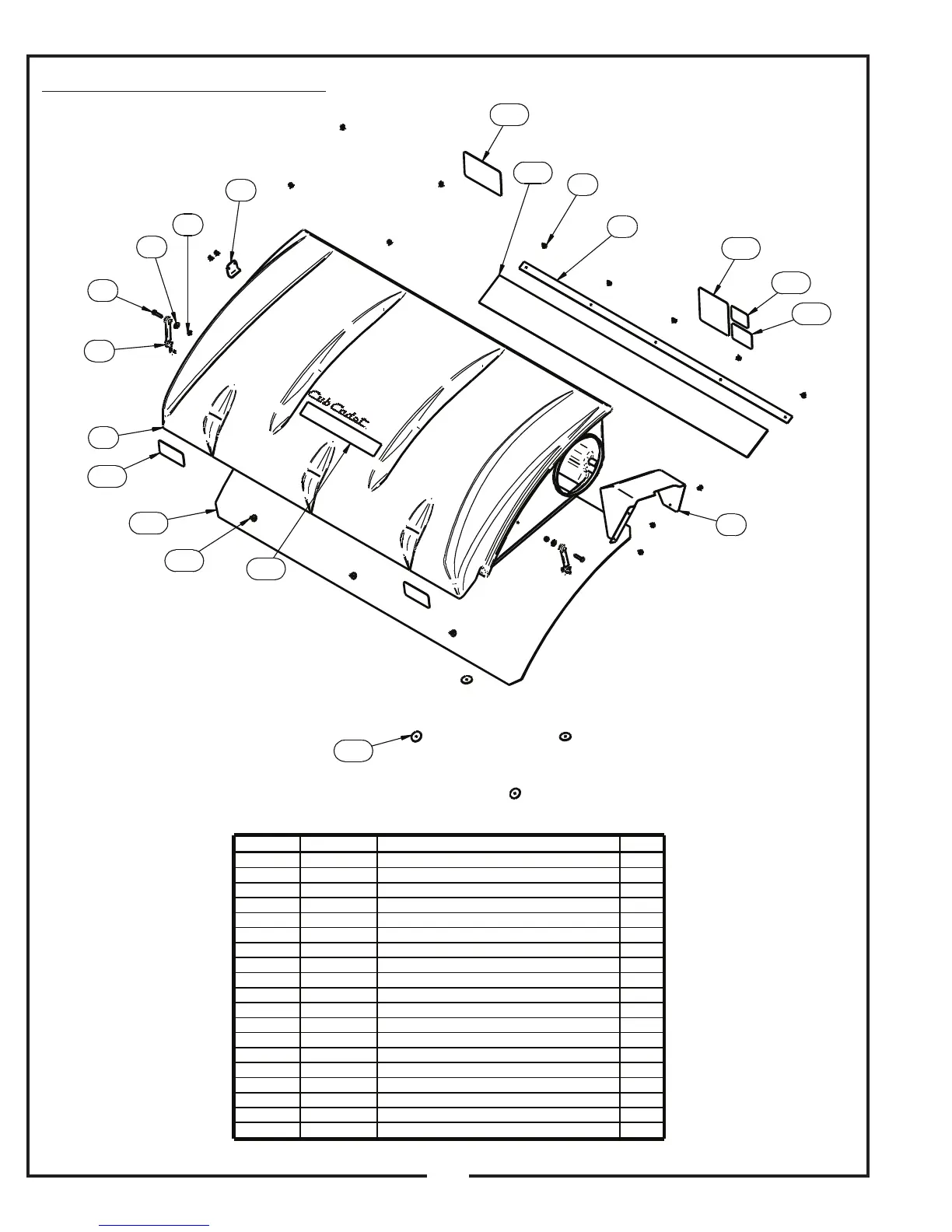

Exploded Parts View
A1139 Top Assembly

Cub Cadet 59A30033150 Specifications

General

Brand	Cub Cadet
Model	59A30033150
Category	Lawn Mower Accessories
Language	English
