2-1 Preparation Of Mower
NOTE: The mower deck PTO belt must be removed
from the electric clutch before continuing with the
installation. Refer to your Cub Cadet mower owner’s
manual for instructions on PTO belt removal.
From the underside of the engine, disconnect the wiring
harness attached to the electric clutch. Remove the bolt
and electric clutch from the mower. Refer to Figure 2-1a.
Remove the D-drive spacer using an arbor press or
equivalent. On removal, adjacent bearing OUTER race
must be supported or bearing damage may occur. Refer
to Figure 2-1b.
The engine pulley assembly must be installed using an
arbor press or equivalent. During installation, opposite
bearing inner race must be supported or bearing
damage may occur. Refer to Figure 2-1c.
Upon pressing the engine pulley to the clutch, replace
the completed assembly to the mower’s engine shaft to
fasten.
Fasten engine pulley assembly number 18 P#(A1109) to
the electric clutch using (1) 7/16”-20 x 3-3/4” HHCS
P#(K0350) and (1) 7/16” helical spring lock washer
P#(K0140). Torque the bolt to 55ft./lbs. Refer to
Figure 2-1d for reference.
NOTE: Replace the mower deck PTO belt removed at
the beginning of this section.
Remove the rear bumper and hardware from the mower
as shown in Figure 2-1e.
Section II - INSTALLATION FOR USE
PRESS

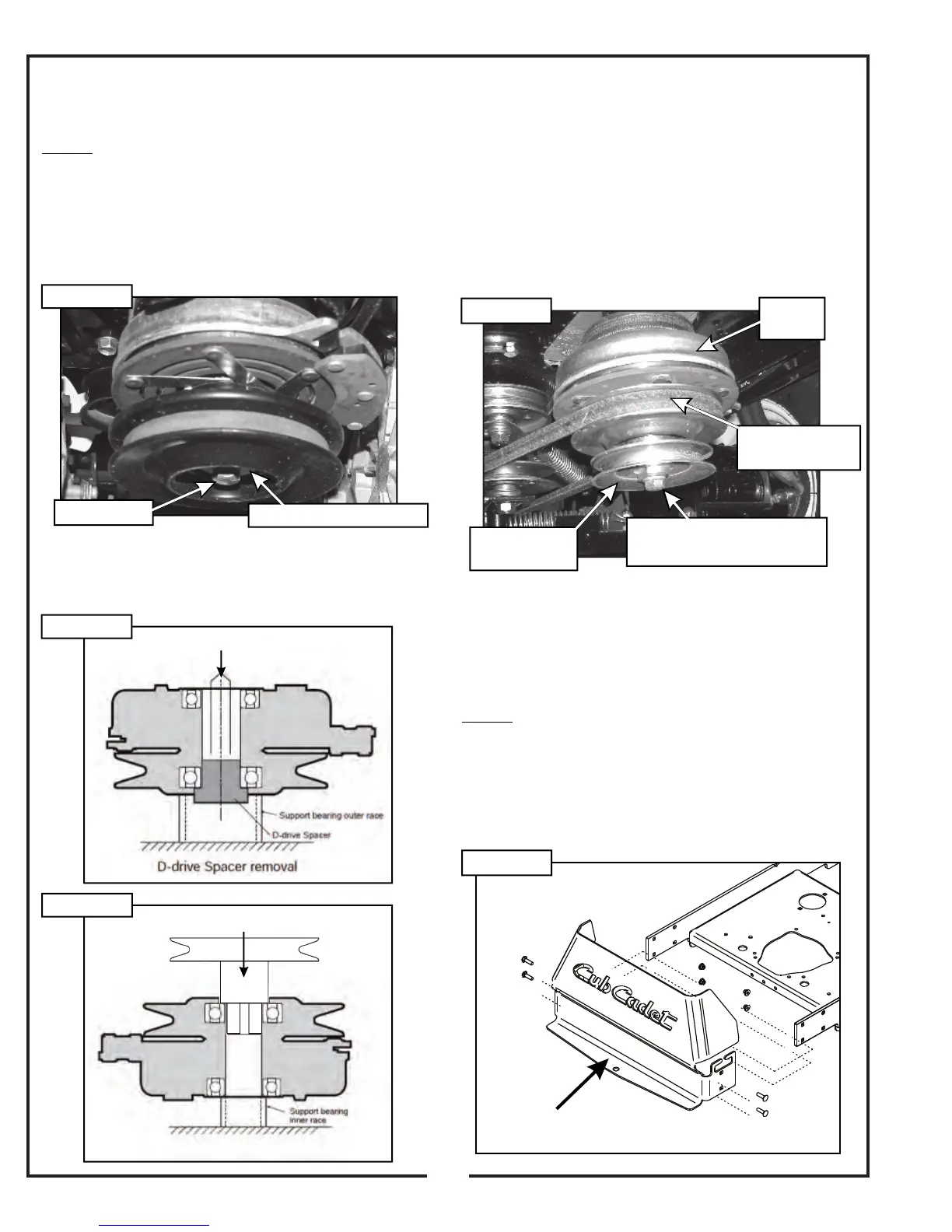

Figure 2-1a
Remove Bolt
Remove D Drive Spacer
Remove
Rear Bumper
(1) 7/16”-20 x 3-3/4” HHCS
(1) 7/16” Lock Washer
Electric
Clutch
Engine Pulley
Assembly
Figure 2-1d
Replace Mower
Deck PTO Belt
6
Figure 2-1b
PRESS
Engine Pulley Installation
Figure 2-1c
Figure 2-1e
