Cub Cadet 59A30033150 - 2-19 Weight Kit Installation

2-19 Weight Kit Installation
Cub Cadet 2012 Tank LZ Models - Installing a weight
kit is mandatory for safe operation of the collection
system. SZ models do not require a weight kit.

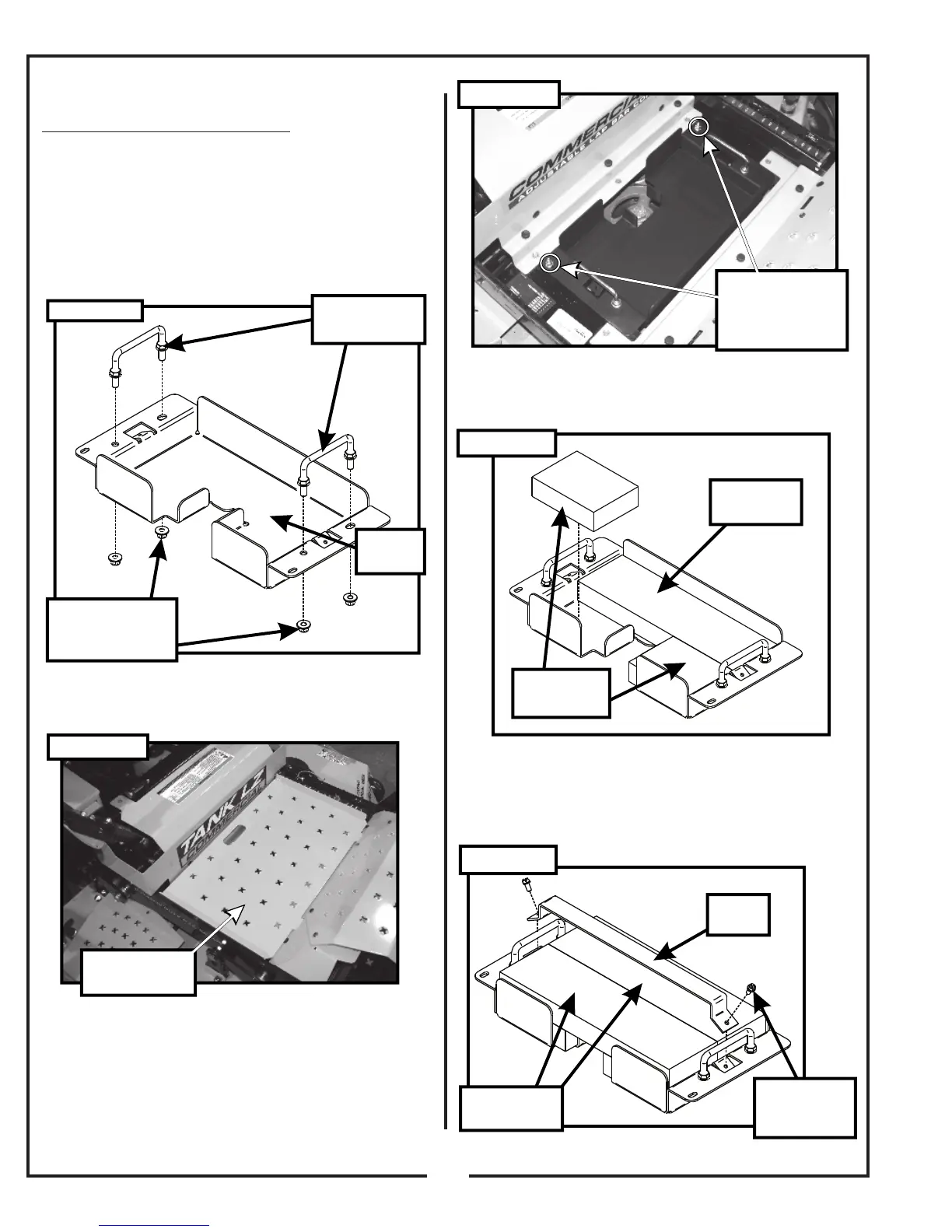

Completely thread (2) 3/8”-16 flange nuts P#(K1215)
onto (1) 3/8”-16 U-bolt P#(K0407). Repeat process again
to create two sets. Secure each U-Bolt, w/ attached
flange nuts, to the weight bracket P#(B0703) using (2)
3/8”-16 nylon flange locknuts P#(K2038) as shown in
Figure 2-19a.
Remove the mower’s pulley access cover shown in
Figure 2-19b.
Insert the weight bracket assembly into the recess as
shown in Figure 2-20c. Align the weight bracket’s
mounting holes to the mower’s frame and secure using
(2) 1/4”-20 x 3/4” HHCS P#(K1222) and (2) 1/4”-20
nylon flange locknuts P#(K2014). Insert the bolts from
the bottom of the weight bracket so that the nuts fasten
to the top of the bracket as shown in to Figure 2-19c.
29
(2) U-Bolts
w/ Flange Nuts
Weight
Bracket
(2) 3/8”-16 Nylon
Flange Locknuts
per U-Bolt
Remove Pulley
Access Cover
Figure 2-19b
Figure 2-19a
One at a time, add (1) large weight bar P#(B0704) to the
weight bracket, then (2) small weight bars P#(B0741).
Refer to Figure 2-19d.
Add the remaining (2) large weight bars P#(B0704) to
the weight bracket. Secure the weights to the weight
bracket with (1) weight strap P#(B0719) and (2) 1/4”-20
self-tapping screws P#(K0353). Refer to Figure 2-19e.
Replace mower’s pulley access cover when completed.
Figure 2-19c
(2) 1/4”-20 x 1”
HHCS
(2) 1/4”-20 Nylon
Flange Lock Nuts
Figure 2-19d
(2) Small
Weight Bars
(1) Large
Weight Bar
Weight
Strap
1/4”-20
Self-Tapping
Screw
Figure 2-19e
(2) Large
Weight Bars
