2-13 Boot To Mower Deck Installation
NOTE: The aluminum boot P#(E0020) is designed to fit
the 48”, 54” and 60” deck. In order to achieve a snug fit
from the boot to the mower deck, the boot must be
attached to the deck and positioned forward or back,
upwards or down depending on the deck size. Follow the
step-by-step instructions provided in this section
thoroughly and leave all the hardware loose until the
boot has been correctly positioned. Then tighten the
bolts only in the sequence specified.

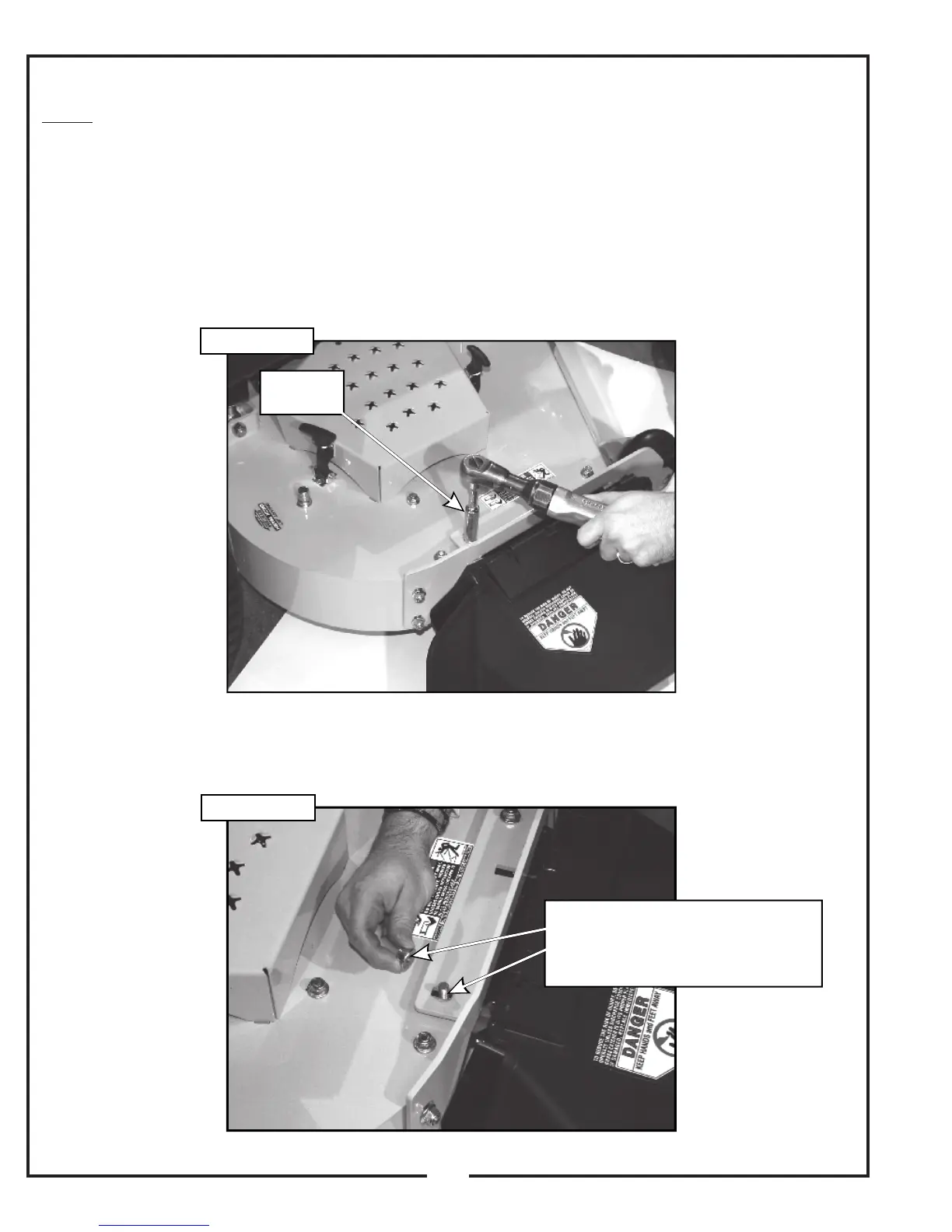

Step 1: Remove the 3/8”-16 carriage bolt and 3/8”-16 nut
shown in Figure 2-13a.
Step 2: Replace the hardware removed in Step 1 with (1)
3/8”-16 x 1-1/4” carriage bolt P#(K1183) and (1) 3/8”-16
nylon flange locknut P#(K2038) as shown in Figure 2-
13b. Do not tighten the hardware.
Remove
Hardware
Replace Existing Hardware With
(1) 3/8”-16 x 1-1/4” Carriage Bolt
and (1) 3/8”-16 Nylon Flange Locknut
Do Not Tighten The Hardware
16
Figure 2-13a
Figure 2-13b
To Next Page
