Cub Cadet 59A30033150 - Deck Baffle Installation

2-12 Deck Baffle Installation
A deck baffle must be installed on Select Cut model
decks.

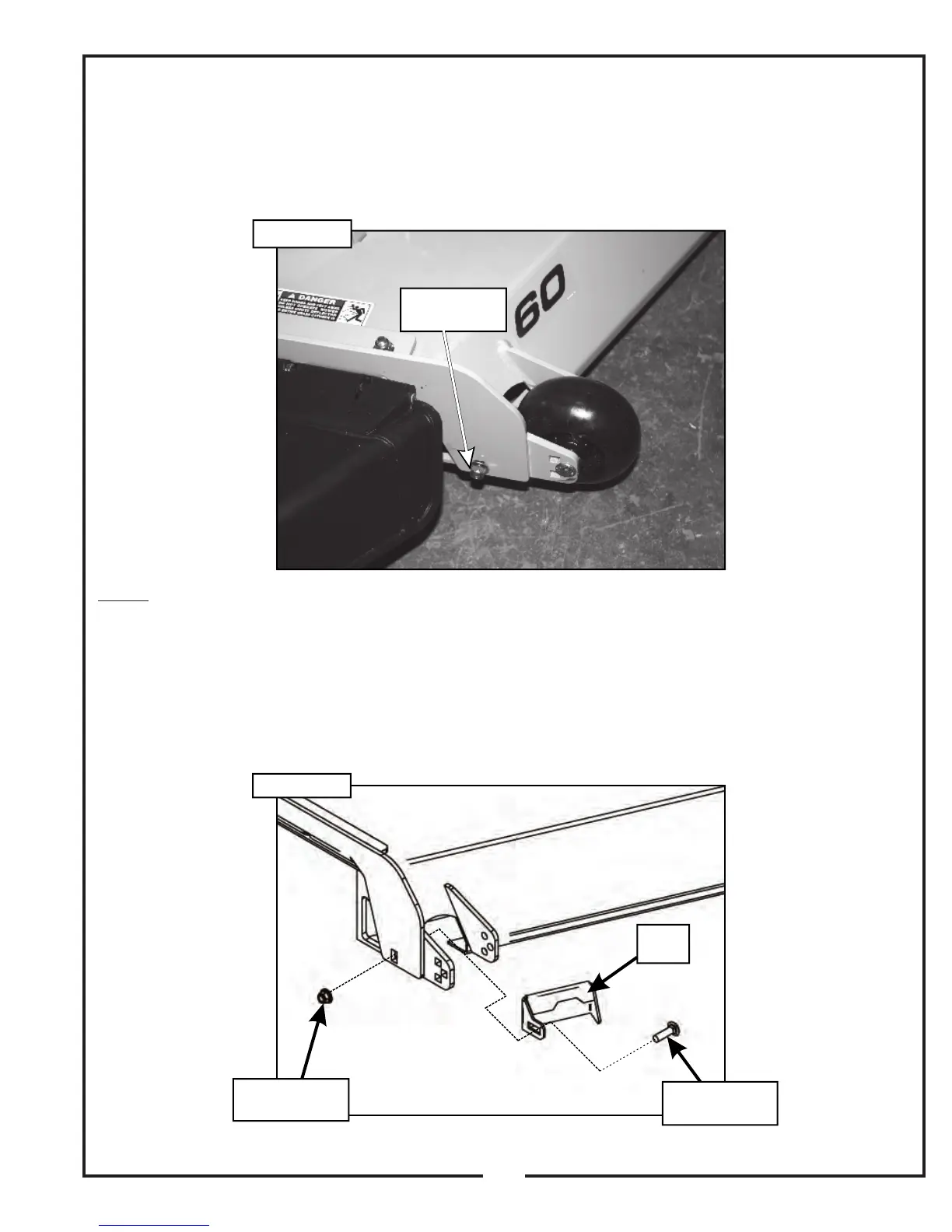

Remove (1) 3/8”-16 carriage bolt and (1) 3/8”-16 nut
from behind the front right caster shown in Figure 2-12a.
NOTE: Some hardware has been removed from Figure
2-12b for visual clarification.
Insert the deck baffle P#(B0660) as shown in Figure 2-
12b. Secure the deck baffle to the mower deck using (1)
3/8”-16 x 1-1/4” carriage bolt P#(K1183) and (1) 3/8”-16
nylon flange locknut P#(K2038).
Leave the hardware loose until the boot has been
installed.
Deck
Baffle
Figure 2-12b
3/8”-16 Nylon
Flange Locknut
3/8”-16 x 1-1/4”
Carriage Bolt
Figure 2-12a
Remove This
Hardware
15
