2-13 Boot To Mower Deck Installation
Continued
Step 4: Loosen, but DO NOT REMOVE the (1) 3/8”-16
carriage bolt and (1) 3/8”-16 nut shown in Figure 2-13e.
Step 5: Loosen, but DO NOT REMOVE the (1) 3/8”-16
carriage bolt and (1) 3/8”-16 nut shown in Figure 2-13f.
Loosen Hardware
Do Not Remove
Loosen Hardware
Do Not Remove
18

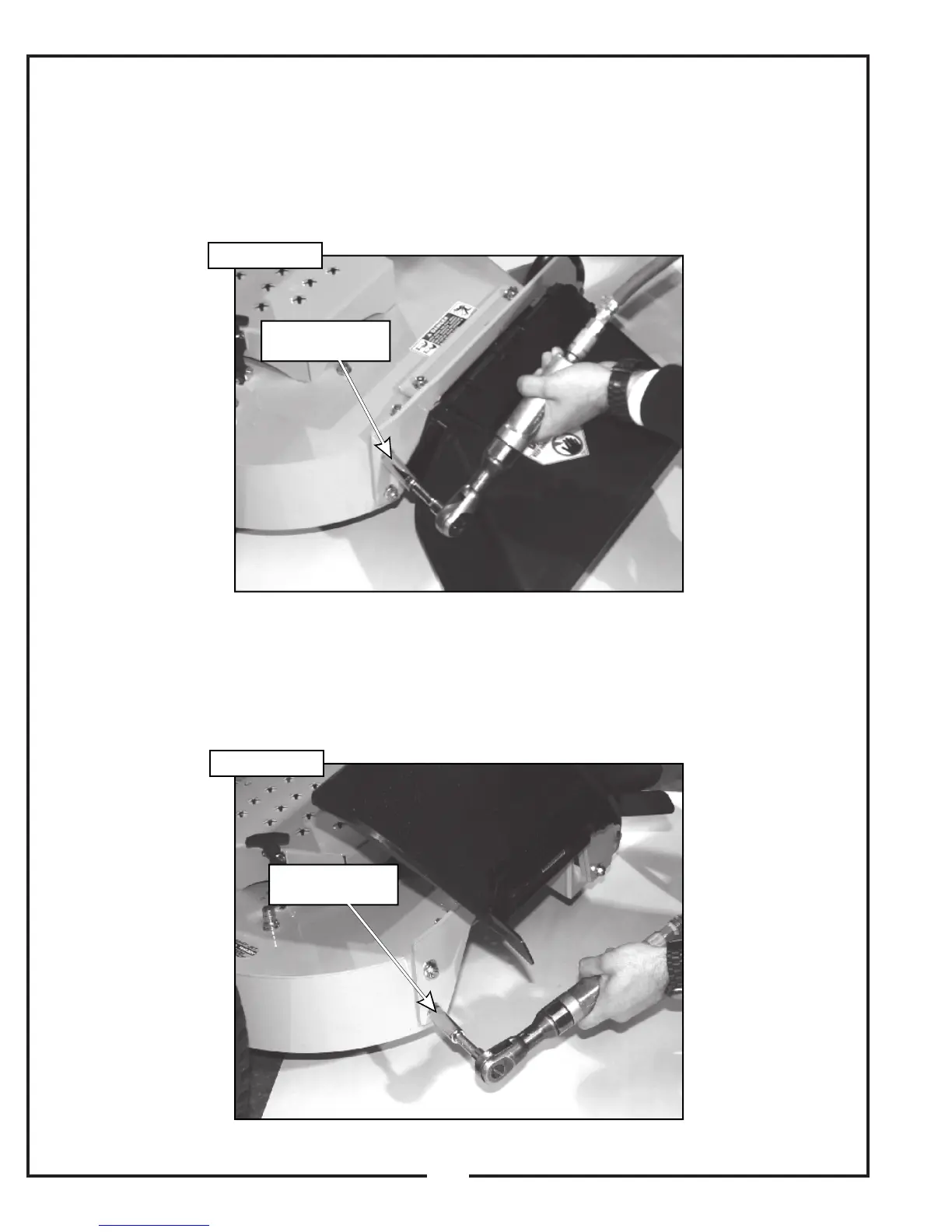

Figure 2-13e
Figure 2-13f
