Cub Cadet 7252 Parts Manual

-27-
REF.
NO.
PART
NUMBER DESCRIPTION QTY.
1 KM-11051-2092 Bracket ..................................... 2
2 KM-12004-2113 Valve, Intake ............................ 2
3 KM-12005-2100 Valve, Exhaust ......................... 2
4 KM-12009-2060 Retainer, Valve Spring ............. 4
5 KM-12011-2052 Collet ........................................ 8
6 KM-12016-2063 Arm, Rocker ............................. 4
7 KM-12032-2060 Tappet ...................................... 4
8 KM-13116-2074 Rod, Push ................................ 4
9 KM-16007-2052 Seat, Spring ............................. 4
10 KM-49078-2060 Spring, Valve ............................ 4
11 KM-49118-2138 Camshaft .................................. 1
12 KM-92049-2100 Seal, Oil .................................... 4
13 KM-92145-2085 Spring .......................................‘ 1
14 KM-92151-2165 Bolt, M6 .................................... 4
15 KM-92152-2077 Collar ........................................‘ 4
16 KM-92200-2128 Washer, 8.1 x 18 x .5 ............... 4
17 KM-130G0814 Bolt, Flanged ............................ 4
18 KM-311B0600 Nut, Hex ................................... 4
REF.
NO.
PART
NUMBER DESCRIPTION QTY.

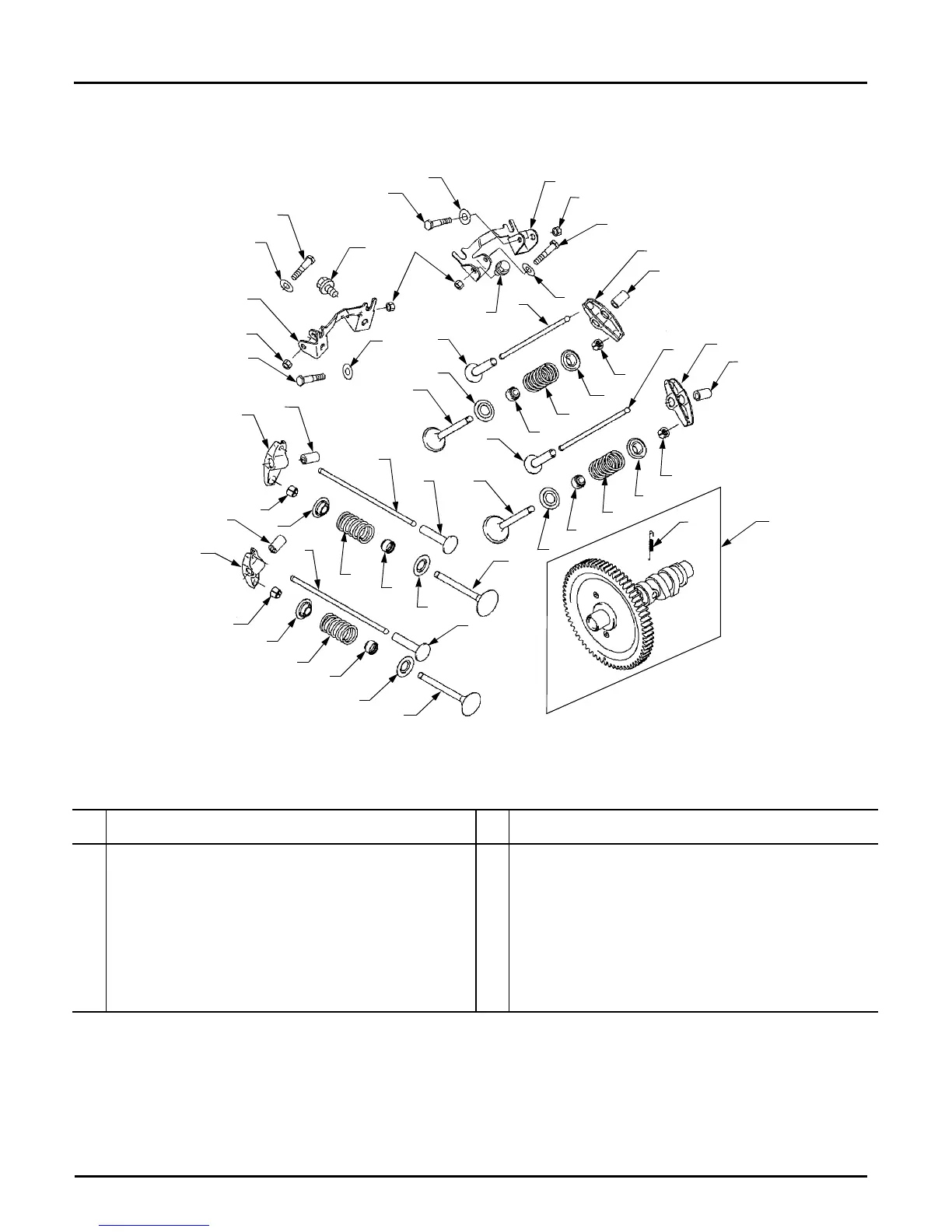

VALVES AND CAMSHAFT
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
1
2
4
4
4
5
5
5
6
7
7
7
8
8
8
9
9
9
10
10
10
12
12
12
14
14
14
15
15
15
16
16
16
17
18
18
3
6
6
