Cub Cadet 7252 Parts Manual

-7-
REF.
NO.
PART
NUMBER CODE DESCRIPTION QTY.
1 603-0663 Link Assembly, Feedback ......... 1
2 603-0664 Link Assembly, Input ................. 1
3 603-0776 Hub Assembly, HI-LO Shifter .... 1
4 703-3360 Link, Feedback .......................... 1
5 703-3610 Bracket, Lift Brace ..................... 1
6 703-3697 Bracket, Valve Mtg. ................... 1
7 703-3698 Handle, HI-LO Shifter ................ 1
8 703-3762 Bracket, Lift Mtg. ....................... 1
9 703-3763A Handle, Lift ................................ 1
10 710-0564 Screw, Hex Cap, .......................
1/4-20 x 2.75 GR5
3
11 710-0607 Screw, Hex Wash Hd. Tapp ......
5/16-18 x .5
7
12 710-3008 Screw, Hex Cap, .......................
5/16-18 x .75 GR5
2
13 711-1316 Ferrule, Feedback Adjustment .. 2
14 711-1612 Pin, .25 x 1.0 ............................. 1
15 711-1614 Link, Valve ................................. 1
16 712-0324 Nut, Hex Nylon Insert Lock ........
14-20 GR8
7
17 712-3004A Nut, Hex Flange Lock, ...............
5/16-18 GR5
2
18 712-3029 Nut, Hex Jam, 1/2-20 GR5 ........ 2
19 715-0120 Pin, Spirol, 3/16 x 1.0 ................ 1
20 718-3130 Valve, Hydaulic Lift .................... 1
21 723-3013 Washer, Friction, .515 x 1.5 x .12 1
22 731-3321 Grip, Handle .............................. 2
23 732-0330 Spring, Compression ................. 1
24 732-0499 Spring, Compression ................. 1
25 736-0185 Washer, Flat, .375 x .738 x .063 1
26 736-3022 Washer, Belleville, .....................
.53 x 1.375 x .06
2
27 738-0145 Screw, Shoulder, .......................
.5 x .835:3/8-16
1
28 741-0491 Bearing, Nylon Flange .5 ID ...... 2
29 747-3394 Rod, Feedback .......................... 1
REF.
NO.
PART
NUMBER CODE DESCRIPTION QTY.

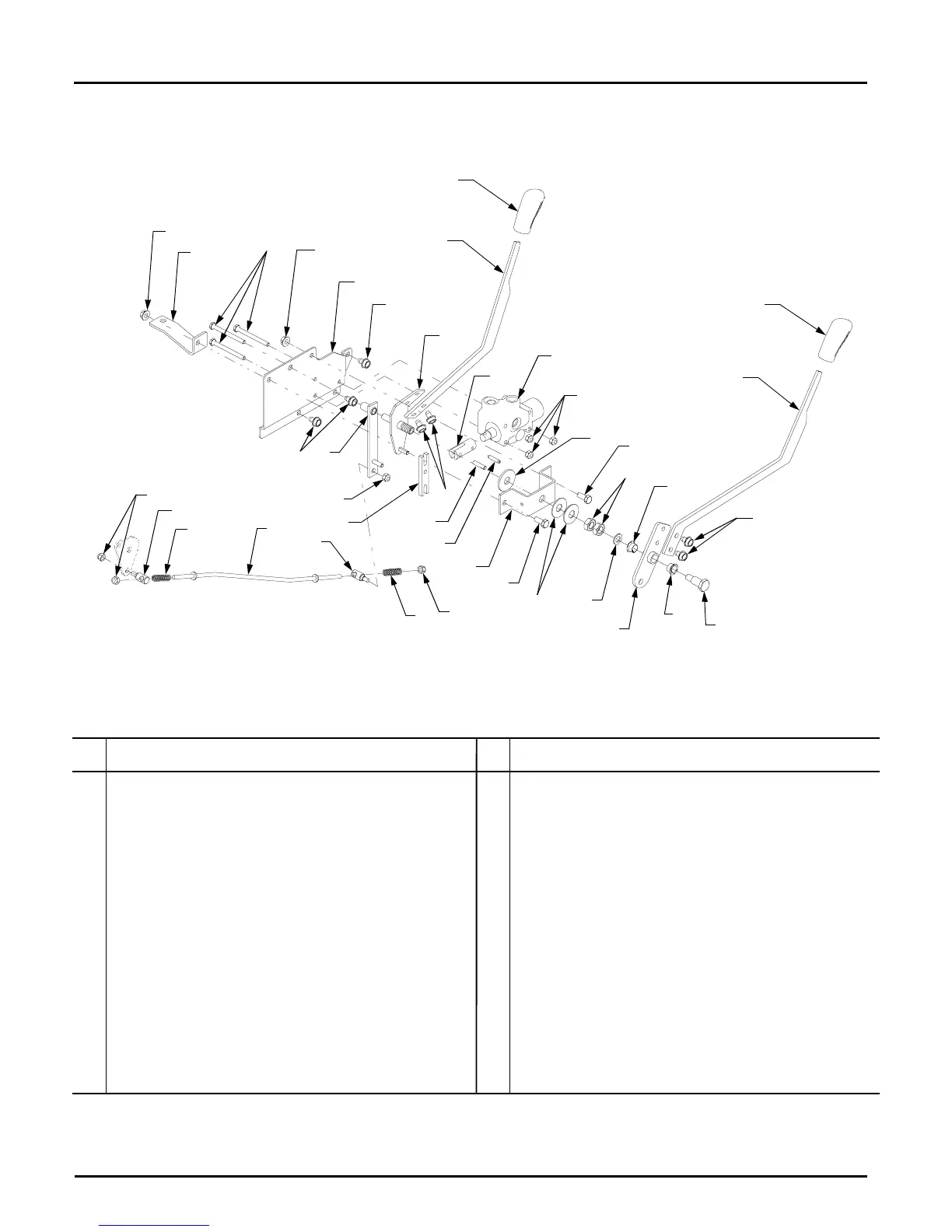

LIFT VALVE AND POSITION CONTROL
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
11
11
11
12
13
17
16
16
16
22
28
