Cub Cadet 7252 Parts Manual

-28-
REF.
NO.
PART
NUMBER DESCRIPTION QTY.
1 KM-11009-2566 Gasket, Drain Plug ................... 2
2 KM-13107-2281 Shaft, Oil Pump ........................ 1
3 KM-13280-2061 Holder, Oil Pump ..................... 1
4 KM-14091-2065 Cover, Oil Pump ...................... 1
5 KM-16115-2126 Cap, Oil Filler ........................... 1
6 KM-16154-1075 Rotor, Pump Outer ................... 1
7 KM-16154-1076 Rotor, Pump Inner ................... 1
8 KM-32153-20769H Pipe, Oil Gauge ....................... 1
9 KM-49065-2078 Filter, Oil .................................. 1
10 KM-49065-2082 Filter, Oil Suction ..................... 1
11 KM-52005-2132 Gauge, Oil ................................ 1
12 KM-59051-2354 Gear, Spur, 33T ....................... 1
13 KM-99969-1395 Drain, Oil .................................. 1
14 KM-92042-014 Pin ............................................ 2
15 KM-92066-2099 Plug, Drain ............................... 2
16 KM-92144-2053 Spring ....................................... 1
17 KM-130G0616 Bolt, Flanged ............................ 3
18 KM-130G0625 Bolt, Flanged ............................ 2
19 KM-600A1300 Ball, Steel ................................. 1
20 KM-670B2010 O-Ring ...................................... 1
21 KM-670B3025 O-Ring ...................................... 1
REF.
NO.
PART
NUMBER DESCRIPTION QTY.

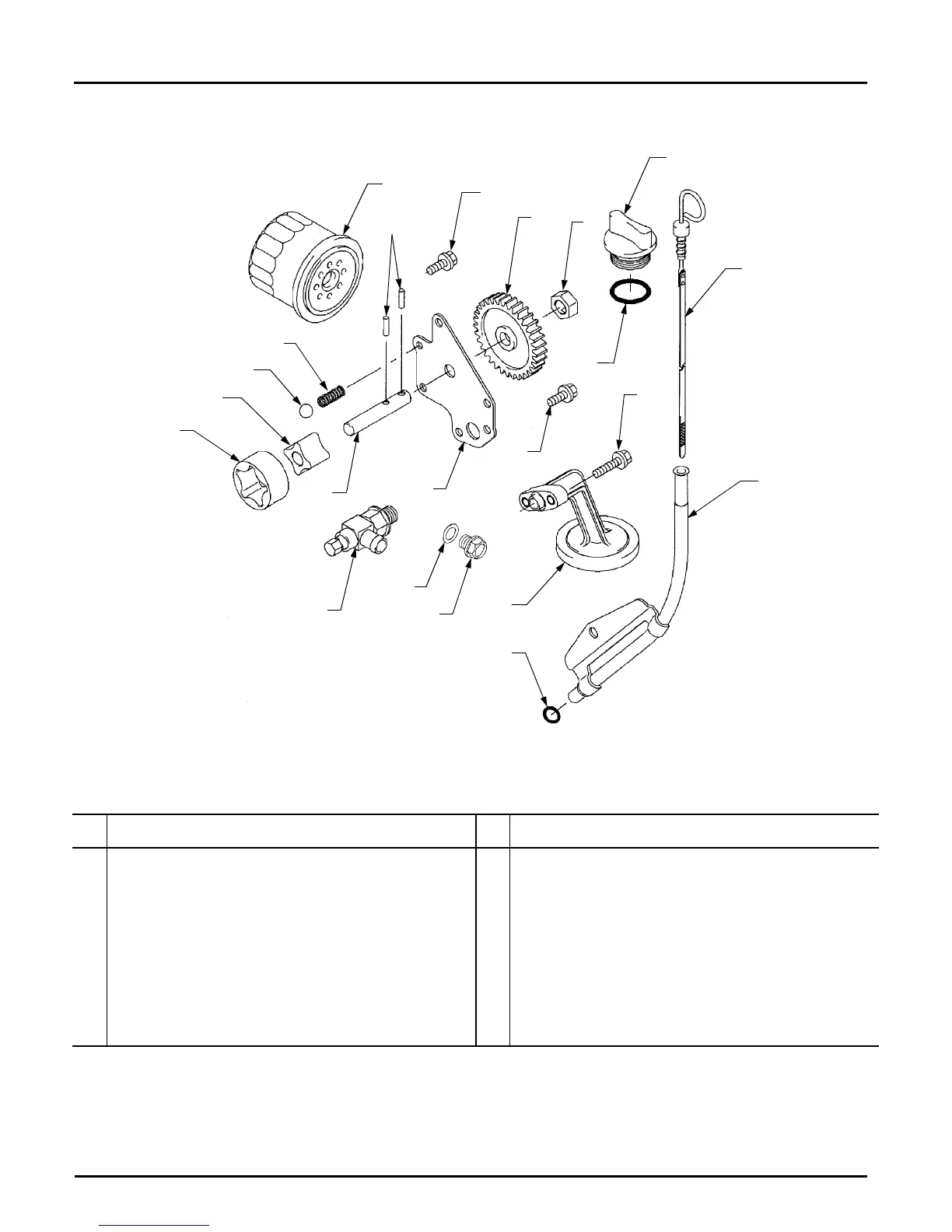

LUBRICATION
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
17
