REF.

NO.

PART

NUMBER DESCRIPTION QTY.

1 KM-11009-2766 Gasket ..................................... 1

2 KM-11052-2068 Bracket ..................................... 1

3 KM-14083-2055 Cover, Flywheel ....................... 1

4 KM-21066-2079 Regulator, Voltage ................... 1

5 KM-21121-2090 Coil, Ignition, No. 1 .................. 1

6 KM-21121-2091 Coil, Ignition, No. 2 .................. 1

7 KM-21193-2177 Flywheel Assembly .................. 1

8 KM-26004-1093 Fuse ......................................... 1

9 KM-26030-2326 Harness (Includes Ref. No. 8) . 1

10 KM-27010-2170 Switch ...................................... 1

11 KM-27010-2182 Switch ...................................... 1

12 KM-590331-2127 Coil, Charging .......................... 1

13 KM-92009-2273 Screw ....................................... 4

14 KM-92022-2104 Washer .................................... 2

15 KM-92027-1568 Collar, 8.3 x 11.5 x 9 ................ 4

16 KM-92037-2101 Clamp ...................................... 1

17 KM-BPR2ES Plug, Spark .............................. 2

18 KM-92072-1195 Band ........................................ 1

19 KM-92151-2097 Bolt, 12 x 30 ............................. 1

20 KM-92170-2060 Clamp ...................................... 4

21 KM-92171-2060 Clamp ...................................... 1

22 KM-92200-2119 Washer, 12.2 x 40 x 3.0 ........... 1

23 KM-130G0520 Bolt, Flanged ............................ 4

24 KM-130G0630 Bolt, Flanged ............................ 2

25 KM-130G0812 Bolt, Flanged ............................ 2

26 KM-130G0816 Bolt, Flanged ............................ 2

27 KM-130G0820 Bolt, Flanged ............................ 4

28 KM-214B0510 Screw, Pan .............................. 1

29 KM-241B0406 Screw, Pan .............................. 1

30 KM-510A5100 Key, Woodruff .......................... 1

REF.

NO.

PART

NUMBER DESCRIPTION QTY.

ELECTRICAL

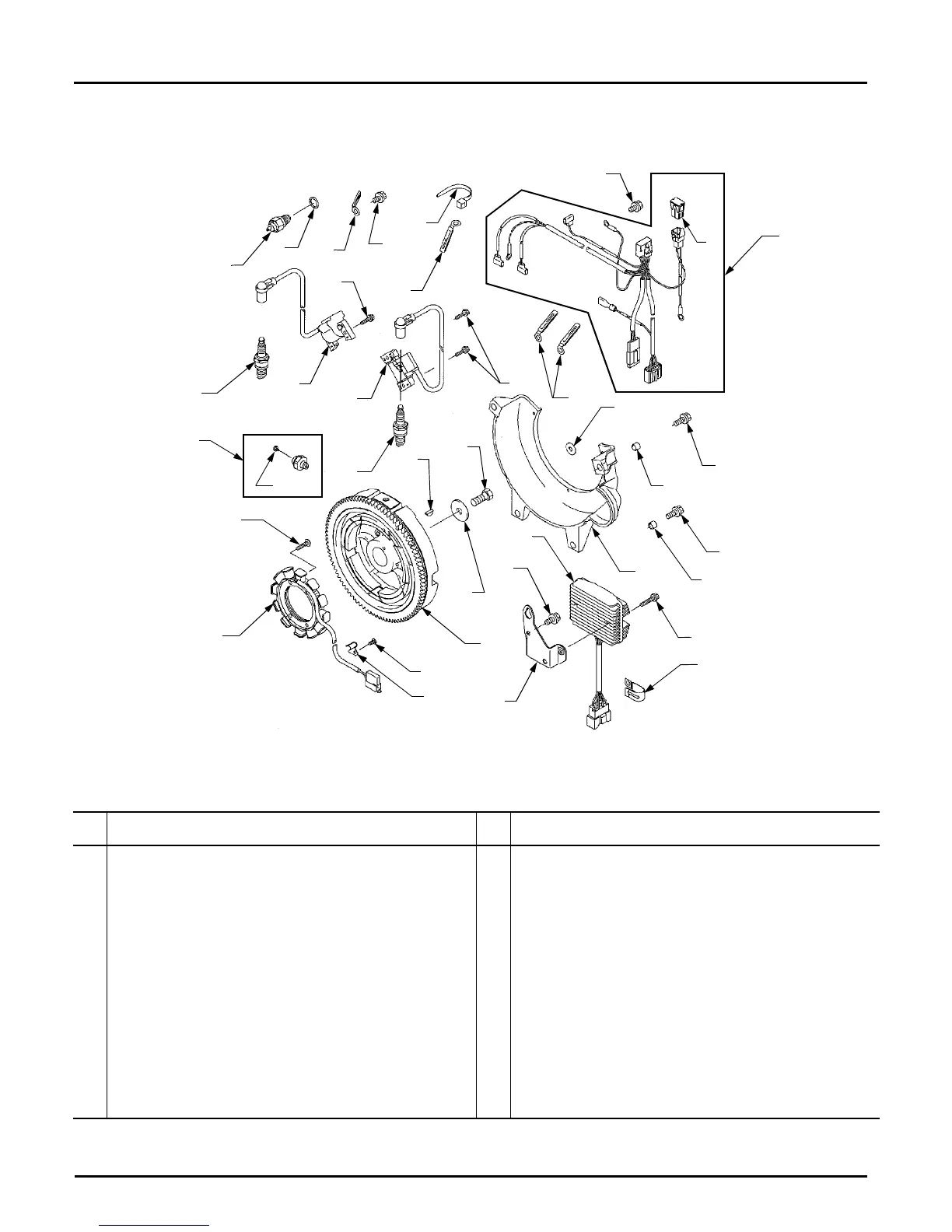

Cub Cadet 7252 Parts Manual
