Cub Cadet 7252 Parts Manual

-5-
REF.
NO.
PART
NUMBER CODE DESCRIPTION QTY.
1 603-0721 Pin, Pivot Axle ........................... 1
2 603-0735 0637 Plate, Steering Cylinder Mtg. .... 1
3 603-0908 0637 Spindle Assembly, Steering LH 1
4 603-0909 0637 Spindle Assembly, Steering RH 1
5 619-3078
741-3116
Hub Assembly ...........................
Bearing, Ball ...........................
2
4
6 703-3506 Plate, Pivot Axle Mtg. ................ 2
7 710-1843 Screw, Hex Cap, .......................
M12-1.75 x 25 GR8
4
8 710-3067 Screw, Hex Cap, .......................
1/2-13 x 1.75 GR5
8
9 710-3118 Screw, Hex Cap ........................
3/8-16 x 1.0 GR5
1
10 710-3181 Screw, Hex Cap ........................
1/2-13 x 1.5 GR5
6
11 712-3005 Nut, Hex Flange Lock, ...............
3/8-16 GR5
1
12 712-3016 Nut, Hex Insert Lock 5/8-11 GR5 4
13 712-3083 Nut, Hex Insert Lock, 1/2-13 GR8 12
14 712-3103 Nut, Hex Flange Lock, M12 x1.75 2
15 712-3104 Nut, Hex, M12 x 1.75 RH Thrd .. 1
16 712-3105 Nut, Hex, M12 x 1.75 LH Thrd ... 1
17 716-0116 Ring, Snap, 1.25 Dia Shaft ........ 2
18 717-3502 Cylinder, Steering ...................... 1
19 719-3158 Bracket, Axle Mtg. ..................... 2
20 719-3163 Axle, Pivot ................................. 1
21 721-0526 O-Ring, 1.374 x .139 ................. 2
22 723-0462 Ball Joint, RH Thrd .................... 1
23 723-0463 Ball Joint, LH Thrd ..................... 1
24 736-0746 Washer, Flat, .66 x 1.94 x .25 ... 2
25 736-0748 Washer, Flat, 1.25 x 1.94 x .063 4
26 736-0869 Washer, Flat, 1.25 x 2.25 x .040 2
27 737-3000 Fitting, Lube, 3/6 Drive .............. 5
28 741-3110 Bearing, Sleeve, 1.25x1.5x1.25 4
29 741-3115 Bearing, Thrust, 1.25 x 1.94 x .78 2
30 747-3421 Rod, Tie ..................................... 1
31 750-0499 Spacer, .501 x .75 x .78 ............ 2
REF.
NO.
PART
NUMBER CODE DESCRIPTION QTY.

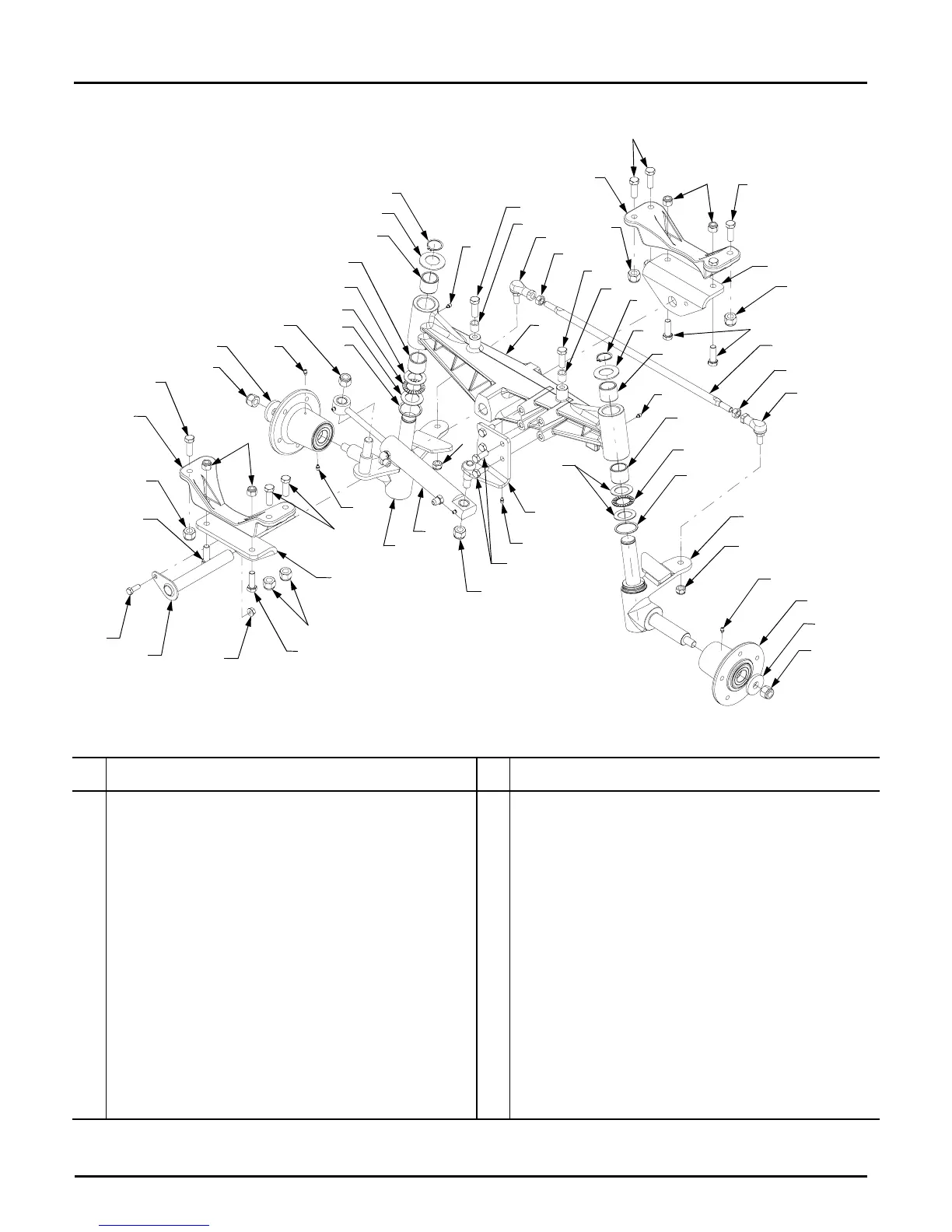

FRONT AXLE
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
5
6
8
8
10
10
12
12
12
13
13
13
13
19
24
25
27
27
27
28
13
10
8
17
26
28
27
21
25
29
28
31
10
14
