Installation and Removal of Engine Parts 2
19

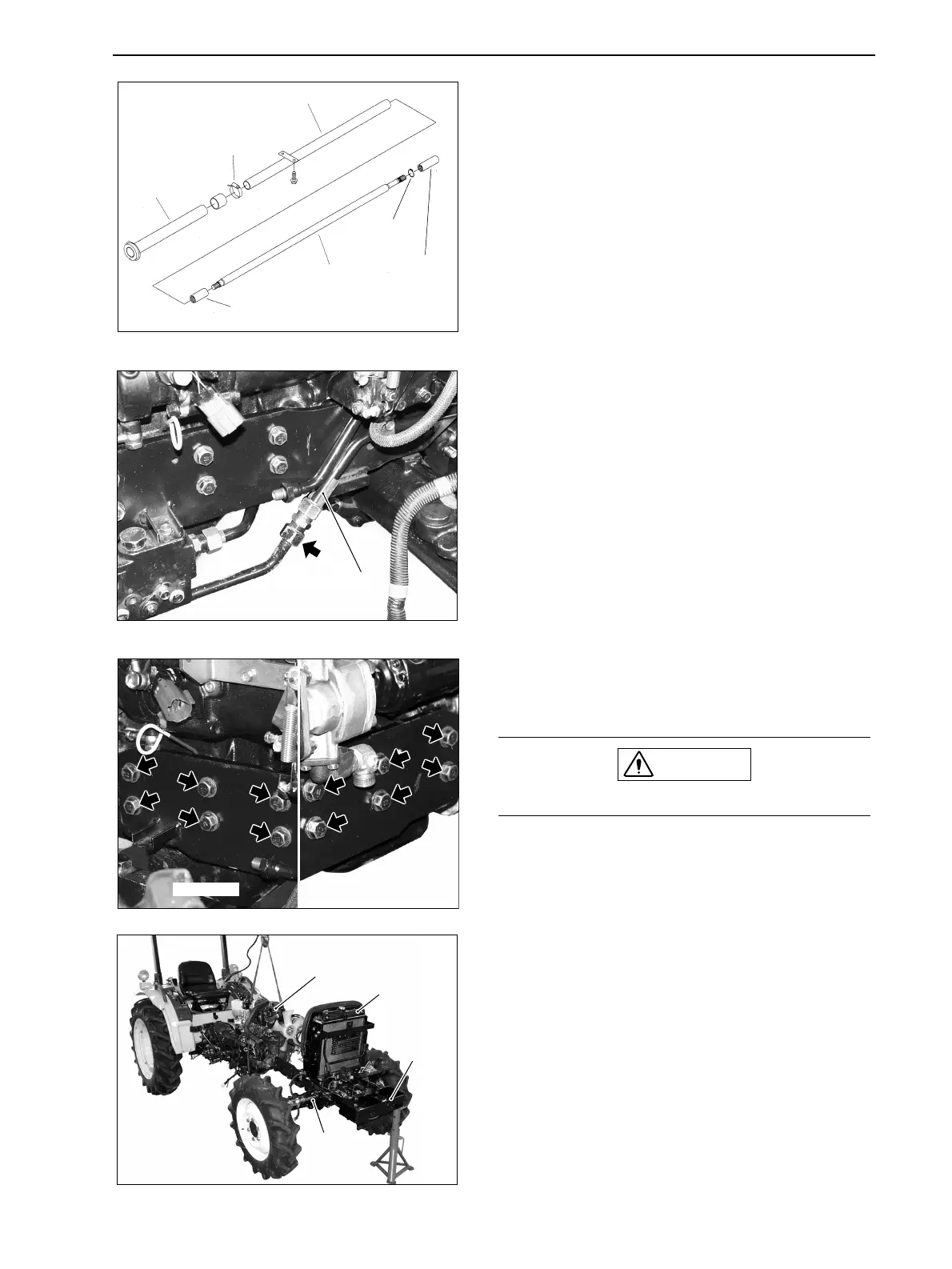

30. Remove the 4WD shaft.
31. Disconnect the pipe for HST oil cooler.
32. Hang the engine assembly with chain block and
remove the mounting bolts for chassis (engine RH
and LH).
33. Remove the front axel, chassis and radiator together
from the engine.
CAUTION
Hang the engine in balance.
GZ3W21-031
Cover
Cover
Hoseclip
Rearjoint
Frontjoint
4WDShaft
C-ring
PipeforHSToil
cooler
GZ3W21-032
EngineRH
EngineLH
GZ3W21-033
Engineassembly
Radiator
Chassis
Frontaxel
GZ3W21-034
